TurboChef TORNADO 2 Service Manual

IR Element and Catalytic Converter Parts
116.
101312
Snap Ring
117.
102449 Washer, Shim
118.
NGC-3003 IR Element
119.
NGC-1116 Shield, Microwave
120. 101688 Screw, #8 x 1/2” Sht Metal PTH
121. NGC-1030 Clip, Catalytic Converter
(Non-SBK)
NGC-1233 Clip, Catalytic Converter
(SBK)
122.
NGC-1012 Catalytic Converter

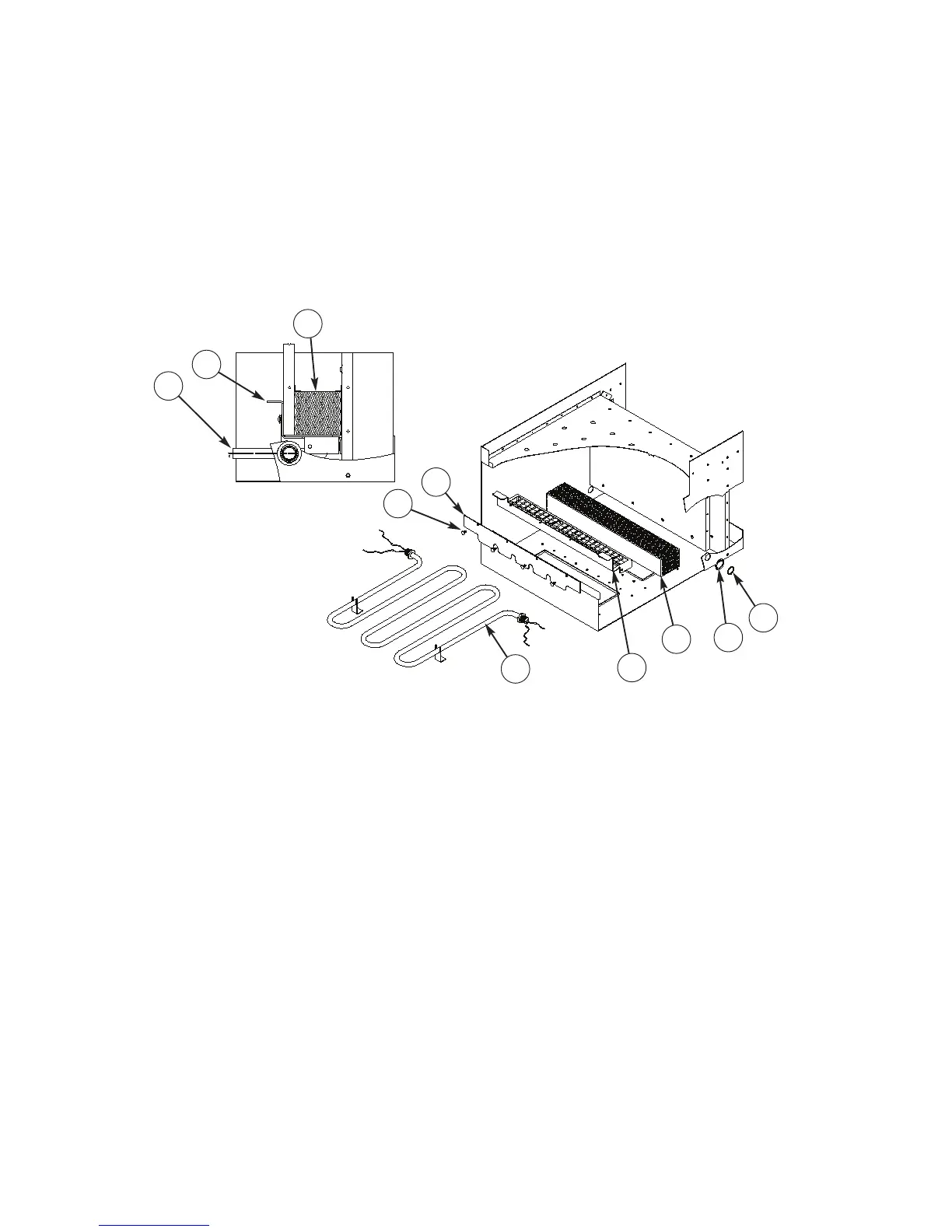

FIGURE 39: IR ELEMENT AND CATALYTIC CONVERTER PARTS AND ASSEMBLY
Chapter 8: IR Element and Catalytic Converter - Page 52
116
x4
117
118
119
120
121
122
119
118
122
76
SERVICE PARTS AND ILLUSTRATIONS
Wire Harness Replacement P/N
Low Voltage Harness
123.
100185 Old Switch Setup
NGC-1418 New Switch Setup
Line Voltage Harness
124. NGC-1150-1 North America
NGC-1150-2 UK, Ireland, Brazil
NGC-1150-3 Eu, Asia, Pacific, Au, Japan
Magnetron Wire
125. 100186 All NGC Ovens
Power Cord
126. 100187 USA
100194
NGC ED - Europe, Asia, Pacific
100195
UK, Ireland, Brazil
103187
NGC EW- Europe, Asia, Pacific
103195 Australia
NGC-1383 Japan 3Ph
NGC-1390 Japan 1Ph
