TYT TH-9000D User Manual

54
4. When the alarm cable or is removed from the DATA jack or cut by improper sequence, the
alarm function enable and will alarm as programmed. In alarming,the transceiver will stop
alarm once receiving a matching signal. And alarm again when a matching signal disappeared.
5. Restart radio to cancel anti-theft alarming.Reconnect with alarm cable and turn off radio,
the system will return to alarm mode.
3.5mm stereo mini plug
Master side Slave side
P3 P4 P5
P1 P2
TX
DATA
PWR
P3 P4 P5
P1 P2
TX
DATA
PWR

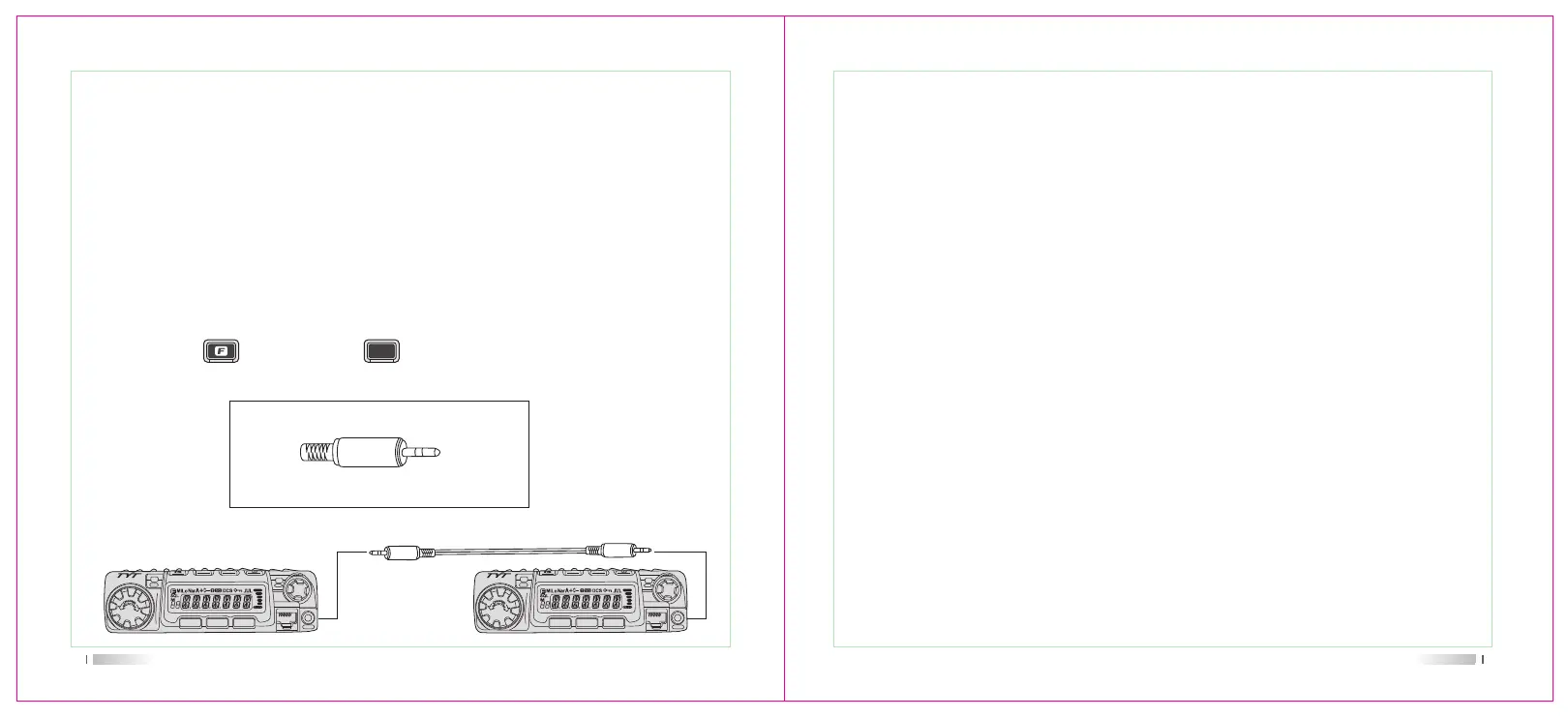

Cable Clone
This feature will copy the programmed data and parameters in the master unit to slave units.
It copies the parameters and memory program settings.
1. Use optional cloning cable, connect the cable between the data jacks on both master
and slave.
2. Press and hold key, then press key to enter into cloning mode, LCD displays
"CLONE".
Master/Slave stereo plug,3.5mm plug
GND DATA TX/RX
P1
55
3. Press master unit's [PTT] key, LCD displays "SD XXX", "XXX" indicates data volume in
transmitting. Slave unit displays "LD XXX", "XXX" indicates received data volume. When
the transmission is successfully finished, the master and slave unit both display "PASS".
Turn off the power, disconnect the cable and repeat step 2 to step 3 operations to clone
the next slave unit.
NOTE: If the data is not successfully transmitted, turn off both units, make sure the cable
connection is correct and repeat the entire operation from the beginning.
