Mobile installation
Initial Installation
To install the transceiver, select a safe, convenient location inside your vehicle that
minimizes danger to your passengers and yourself while the vehicle is in motion. Consider
installing the unit at an appropriate position so that knees or legs will not strike it during
sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from
direct sunlight.

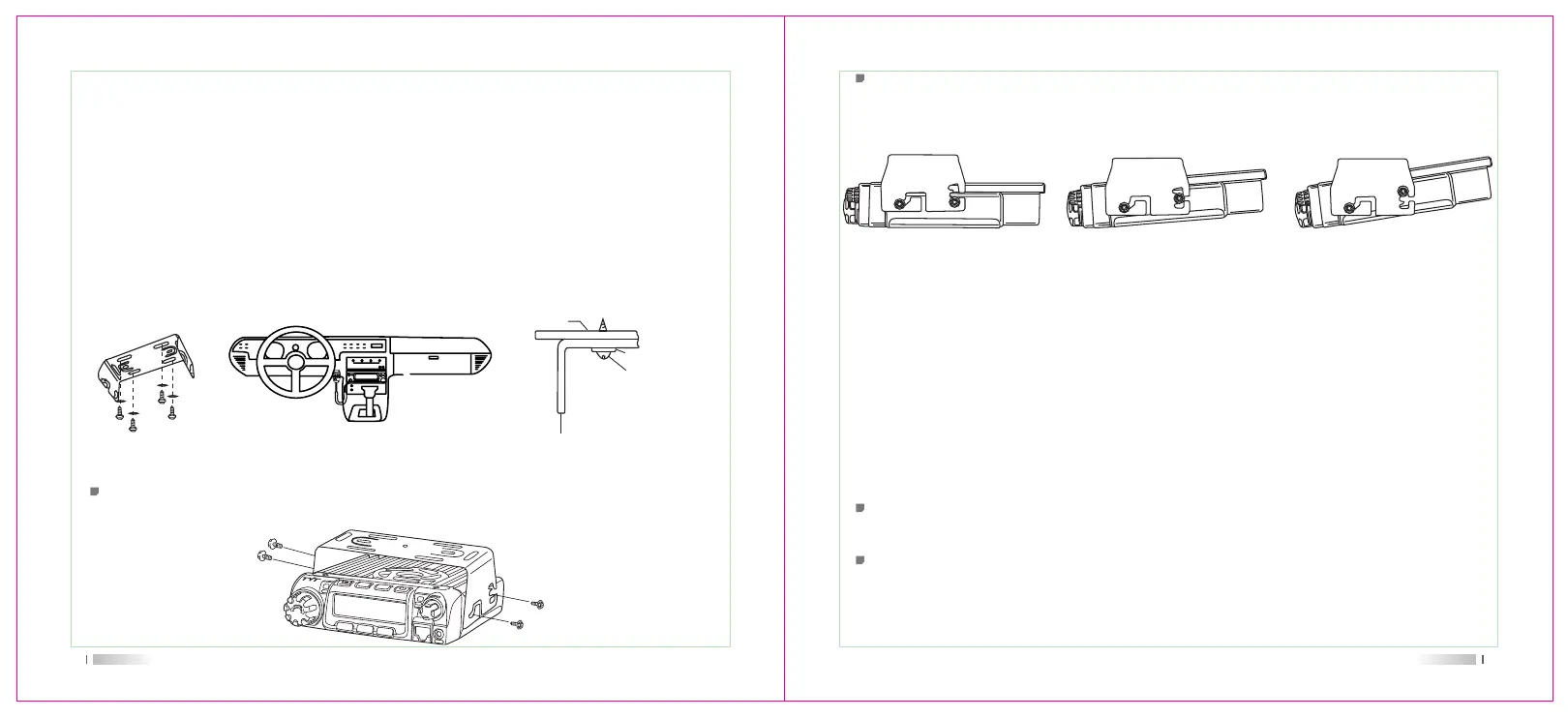

1. Install the mounting bracket in the vehicle using the supplied self-tapping screws (4pcs)
and flat washers (4pcs),
2. Position the transceiver, then insert and tighten the supplied hexagon SEMS screws.
Double check that all screws are tightened to prevent vehicle vibration from loosening
the bracket or transceiver.
Car body
Mounting bracket
Tapping screw
(M5x20mm)
Washer (M5)
P
3
P
4
P
5
P
1
P
2
DATA
PWR
TX
05
Determine the appropriate angle of the transceiver, using the 3 screw hole positions on
the side of the mounting bracket.
DC Power Cable Connection
NOTE: Locate the power input connector as close to the transceiver as possible.
Mobile Operation
The vehicle battery must have a nominal rating of 12V. Never connect the transceiver to
a 24V battery. Be sure to use a 12V vehicle battery that has sufficient current capacity. If the
current to the transceiver is insufficient, the display may darken during transmission, or
transmitting output power may drop excessively.
1. Route the DC power cable supplied with the transceiver directly to the vehicle's battery
terminals using the shortest path from the transceiver.
We recommend you do not use the cigarette lighter socket as some cigarette lighter
sockets introduce an unacceptable voltage drop.
The entire length of the cable must be dressed so it is isolated from heat, moisture, and
the engine secondary (high voltage) ignition system/ cables.
2. After installing cable, in order to avoid the risk of damp, please use heat-resistant tap to
tie together with fuse box. Don't forget to reinforce whole cable.
