ZED-F9P-Integration manual
The dimensions of the tapes for ZED-F9P are specified in Figure 51 (measurements in mm).

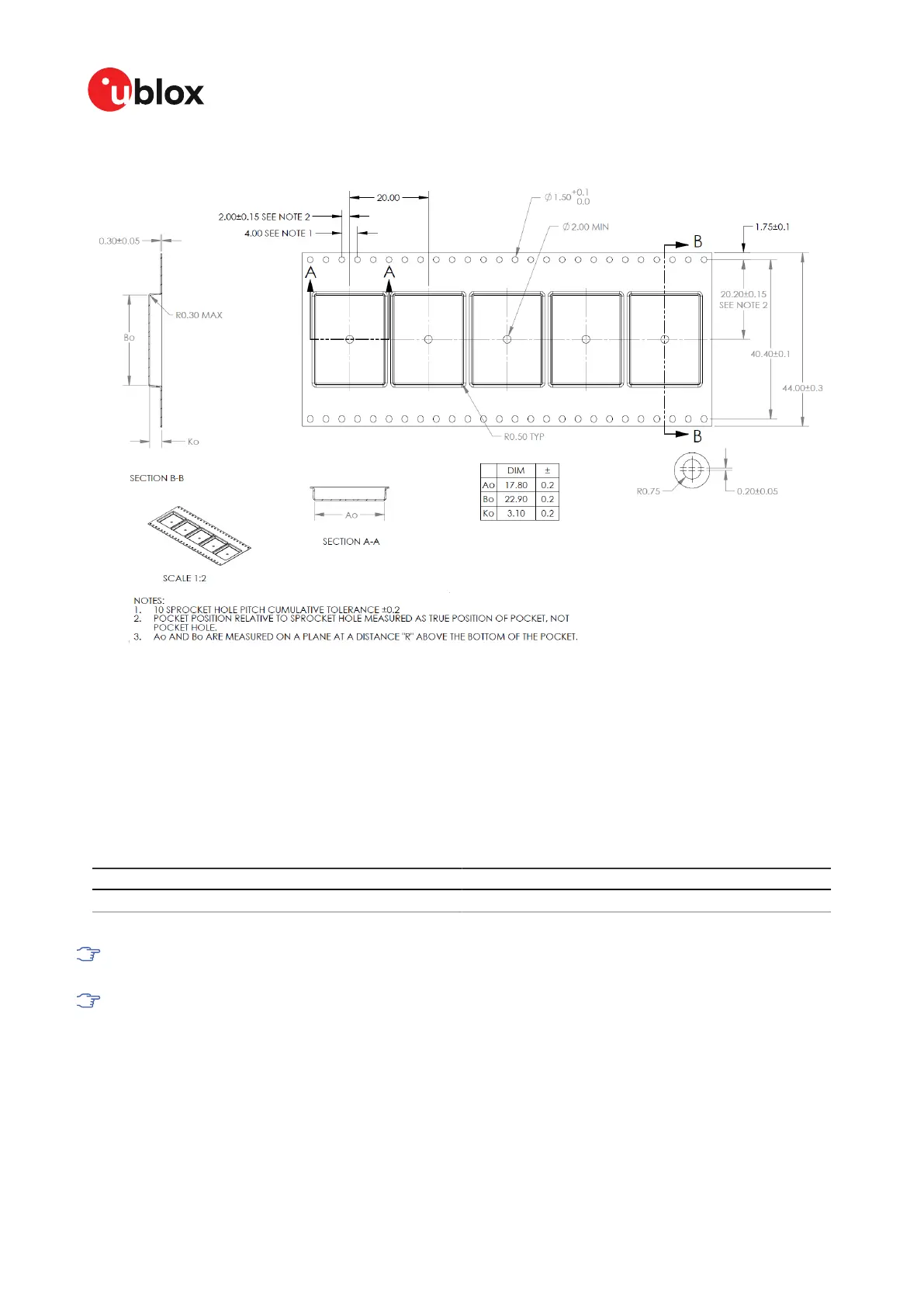

Figure 51: ZED-F9P tape dimensions (mm)
5.4 Reels
The ZED-F9P high precision receiver GNSS modules are deliverable in quantities of 250 pieces on a
reel. The ZED-F9P high precision receiver receivers are shipped on Reel Type B, as specified in the
u-blox Package Information Guide. See the u-blox Package Information Guide [3].
5.5 Moisture sensitivity levels
The moisture sensitivity level (MSL) for ZED-F9P is specified in the table below.
Package MSL level
LGA 4
Table 32: MSL level
For MSL standard see IPC/JEDEC J-STD-020, which can be downloaded from
www.jedec.org.
For more information regarding moisture sensitivity levels, labeling, storage and drying, see
the u-blox Package Information Guide [3].
UBX-18010802 - R08
5 Product handling Page 93 of 110
Early production information
