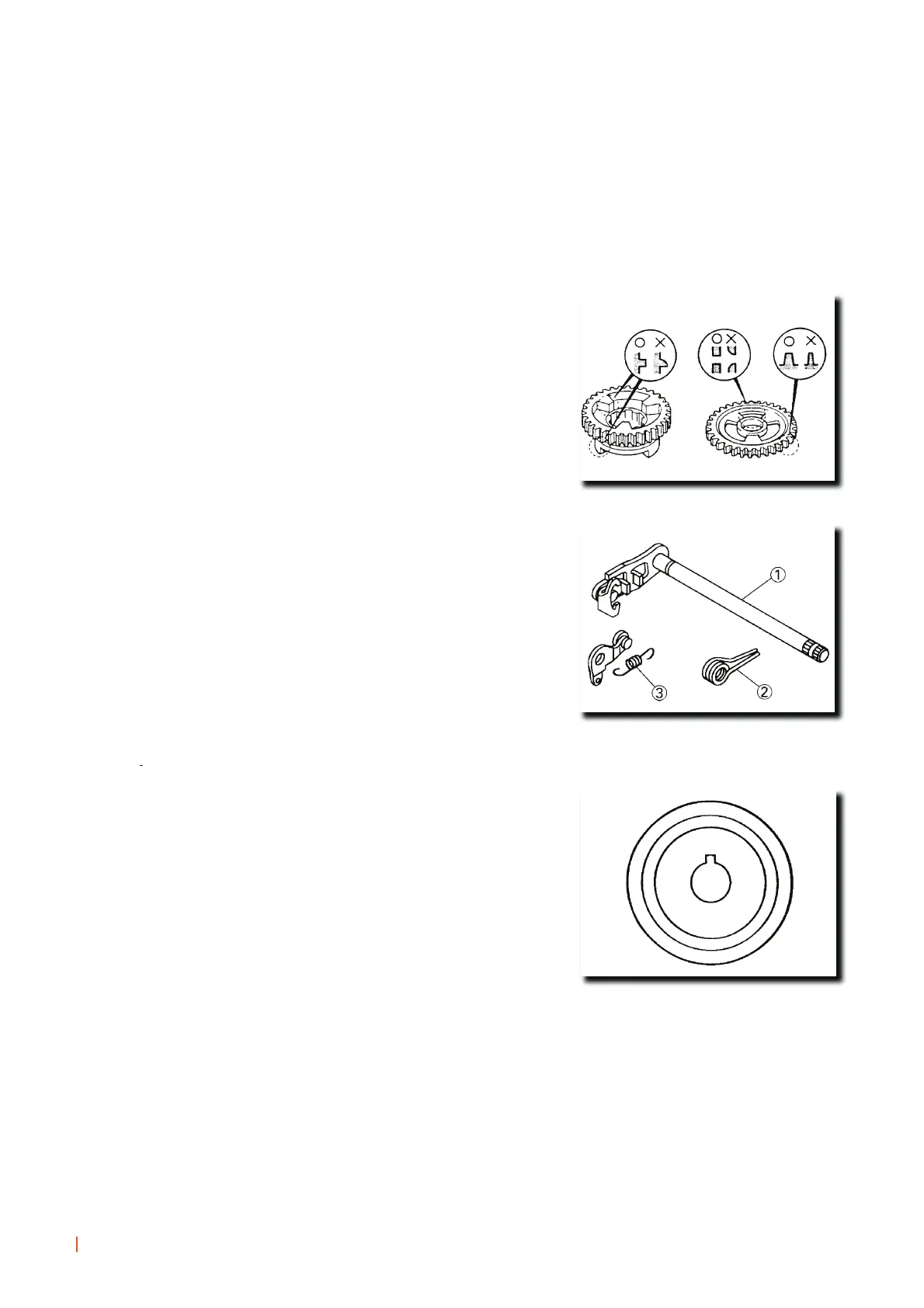

6. Inspect:
- Gear teeth
Blue colouring/grooves/wear => Renew.
- Gear claws
Rounded edges/cracks/pieces missing => Renew.
7. Inspect:
- Gear change shaft (1).
Damage/warping/wear => Renew.
- Return spring (gear change shaft) (2).
- Return spring (limiter rod) (3).
Wear/damage => Renew.
I NSPECTING THE OIL PUMP
1. Inspect:
- Rotary filter
Cracks/damage => Renew.
Contamination => Clean.
2. Inspect:
- Oil suction device
Cracks/damage => Renew.
Contamination => Clean.
I
57
INSPECTION AND REPAIR
WORKSHOP MANUAL
