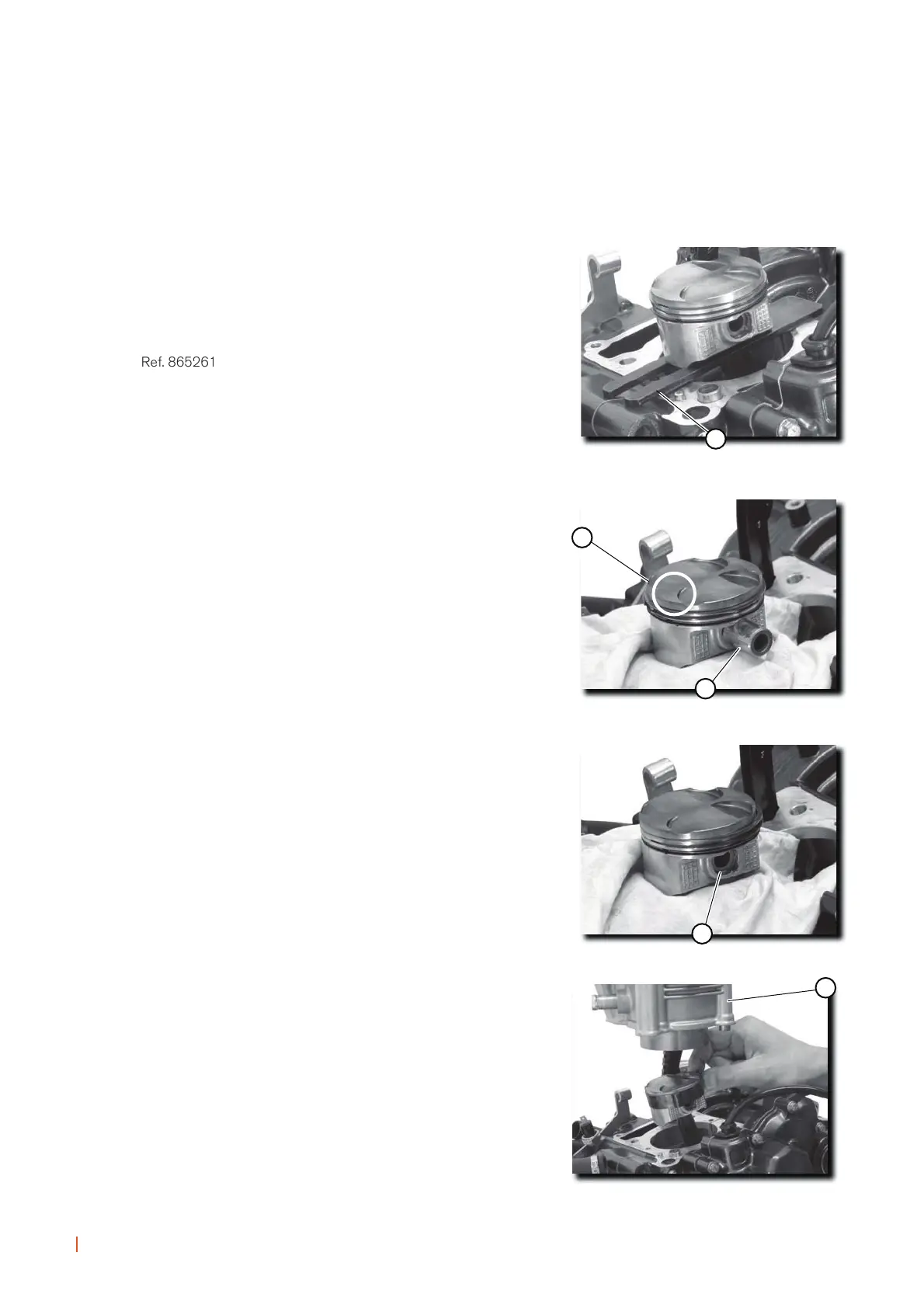

C YLINDER HEAD, CYLINDER AND PISTON
Fit:
- The piston fitting clamp (1).
Piston fitting clamp:
Ref. 865261
N.B.:
BEFORE REMOVING THE CIRCLIP FROM THE GUDGEON
PIN, COVER THE BASE OF THE CYLINDER WITH A CLOTH
TO PREVENT OBJECTS FROM FALLING INTO THE ENGINE.
N.B.:
- APPLY ENGINE OIL TO THE GUDGEON PIN.
- THE (  ) MARK MUST FACE TOWARDS THE EXHAUST
SIDE.
Fit:
- The piston (2).
- The piston gudgeon pin (3).
Fit:
- The piston gudgeon pin securing circlip (4).
Fit:
- The cylinder (5).
2
3
4
1
5
85
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
Ref. T01010049
