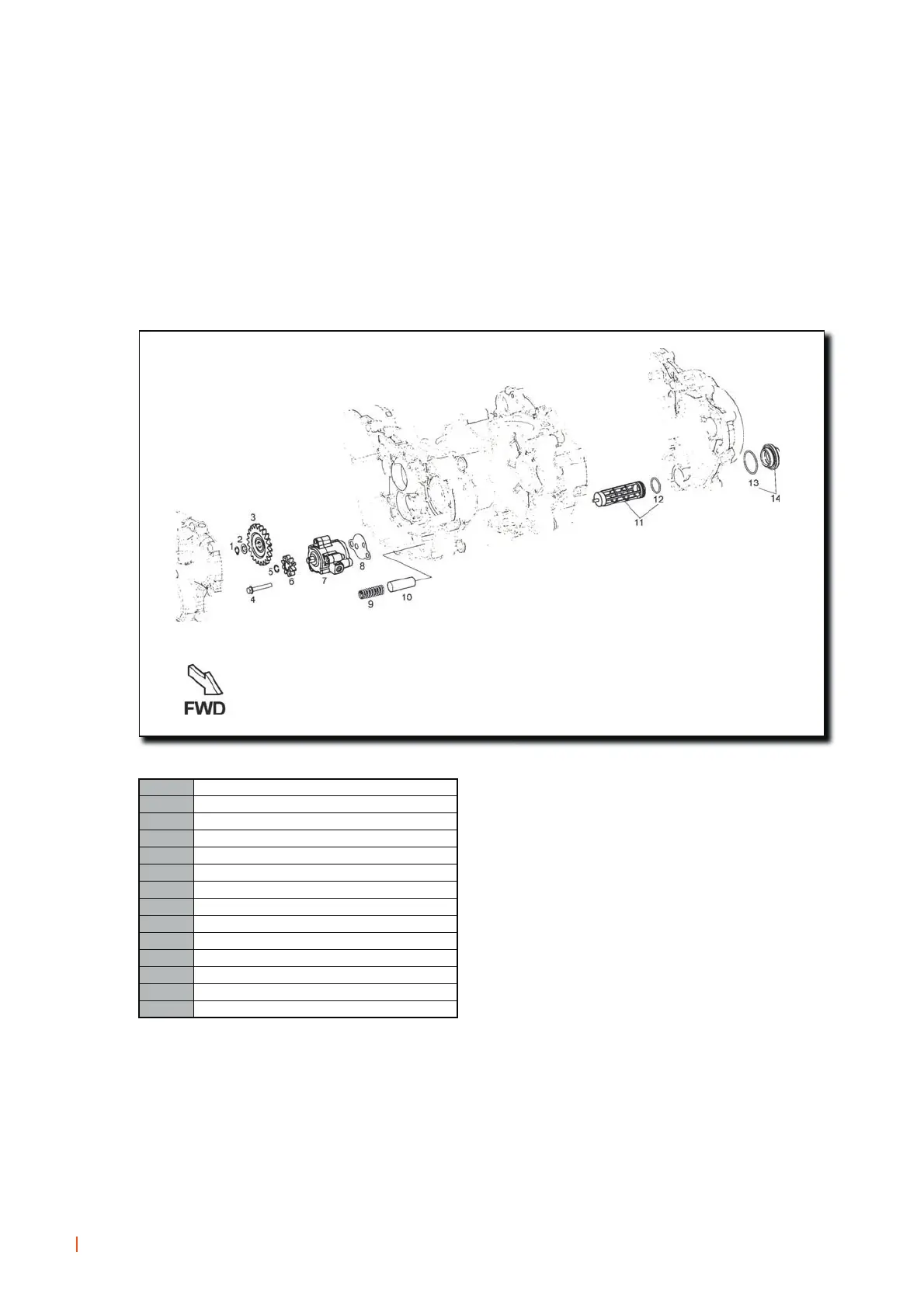

O IL PUMP ASSEMBLY PARTS
Rubber ring.
Flat washer
Intermediate oil pump gear
Bolt
Circlip
Oil pump gear
Oil pump gear
Crankcase / oil pump gasket
Oil pressure valve spring
Oil by-pass valve
Oil lter
Oil lter gasket
Plug gasket
Oil lter plug
1
2
3
4
5
6
7
8
9
10
11
12
13
14
69
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
