22
l The included temperature probe can only be measured
up to 250
o
C For any mesaurement higher than that,
the rod type temperature probe must be used instead.
l When temperature measeuremnet has been completed,
disconnect the connection between the testing leads
and te circuit under test.
Measurement Operation(10)

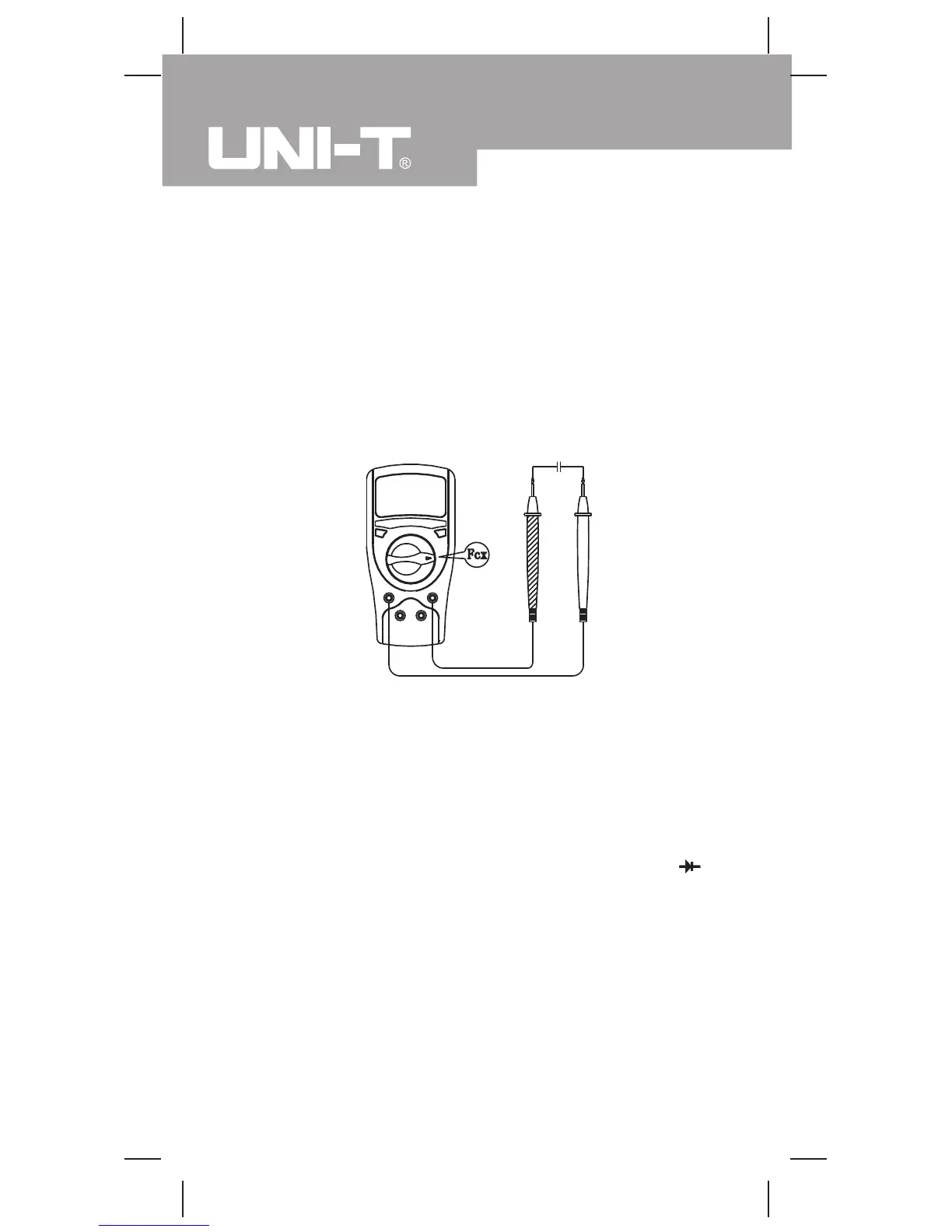

H.Capacitance Measurement (see figure 10)
( figure 10)
The Model UT50A:Capacitance measurement has
4 measurement positions on the rotary switch : 2nF, 20nF,
2µF and 100µF.
The Model UT50B/UT50C: Capacitance measurement
has 4 measurement positions on the rotary switch: 20nF,
200nF, 2µF and 100µF.
To measure capacitance, connect the Meter as follows:
1. Insert the red test clip or red test lead into the V
terminal and the black test clip or black test lead into
the µmA (The Model: UT50A) or mA (The Model:
UT50B/UT50C) terminal.
2. Set the rotary switch to an appropriate measurement
position in Fcx range.
3. Connect the test leads across with the object being
measured.
The measured value shows on the display.
Model UT50A/B/C: OPERATING MANUAL
