Chapter 2
MOTORCYCLE CONTROLS & INSTRUMENTATION

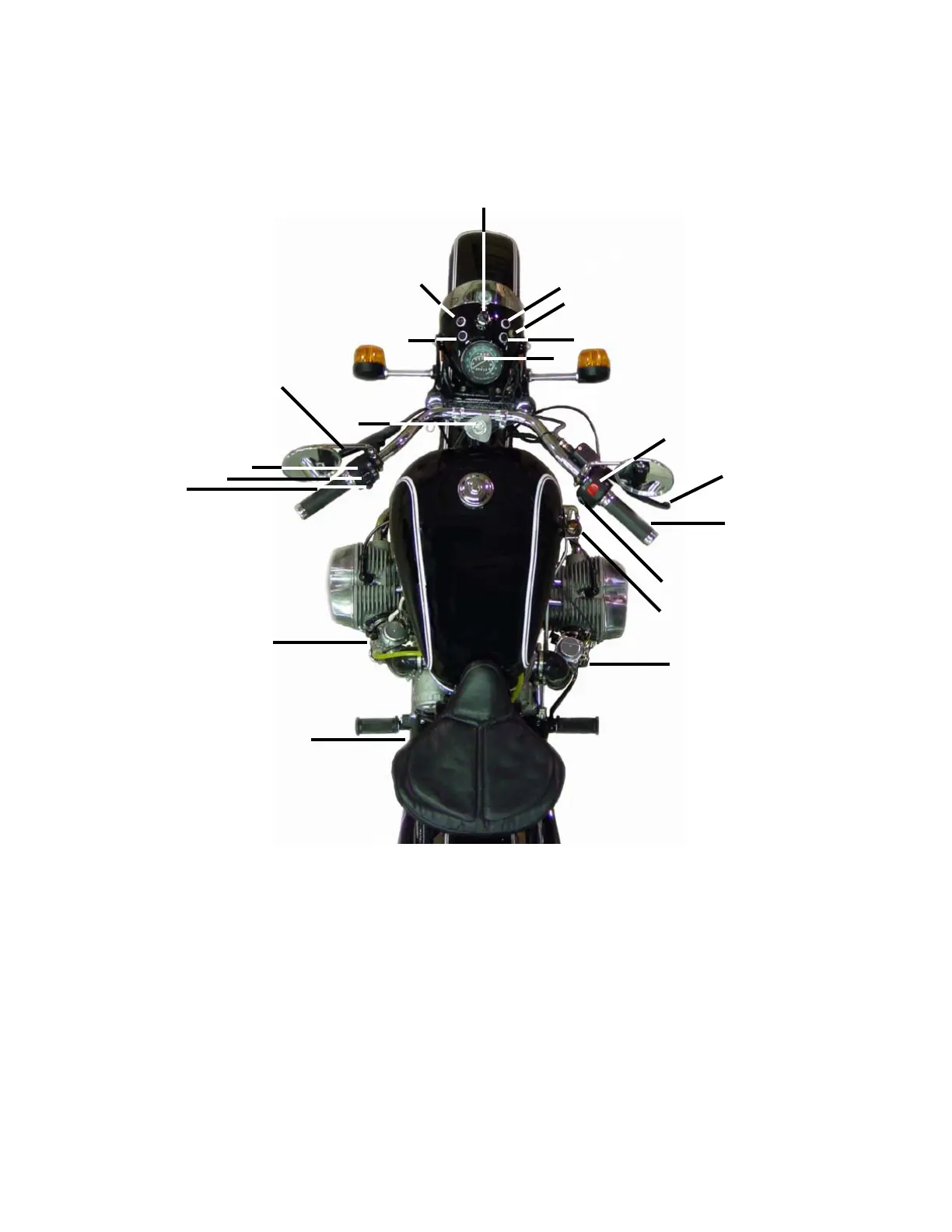

Controls and Instrumentation
1 - Speedometer 12 - Gear shift (foot) pedal
2 - Turn indicator lamp 13 - Turn signal switch
3 - Trip odometer reset knob 14 - Horn push-button
4 - Neutral and reverse gear engagement 15 - “High-low” beam switch
indicator lamp 16 - Clutch control lever
5 - Front brake control lever 17 - Steering damper tightening bolt
6 - Throttle control twist grip 18 - High-beam indicator lamp
7 - Ignition cutoff switch 19 - Ignition Switch
8 - Electric Start Button 20 - Battery discharge warning lamp
9 - Rear brake pedal & sidecar wheel brake
10 - Reverse gear lever
11 - Kick start lever
5
6
1
2
3
4
7
8
9
10
11
12
13
14
15
16
17
18
20
19
