3.7. Application of wireless plus cable

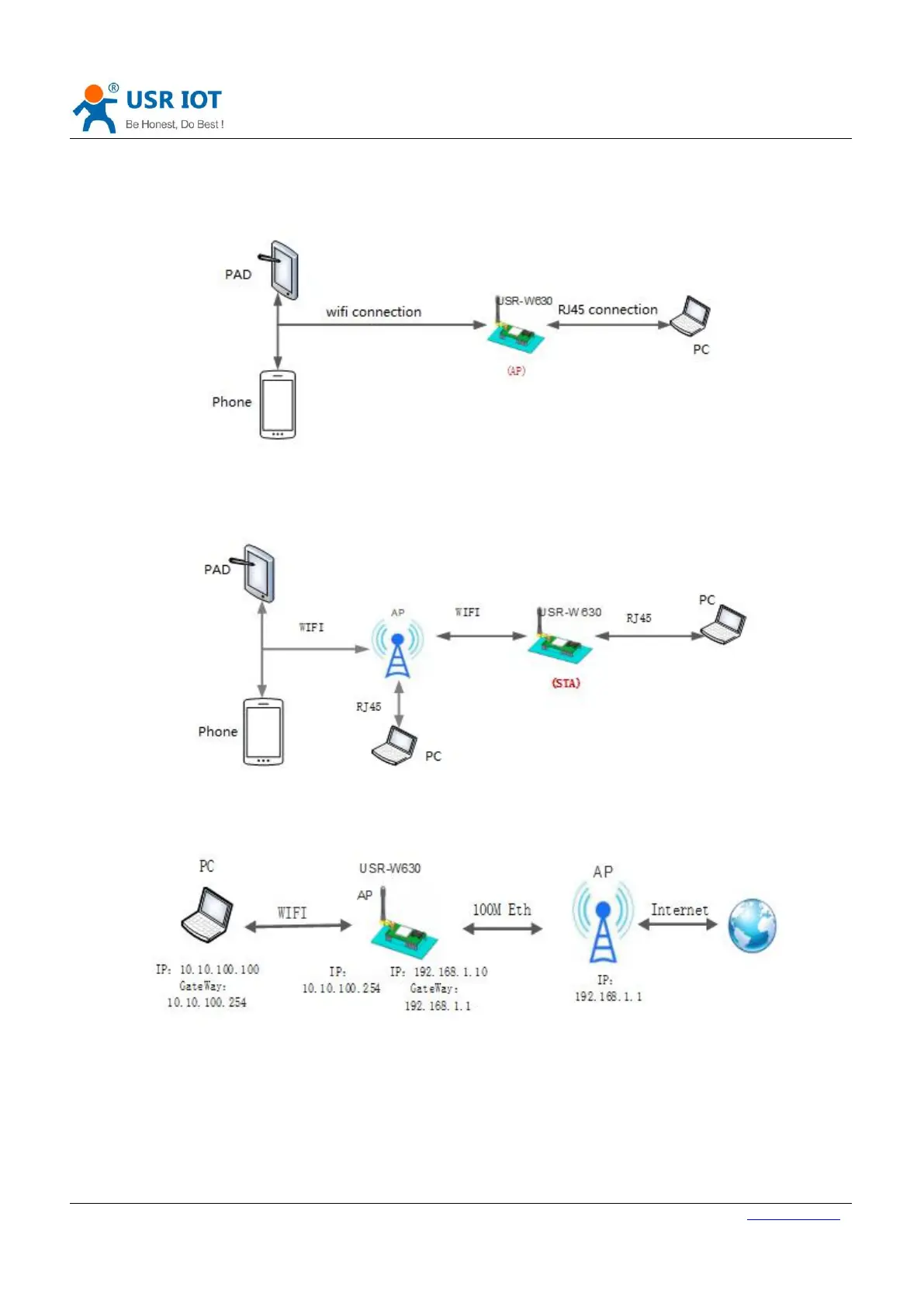

Figure 13 application 1 of wireless plus cable
When W630 work at AP mode, the STA can connect by RJ45 or WI-FI to W630
Figure 14 application 2 of wireless plus cable
When W630 work at STA mode, it can connect PC with RJ45, or join the WI-FI of AP.
Figure 15 application 3 of wireless plus cable
When W630 work as AP , it can connect external network with RJ45, other PC or device connect to W630 through
WI-FI.
