V2 GOLD400D Series User Manual

ENGLISH

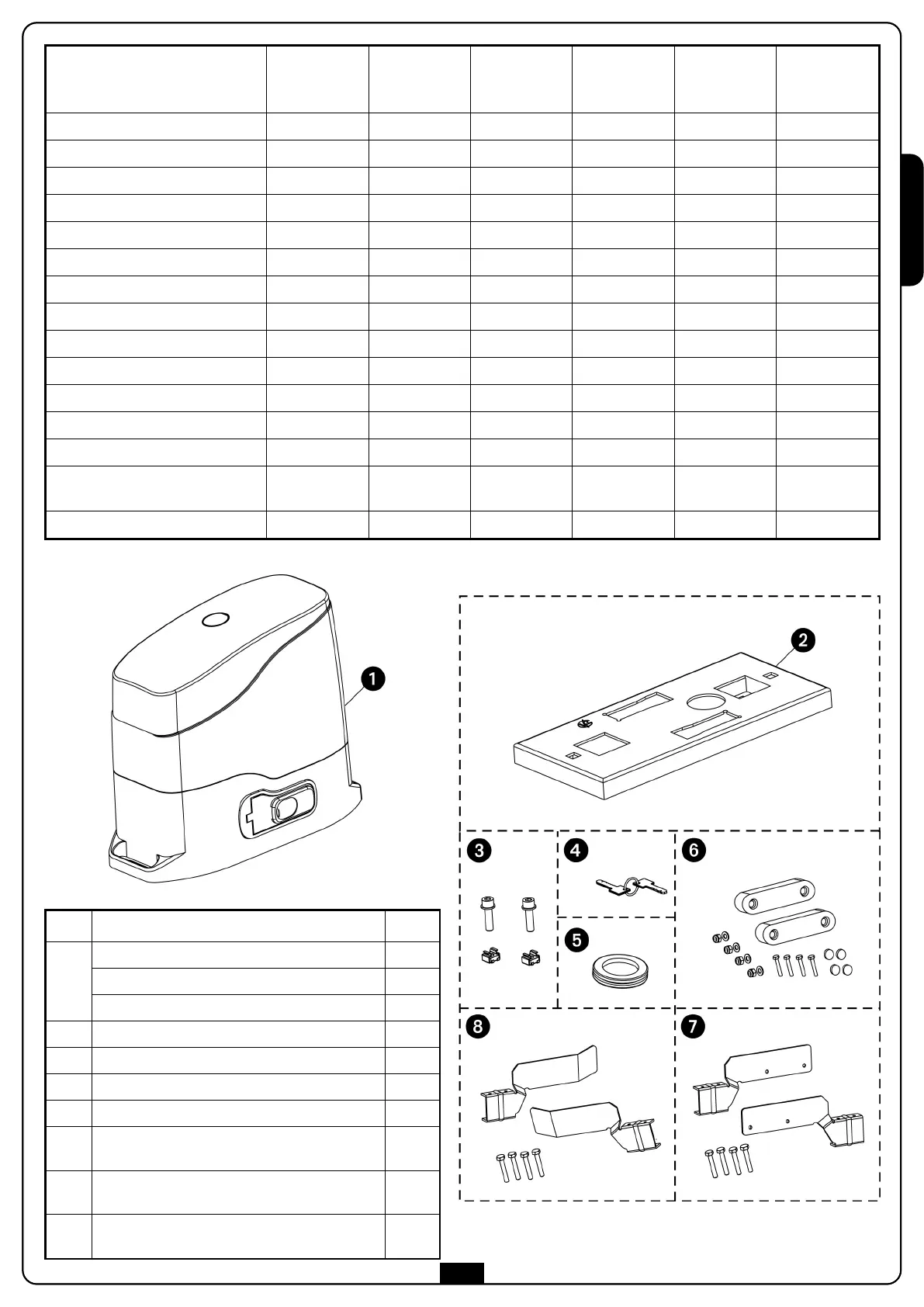

Ref Description Q.ty
1
• Electro-mechanical actuator 1
• Capacitor 1
• Control unit 1
2 Metal fastening plate 1
3 Cage nuts + Bolts M8 X 30 + Washers 2
4 Motor overriding key 2
5 Wire lead gasket 2
6
Magnetic limit switch
(only for the model with magnetic limit switch)
2
7
Magnet holder
(only for the model with magnetic limit switch)
1
8
Mechanical limit switch
(only for the model with mechanical limit switch)
2
27
TECHNICAL
SPECIFICATIONS
GOLD400D
(230V)
GOLD800D
(230V)
GOLD1200D
(230V)
GOLD400D
(120V)
GOLD800D
(120V)
GOLD1200D
(120V)
Gate maximum weight 400 Kg 800 Kg 1200 Kg 400 Kg 800 Kg 1200 Kg
Power supply 230V / 50Hz 230V / 50Hz 230V / 50Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz
Maximum power 300 W 350 W 500 W 400 W 500 W 550 W
I
dling current
1
,5 A
1
,6 A
2
,0 A
2
,6 A
3
,2 A
3
,6 A
Full load current 1,7 A 2 A 2,6 A 3,5 A 4 A 4,5 A
Capacitor 12 µF 14 µF 18 µF 35 µF 40 μF 40 μF
Gate maximum speed 0,16 m/s 0,16 m/s 0,16 m/s 0.16 m/s 0.16 m/s 0.16 m/s
Maximum thrust 380 N 700 N 920 N 380 N 650 N 900 N
Duty cicle 30% 40% 30% 30% 30% 30%
Pinion M4 - Z18 M4 - Z18 M4 - Z18 M4 - Z18 M4 - Z18 M4 - Z18
Operation temperature -20 ÷ +60°C -20 ÷ +60°C -20 ÷ +60°C -20 ÷ +60°C -20 ÷ +60°C -20 ÷ +60°C
Weight 10 Kg 10 Kg 10,5 Kg 10 Kg 10 Kg 10 Kg
Protection IP44 IP44 IP44 IP44 IP44 IP44
Maximum load on 24 VAC
attachments
3W 3W 3W 3 W 3W 3W
Protection fuses F1 = 5 A F1 = 5 A F1 = 5 A F1 = 8 A F1 = 8A F1 = 8A
