V2 GOLD400D Series User Manual

ENGLISH

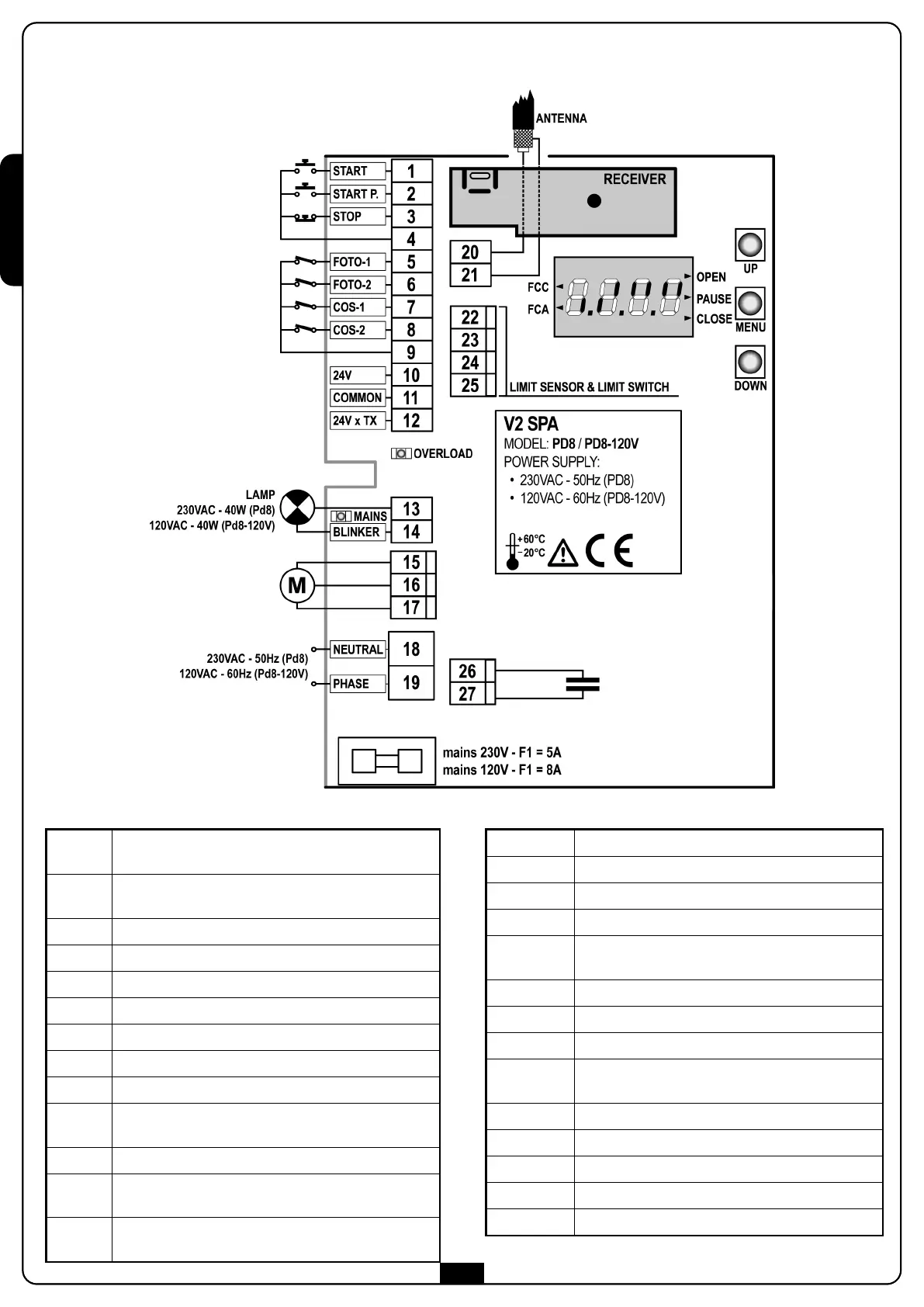

ELECTRIC CONNECTIONS TABLE
1
Opening control for the connection of control
devices with N.O. contact
2
Opening controls for pedestrian access for the
connection of control devices with N.O. contact
3 Stop command. N.C. contact
4 Common (-)
5 Photocells type 1. N.C. contact
6 Photocells type 2. N.C. contact
7 Safety ribbons type 1 (fixed). N.C. contact
8 Safety ribbons type 2 (mobile). N.C. contact
9 Common (-)
10 - 11
Power output 24 VAC for photocells and other
accessories
11 - 12 Photocell TX power supply for functional test
13 - 14
Flashing light
230VAC 40W (Pd8) / 120VAC 40W (Pd8-120V)
15 - 16 -
17
Motor
18 Neutral 230 VAC / 120VAC
19 Power phase 230 VAC / 120VAC
20 Antenna
21 Antenna shield
22 - 23 -
24 - 25
Limit sensor
26 - 27 Capacitor
F1 5A (Pd8) / 8A (Pd8-120V)
MAINS It shows that the control unit is power supplied
OVERLOAD
It shows that there is an overload on accessories
power supply
FCC It shows the opening end of stroke activation
FCA It shows the closing end of stroke activation
OPEN Opening in progress
PAUSE Pause (gate opened)
CLOSE Closing in progress
48
