28
Installation
Window Re-Installation and Checking
Refi t and Check Window

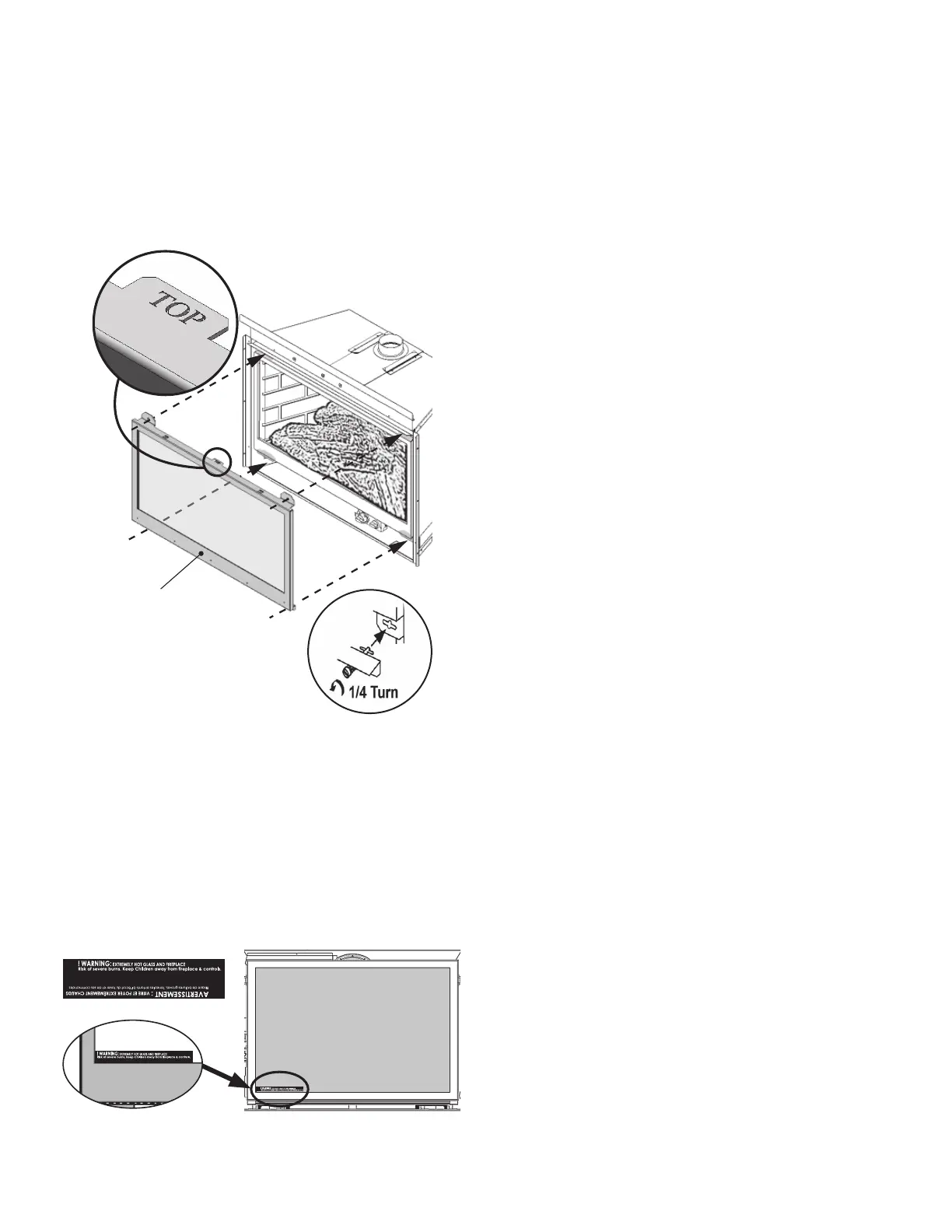

1. To refit the window, place the window against the
firebox’s opening frame. Make sure that the wider
part of the window frame is at the bottom, and
the “TOP” marker is at the top.
2. While you hold it, push in and turn the two top
spring-loaded bolts a quarter turn to engage their
pin.
3. Push in the bottom of the window against the
firebox and fasten the two top spring-loaded bolts a
quarter turn.
4. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and the
frame as indicated.
Hot Glass Plate
Bottom
of window
(wider frame)
