Plug in the other side of the MCAV* cable to the C-Touch display and then position the display in
the cut-out, fixing it with screws to the wall.
While mounting the display in its final position, be careful about the NTC sensor on the back of the
display, it must get into the cut-out. If necessary, gently bend it towards the back of the display.

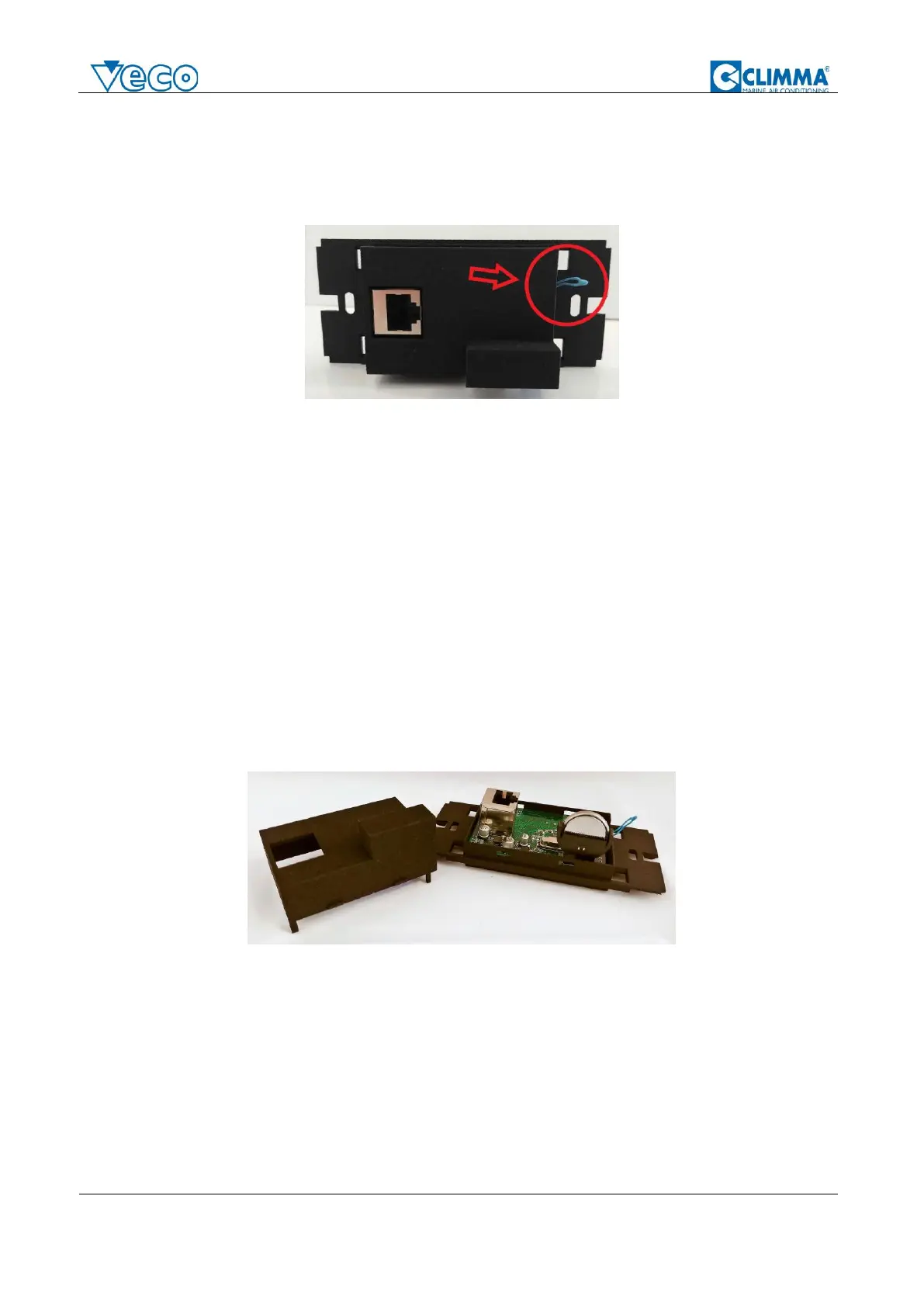

Image 3. Back of the display.
1.2. Battery
Climma C-Touch display comes with a battery, already supplied and mounted on the panel itself.
The battery is a non-rechargeable battery, battery voltage is 3 V and battery type is CR2032.
The battery is used only when the panel is powered off; the battery will last for a minimum of 2
years when powered off.
When the battery dies, you need to change it and then reset date and time values on the display
(all the other parameters and information will remain in the display memory).
1.1. Battery change
To change the battery, you need to turn off the unit, and remove the panel from the wall,
unplugging the connection cable to the unit.
Then remove the back cover of the panel, as in the following picture.
Then change the battery with the new one (always 3V, CR2032), following the indication + an – on
the battery holder, indicating battery correct positioning.
When the battery is changed, close the panels again, then plug the cable and mount it back on the
wall.
