2. Operating instructions

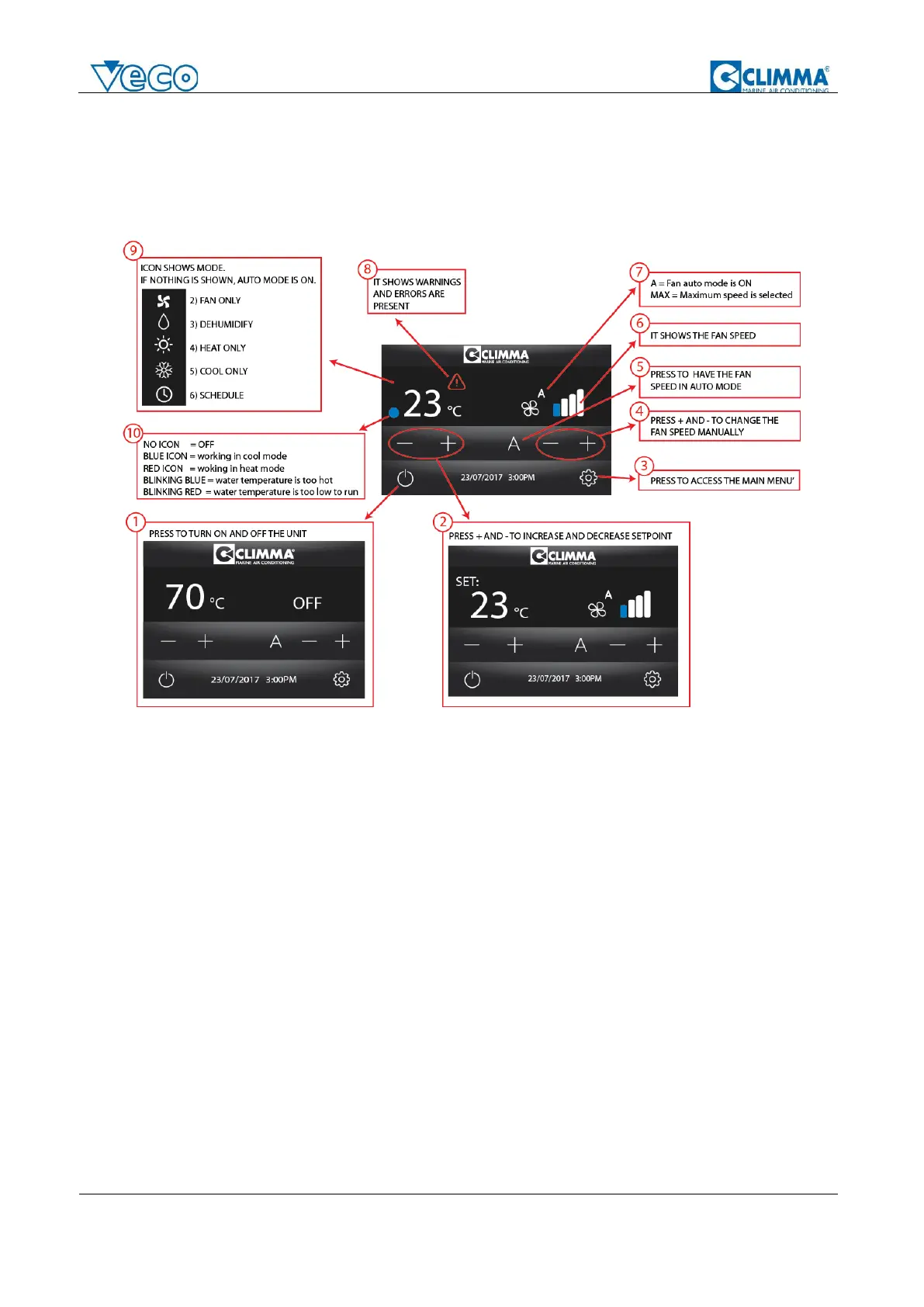

2.1. Home screen and symbols
(1) Pressing the ON-OFF button allows turning on and off the unit.
(2) The + and – signs allows to increase or decrease the set-point temperature between its
maximum and minimum values.
(3) Press the MENU button to access the screen Main Menu, described later on.
(4) Press + and – to manually change the fan speed. If the unit is running the fan in Auto mode,
by pressing + or – you will automatically switch to manual mode.
(5) Press to turn ON or OFF the fan Automatic mode; when fan is in Auto mode, the A is
displayed on the screen.
(6) The bars are showing the actual fan speed through blue (or red in case of heating) bars.
(7) The symbol over the fan can be A, in case fan is running in Auto mode, or MAX, in case the
fan is at it’s maximum speed.
(8) When errors or warnings are active, the display will show a red “alarm” symbol; by pushing
the symbol you can access the active warnings and error page directly.
(9) The small symbol on the left of the temperature shows the unit current functioning mode:
• Auto mode (no symbol)
• Fan only (fan symbol)
• Dehumidify (drop symbol)
• Heat only (sun symbol)
• Cool only (snowflake symbol)
• Schedule mode (clock symbol)
