Vendo V-MAX Series User Manual

SECTION I: VENDOR INSTALLATION (CONTINUED)
S-6

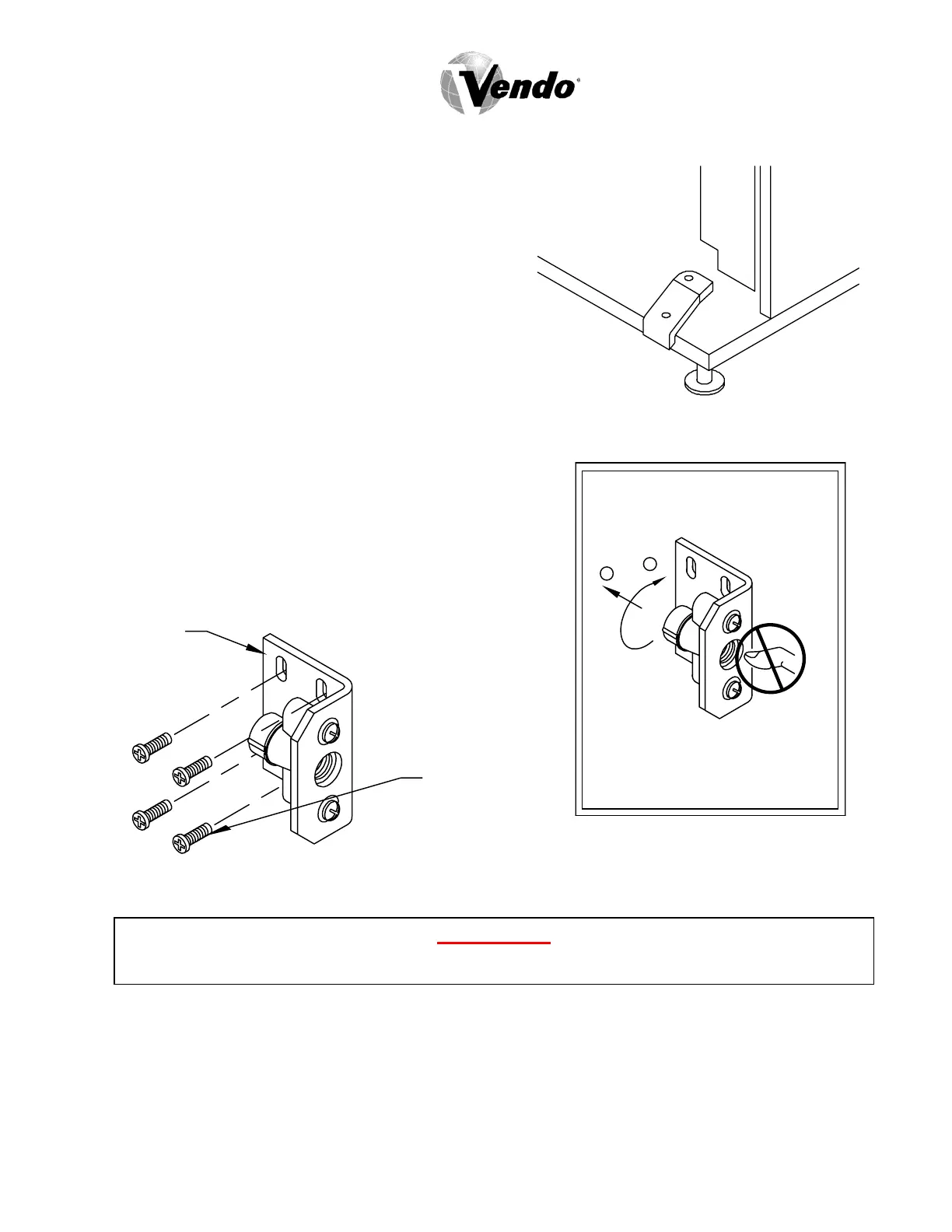

H. Door Support (Figure 2)
The door support is to ensure that the
outer door closes squarely to the cabinet.
Raising the door can also ensure proper
alignment of the door latch.
FIGURE 2
I. Door Latch Alignment (Figure 3)
DO NOT INSERT OBJECTS
INTO LOCK CAVITY.
TO FREE OBJECTS
,
REMOVE
LOCK CAP AS SHOWN
1
2
After any door adjustment, the floating quicker
lock assembly should align itself automatically.
The latch assembly is adjustable. To adjust,
loosen the latch bracket mounting screws,
raise or lower the latch assembly into position,
then tighten the mounting screws.
SCREW
MOUNTING
LATCH
BRACKET
FIGURE 3
WARNING:
KEEP FINGERS AND OTHER OBJECTS OUT OF LOCK CAVITY
NOTE: Refer to the appropriate parts and service manual for detailed
instructions, operating principles, and recommended maintenance
intervals and procedures.
3/2002
