Vendo V-MAX Series User Manual

3/2002
G-5

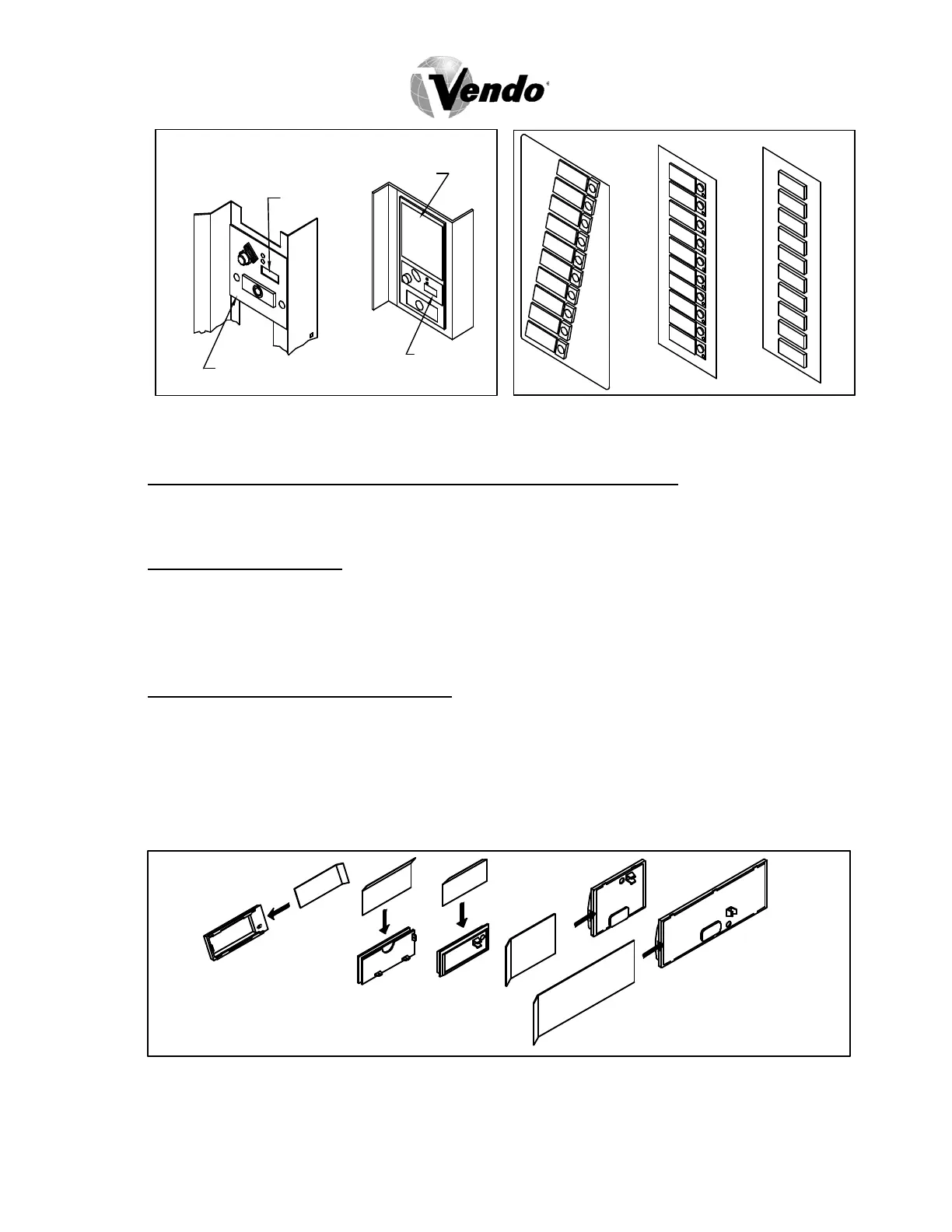

FIGURE 5 FIGURE 6
LABEL INSTALLATION
COIN INSTRUCTION LABEL & PRICE LABEL APPLICATION:
Apply labels to a clean and dry surface. Peel backing from label and apply with firm,
even pressure.
INSTRUCTION LABEL
(Refer to Figure 5 for the following information.)
Coin insert “A” has a separate validator opening, and insert “B” shows the validator
opening built into the coin insert. Apply instruction label to area shown (as needed by
the vendor).
FLAVOR LABELS INSTALLATION:
In Figures 6 & 7, corresponding styles are indicated by A, B, C, D, or E notations.
Insert flavor labels to the side or top of selection window or button depending on the
style. See Figure 6 for selection style. Rear views of windows and buttons are shown
in Figure 7. Arrows point the direction to insert labels.
Selection window and selection button labels identify product contained in columns.
COIN INSTRUCTION LABEL
COIN INSERT
A
PRICE DISPLAY
COIN INSTRUCTION LABEL
PRICE DISPLAY
STYLE C
COIN INSERT
B
STYLE A
STYLE B
STYLE- D
STYLE- A
STYLE- B
STYLE- C
STYLE- E
NOTE: The selection panel used with
styles D and E is not depicted in Figure 6.
FIGURE 7
