Vertiv | NetSure8200 Series -48 VDC Power System User Manual (UM582140000) | Rev. A
14

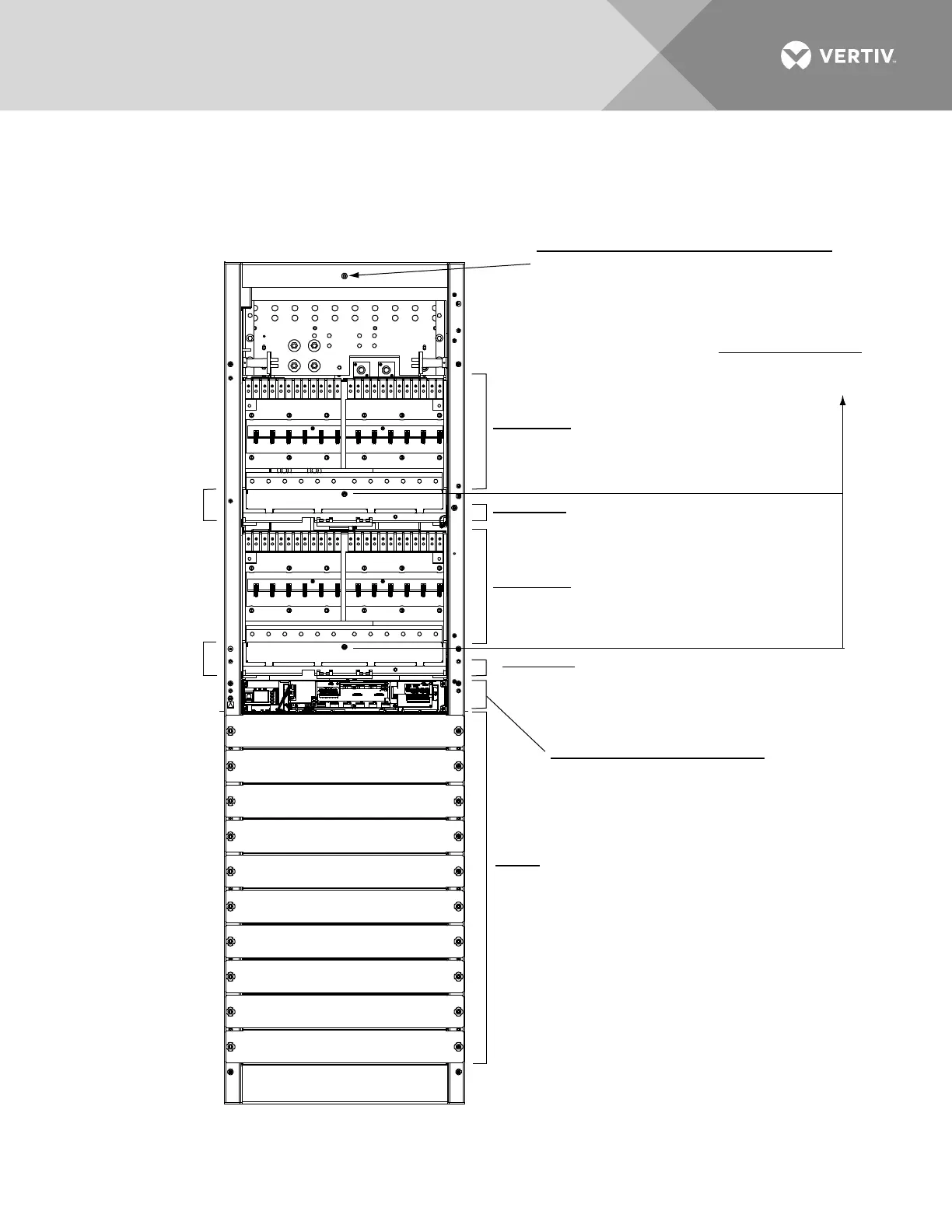

System Overview Illustrations
Figure 1:
Power/Distribution Bay
Bay LED (Located on outside of front door)
Green = OK
Red = Bay Failure
Spare
Fuseholders
(behind hinged
panel)
Spare
Fuseholders
(behind hinged
panel)
Front Door Removed in
Illustration for Clarity
Power
Rectifiers
(See Detail B)
System Monitoring and Control
See Detail C or Detail D
Monitoring
Bus #1 Monitoring Circuit Card (See Detail A)
(behind hinged panel)
Monitoring
Bus #2 Monitoring Circuit Card (See Detail A)
(behind hinged panel)
Distribution
Bus #1
Distribution
Bus #2
Distribution Bus LED
Green = OK
Red = Distribution Bus Failure
