Vertiv | NetSure™ 8200 Series -48 VDC Power System User Manual (UM582140000) | Rev. A
26

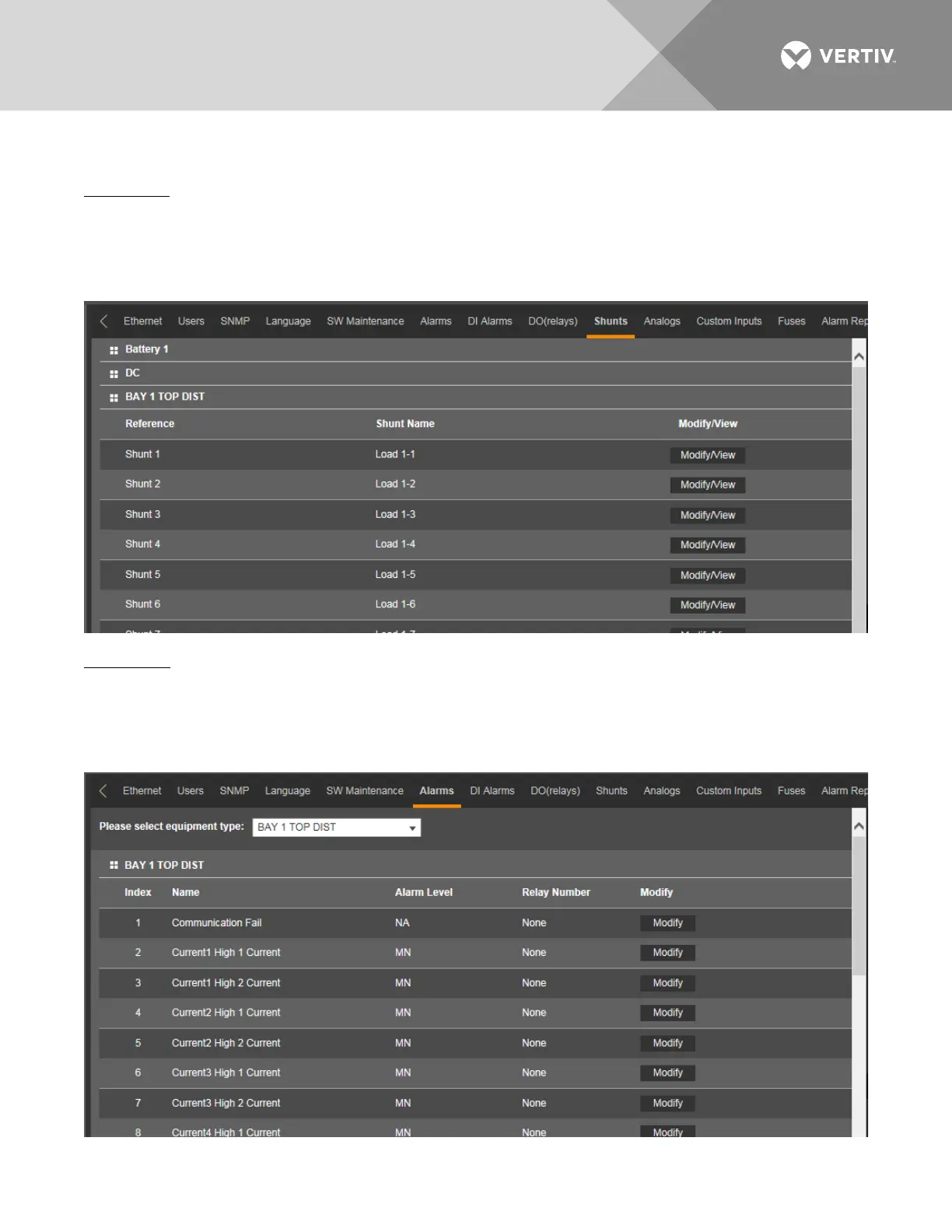

Advanced Settings Screen
Shunts Tab
In this system’s special NCU configuration, the Shunts tab in the “Advanced Settings Screen” allows the shunts
for each distribution point to be configured. See Figure 14.
Figure 14: Advanced Settings Screen, Shunts Tab
Alarms Tab
In this system’s special NCU configuration, the Alarms tab in the “Advanced Settings Screen” groups the bay’s
alarms and lists the naming of each bay alarm in the configuration. See Figure 15.
Figure 15: Advanced Settings Screen, Alarms Tab
