Vertiv | NetSure™ 8200 Series -48 VDC Power System User Manual (UM582140000) | Rev. A
27
Fuses Tab
In this system’s special NCU configuration, the Fuses tab in the “Advanced Settings Screen” groups the bay’s
fuse alarms and lists the naming of each fuse alarm in the configuration. See Figure 16.

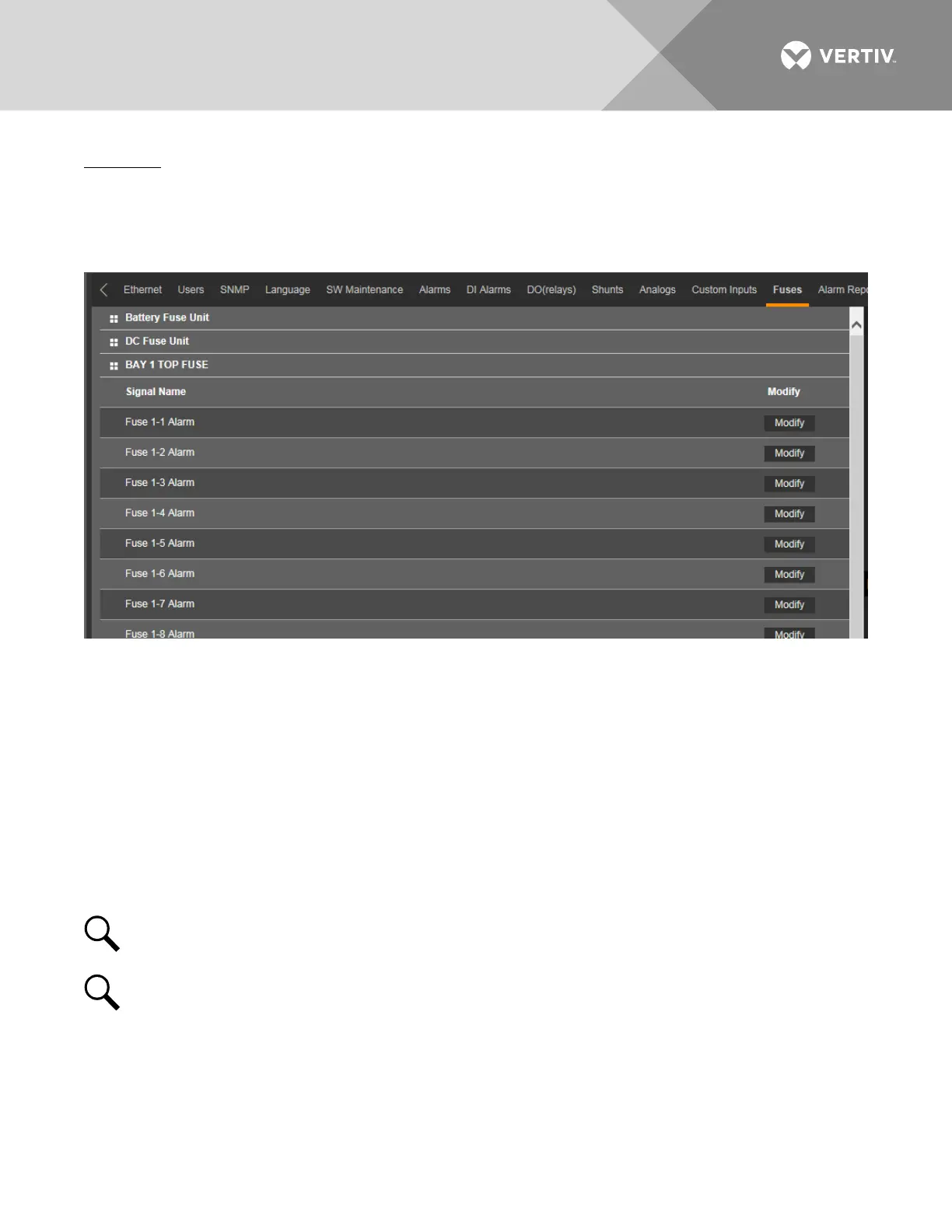

Figure 16: Advanced Settings Screen, Fuses Tab
Front Panel Touch Screen
The NCU controller’s Ethernet port (192.168.100.100) is factory connected to a front panel touch screen. This
allows local access to the NCU Webpages via the front panel touch screen.
Upon power up, an NCU login window appears on the touch screen. Touch in the User Name field, then enter a
valid User Name. Touch in the Password field, then enter a valid Password. Then touch on LOGIN. The NCU
"HOMEPAGE" window opens. Refer to the NCU controller instructions (UM1M830BNA) for webpage interface
information.
NOTE! By default, the “User Name” is "admin" and the “Password” is “640275”.
NOTE! An audible alarm can be silenced at any time by momentarily depressing the ENT key on the
NCU controller or touching anywhere on the front panel touch screen.
The front panel touch screen goes into a sleep mode after a predetermined time period. A window displaying
Plant Load, Plant Voltage, and any alarms is displayed in the center of the touch screen for a short period. This
window then moves around the screen. Touch anywhere on the front panel touch screen to take the screen
out of sleep mode. You must then log back into the NCU as described above.
