DB-3 Drawbar Organ
1
2
3 4
5 6
7
8
3. CONTROLS AND CONNECTORS

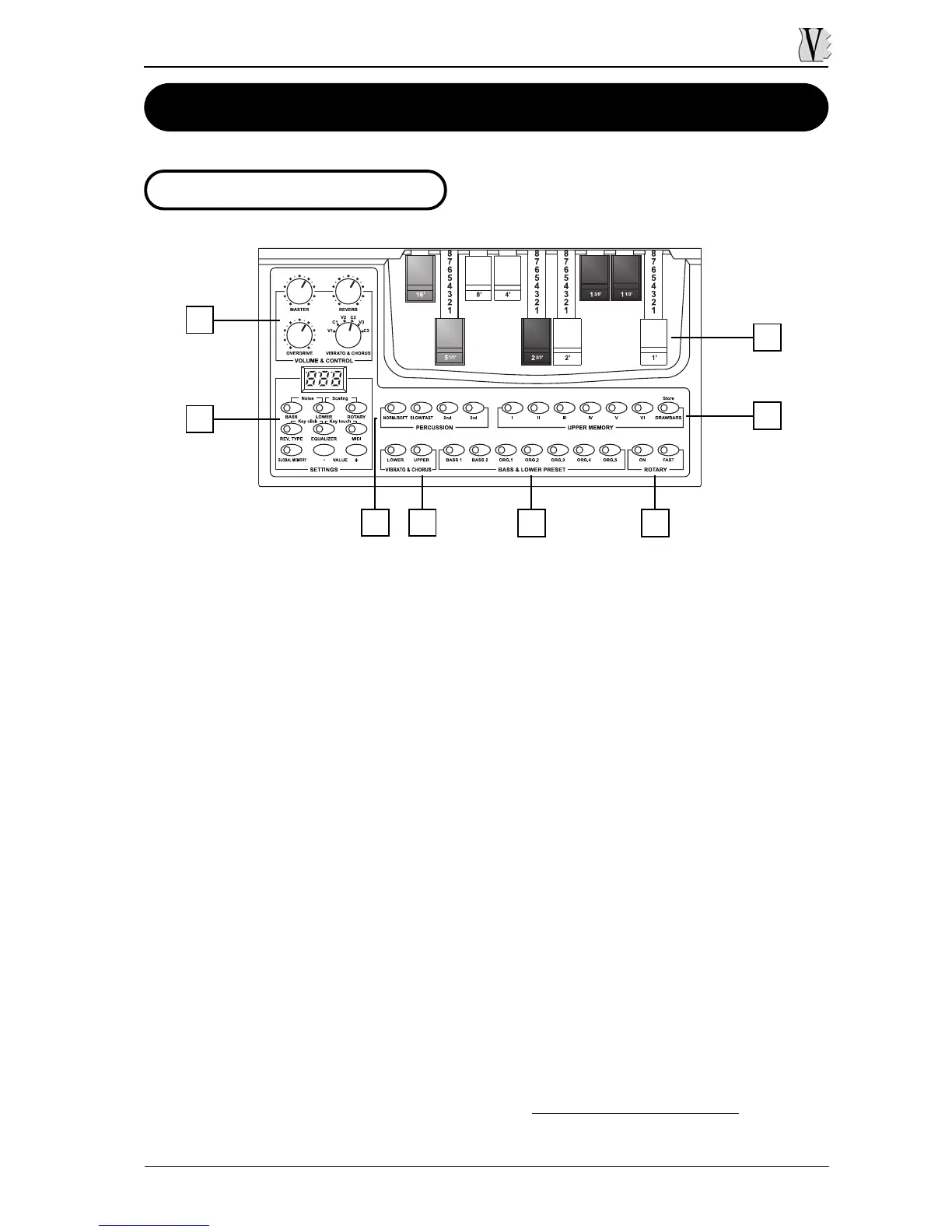

3.1 THE FRONT PANEL
1. VOLUME & CONTROL Section: this contains four trimmers for control of:
- [MASTER]: the instrument’s general volume.
- [REVERB]: the total reverb effect.
- [OVERDRIVE]: the amount of the distortion effect.
- [VIBRATO & CHORUS]: selection of the type of Vibrato (V1, V2 or V3) or Chorus
(C1, C2 or C3).
2. SETTINGS Section: this section contains the buttons used to recall and regulate the
display functions. These buttons allow you to set:
- [BASS]: the parameters relating to the Bass section.
- [LOWER]: the parameters relating to the Lower section.
- [ROTARY]: the setting of the Rotary effect.
- [REV.TYPE]: selection of the type of reverb.
- [EQUALIZER]: equalizer setting.
- [MIDI]: settings concerning the MIDI functions.
- [GLOBAL MEMORY]: selection of the Global Memories.
- [VALUE]: increases ([+] button) or decreases ([-] button) the value of the
parameter shown on the display.
- [BASS] + [LOWER] (Noise): adjustment of the levels of the Motor Noise and
Leakage Noise.
- [LOWER] + [ROTARY] (Scaling): selection of the Scaling curves.
- [REV.TYPE] + [EQUALIZER] (Click): adjustment of the effect which simulates
the click of the manual contacts in the original electromagnetic organs.
- [EQUALIZER] + [MIDI] (Key Touch): (version with manual only) selection of
the dynamic curve transmitted by MIDI.
33
