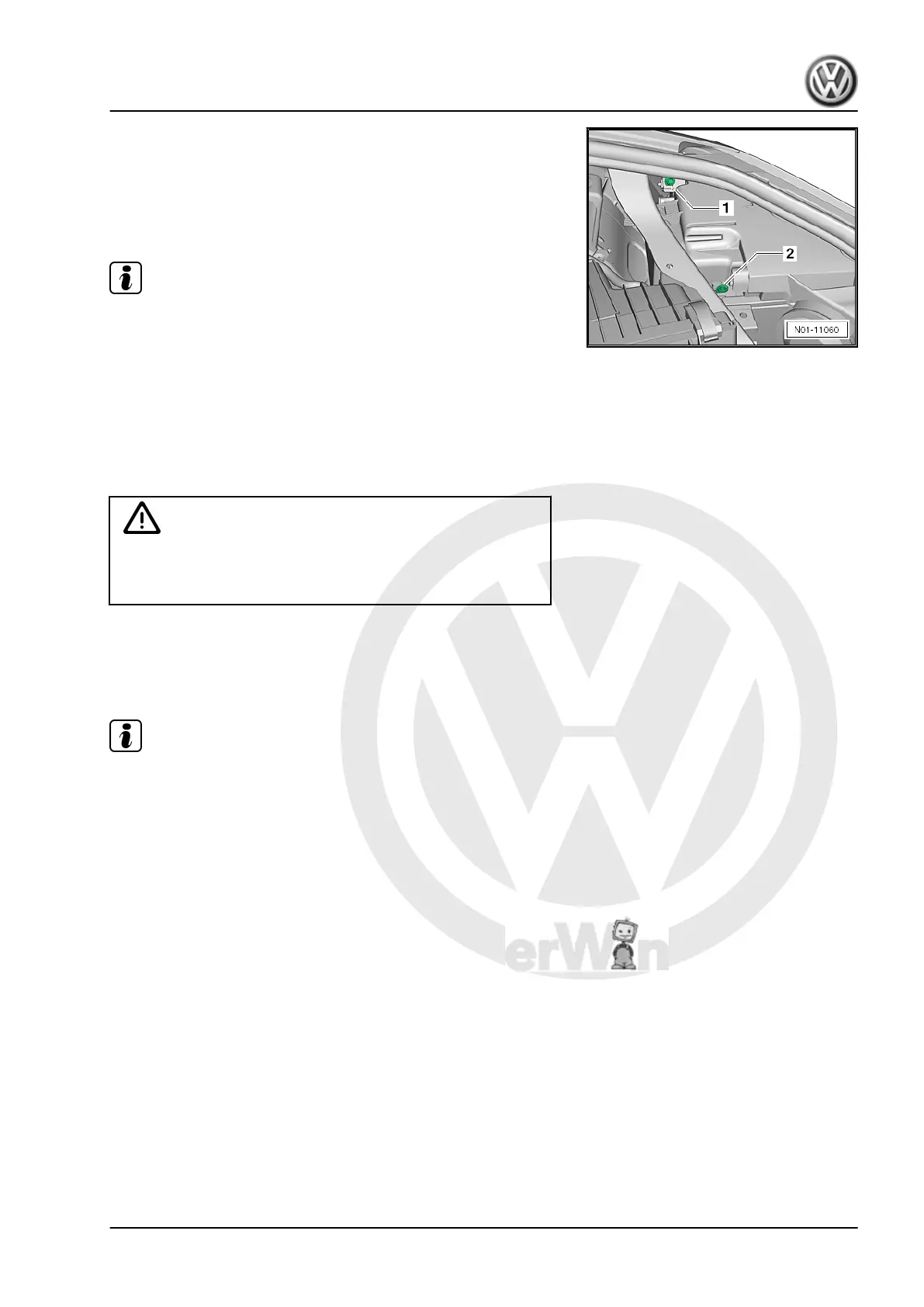

– Adjust adjustment bolts using a hexagon key.
1 - Lateral adjustment
2 - Height adjustment
– Turn vertical adjustment bolt -2- until correct setting is at‐
tained.
Note
♦
In some markets, the adjustment bolt for lateral adjustment is
-1- encapsulated. Lateral adjustment is not permissible here.
♦
For vehicles for North America the side adjustment of head‐
light is not permitted and has therefore an adjustment bolt
secured against turning.
– Turn lateral adjustment bolt -1- until correct setting is attained.
The adjustment bolts for the right headlight are a mirror image.
Subsequent check of left headlight
Caution
It is not permitted to change the lateral setting of the headlight
any more during the check. Readjusting the vertical setting is
permissible.
– Check headlight adjustment.
– If necessary, re-adjust the vertical setting of the headlight.
– Press „GoTo“ „End“ buttons to exit the „Guided functions“.
Note
♦
Adjustment of the right headlight is carried out in the same
sequence.
♦
The adjustment bolts for the right headlight are a mirror image.
4.38 Sliding sunroof drains: Check not
blocked, clean if necessary
Carry out the following procedure:
– Open sliding sunroof.
Touareg 2010 ➤
Maintenance - Edition 11.2011
4. Descriptions of work 103
