Pay attention to the following during the visual check:
♦ The high-voltage components must not reveal any external
damage.
♦ The high-voltage cable insulation must be intact and undam‐
aged.
♦ Pay attention to unusual high-voltage cable deformations.
Note
Defects which are found must be immediately reported to the re‐
sponsible high-voltage technician.
4.16 Interior and exterior body: Performing
visual check for corrosion when doors
and flaps are open
Test locations
♦ Sliding roof frame
♦ Inner and outer door frame
♦ Area around trim strips
♦ Windscreen roof edge
♦ Outer and inner A-pillar
♦ Bonnet
♦ Wheel housings
♦ Inner and outer tailgate

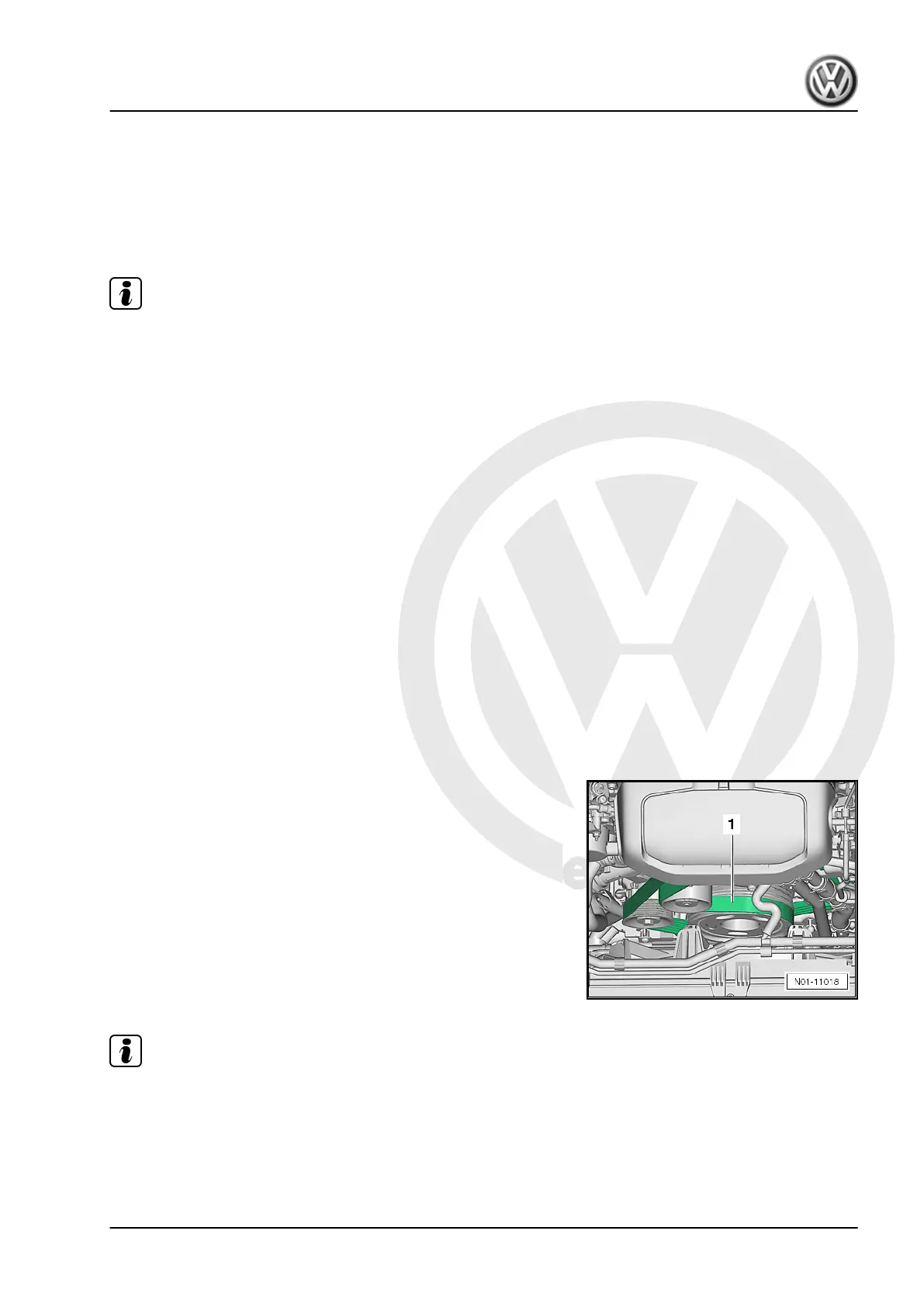

4.17 Poly V-belt: Check condition
Carry out the following procedure:
– Remove engine cover panel, if necessary.
– Check poly V-belt/s -1- for:
♦ Substructure cracks (cracks, core ruptures, cross sectional
breaks)
♦ Layer separation (top layer, cord strands)
♦ Base break-up
♦ Fraying of cord strands
♦ Flank wear (material wear, frayed flanks, brittle flanks -glassy
flanks-, surface cracks)
♦ Traces of oil and grease
– Install engine cover panel.
Note
If faults are found it is absolutely necessary to renew the poly V-
belt. This will avoid possible breakdowns or operating problems.
Renewing the poly V-belt is a repair measure.
Touareg 2010 ➤
Maintenance - Edition 11.2011
4. Descriptions of work 41
