4.35.3 Adjusting halogen headlights

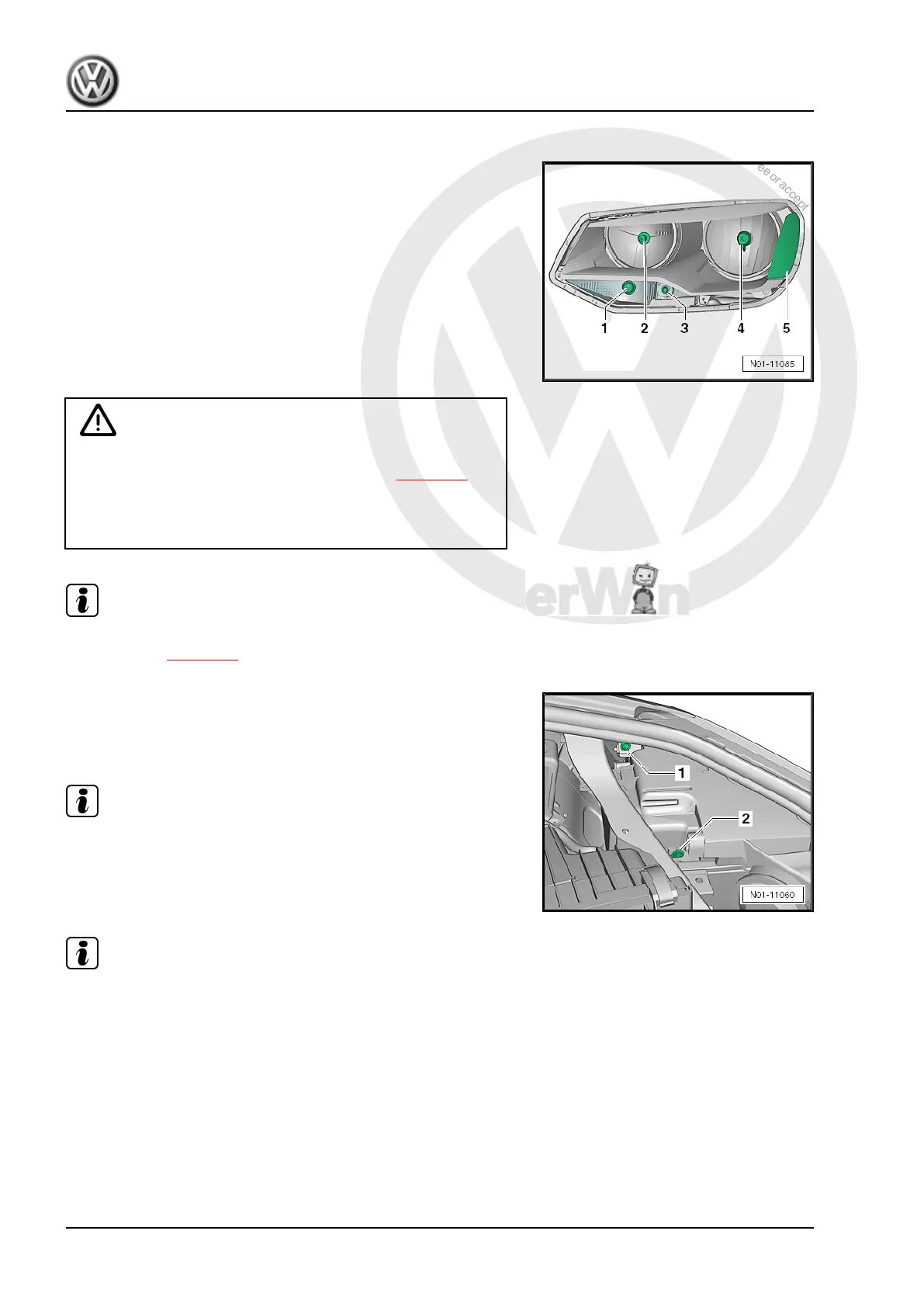

Overview of halogen headlights:
1 - Bulb for front left turn signal -M5- or bulb for front right left
turn signal -M7-
2 - Bulb for left high beam -M30- or bulb for right high beam -
M32-
3 - Bulb for left parking light -M1- or bulb for right parking light
-M3-
4 - Bulb for left dipped beam -M29- or bulb for right dipped
beam -M31-
5 - Sidemarker: Either as screen; or US version of sidemarking
light SML in orange
WARNING
In the case of hybrid vehicles, the hybrid-relevant components
in the working area must be visually inspected ⇒ page 40 .
In the event of conspicuous findings or uncertainties, contact
your responsible high-voltage technician or specialist electri‐
cian!
Note
In hybrid vehicles, the engine cover has to be removed to adjust
the headlights ⇒ page 70 .
Lateral and height adjustment for left headlight:
1 - Lateral adjustment
2 - Height adjustment
Note
In some markets, the adjustment bolt for lateral adjustment is
-1- encapsulated. Lateral adjustment is not permissible here.
– Turn height adjustment screw -2- and lateral adjustment screw
-1- until the correct setting is achieved.
Note
♦
Also check whether both headlights move evenly on actuation
of headlight range control.
♦
Adjustment of the right headlight is carried out in the same
sequence.
♦
The adjustment bolts for the right headlight are a mirror image.
4.35.4 Adjusting fog lights and other additional
lights
– Set the appropriate inclination on the headlight adjustment
unit.
Touareg 2010 ➤
Maintenance - Edition 11.2011
92 4. Descriptions of work
