9
Repair Instructions

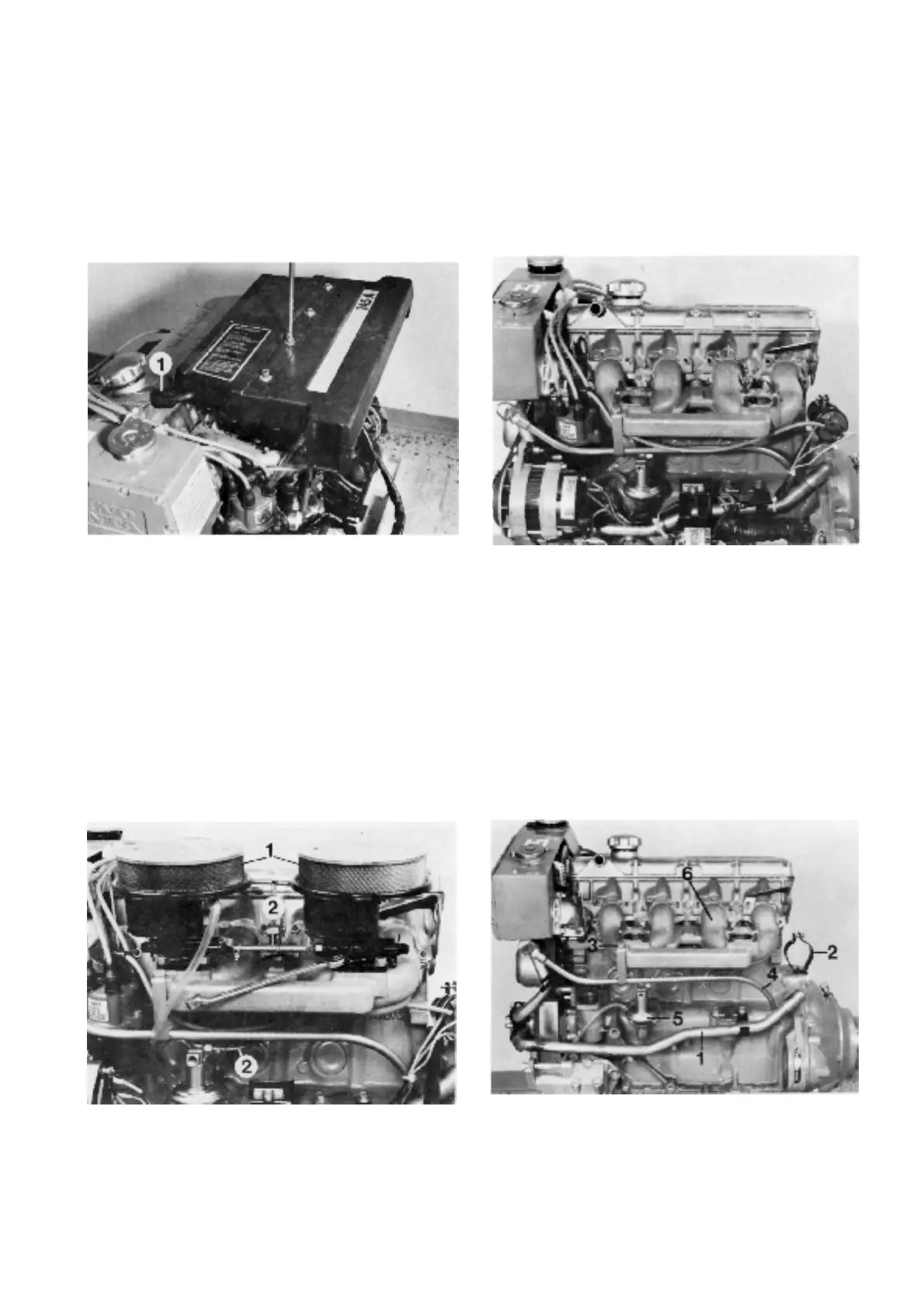

1. AQ145. Remove the four screws and pull the in-
duction silencer to one side so that it comes free
from the evacuation tube (1). AQ125. Remove the
cover.
2. Remove the air filters (1), the fuel pipe (2) be-
tween the feed pump and the carburetors and
unscrew the carburetors from the induction pipe.
AQ125 has only one carburetor.
3. Remove the alternator, drive belt, cable harness,
ignition coil, main fuse, starter motor, ignition
cables and distributor. NOTE! Mark the cables
before they are removed.
4. Remove the cooling water pipe (1), and the
bracket for the ignition coil (2). Remove the screw
(3) and draw up the dip stick with its tube (4).
Then remove the feed pump (5) and the induction
pipe (6). NOTE! There are double gaskets plus an
intermediate washer on the feeder pump. There is
a lifting eye in the induction pipes rear screws.
There are no washers under the lifting eye.
