16

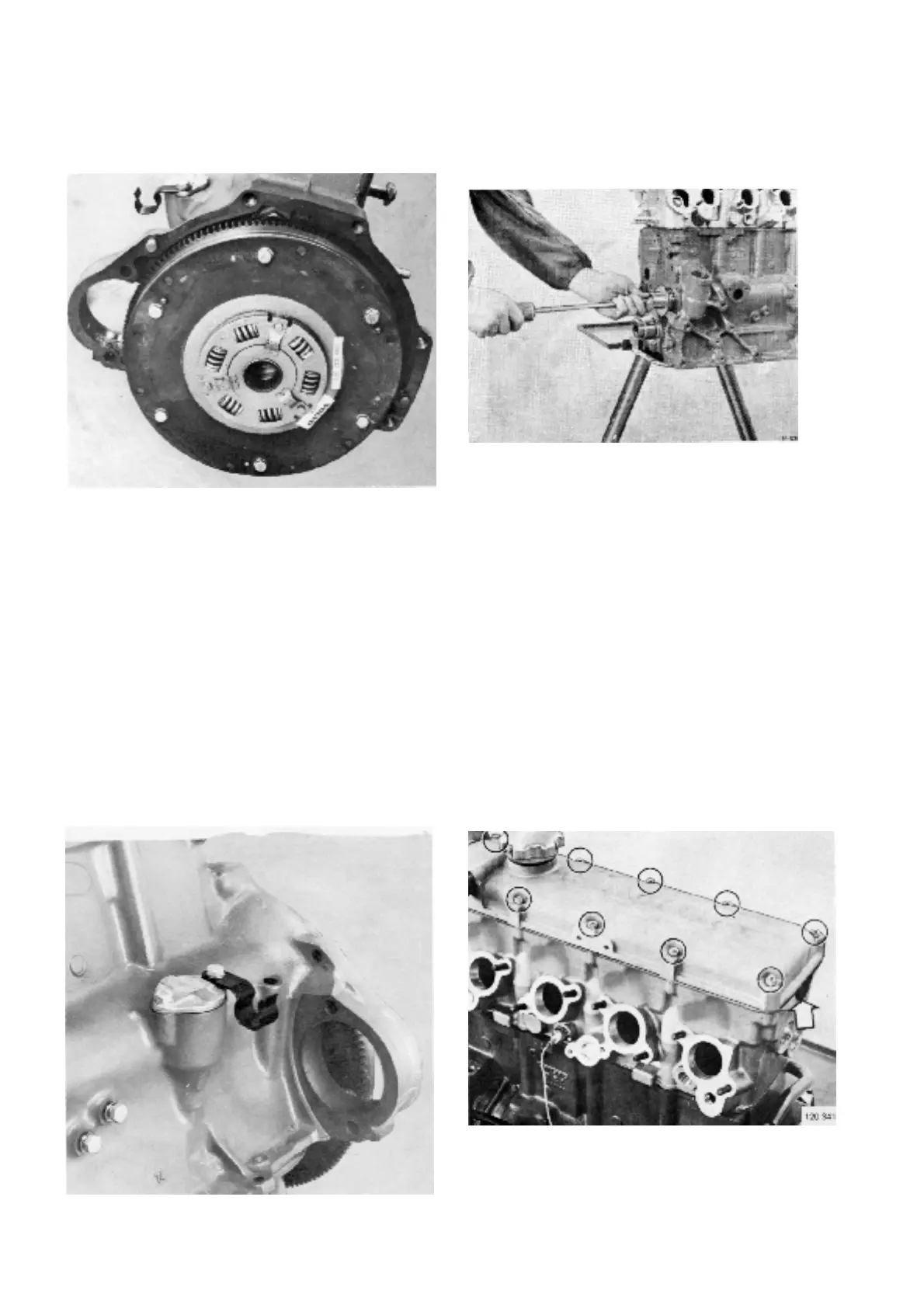

29. Remove the vibration damper’s six screws. Span-
ner width 13 mm. Carefully remove the vibration
damper from the three guide pins.
30. Remove the cover and the bracket for the oil
pump drive. Then lift up the oil pump drive.
31. Pull out the intermediate shaft. Use the impact
tool 999 4030 where necessary. NOTE! Be care-
ful to make sure that the intermediate shaft’s
gearwheel does not damage the bushes in the
cylinder block’s bearings.
Cylinder head
32. Remove the valve cover, the gasket and the cres-
cent shaped rubber seal and check the marking
on the camshaft bearing caps.
