15

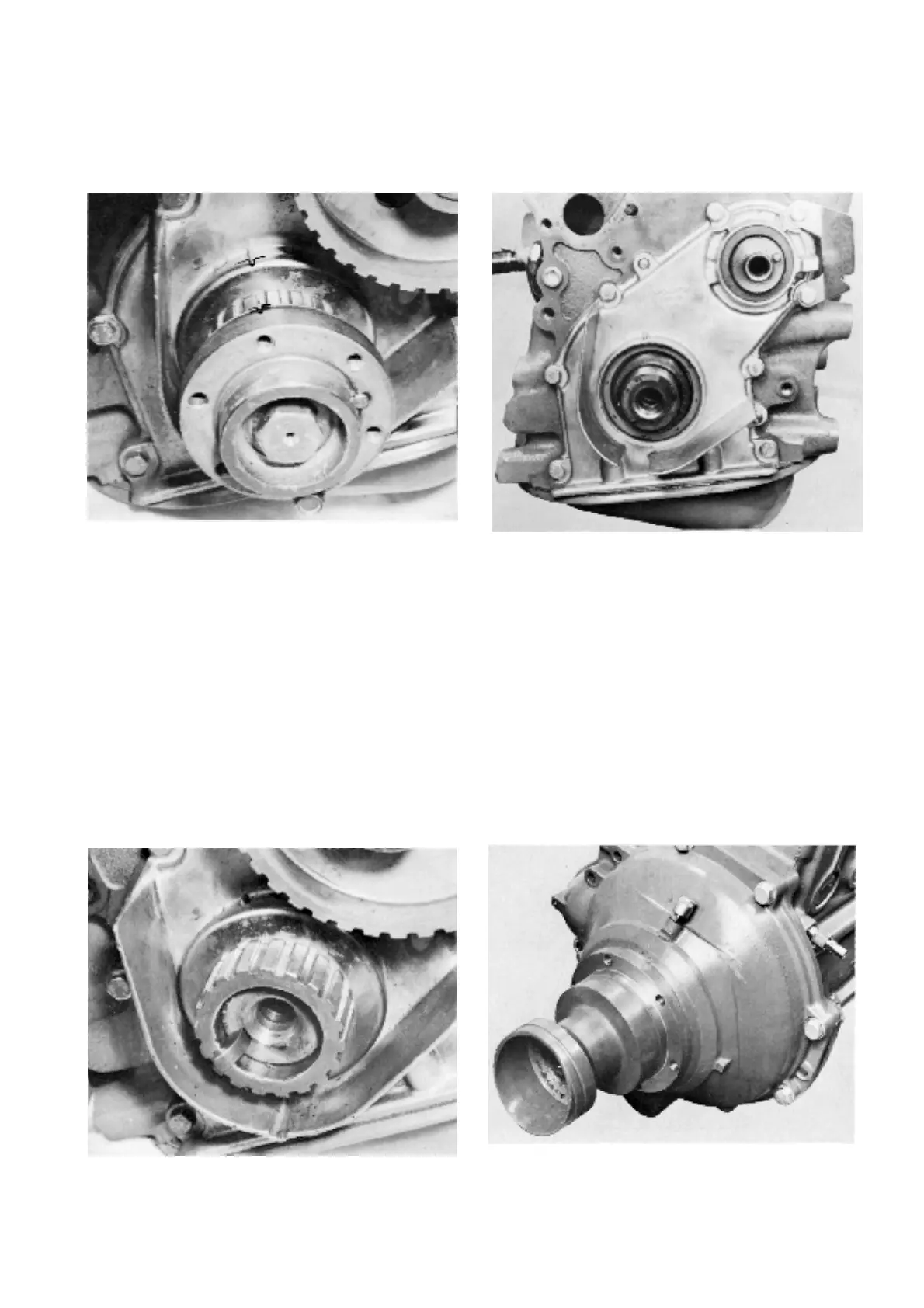

25. Remove the centre screw and pull off the carrier
and outer guide plate from the crankshaft.
26. Remove the key and pull off the pulley and the
inner guideplate from the crankshaft.
27. Remove the screws from the sealing flange. The
flange is also tightened with two of the screws in
the oil sump. Remove the flange plate and re-
move the seals. Use tool 999 5025 for the small
seal and tool 999 5024 for the large seal.
28. Unscrew the flywheel cover’s four screws and the
three screws which hold the protective plate on
the underside between the cover and the cylinder
block.
