Repair - MS2 reverse gear and upper gear housing, sailboat drive
Reverse gear MS2
Output gear housing,
disassembly

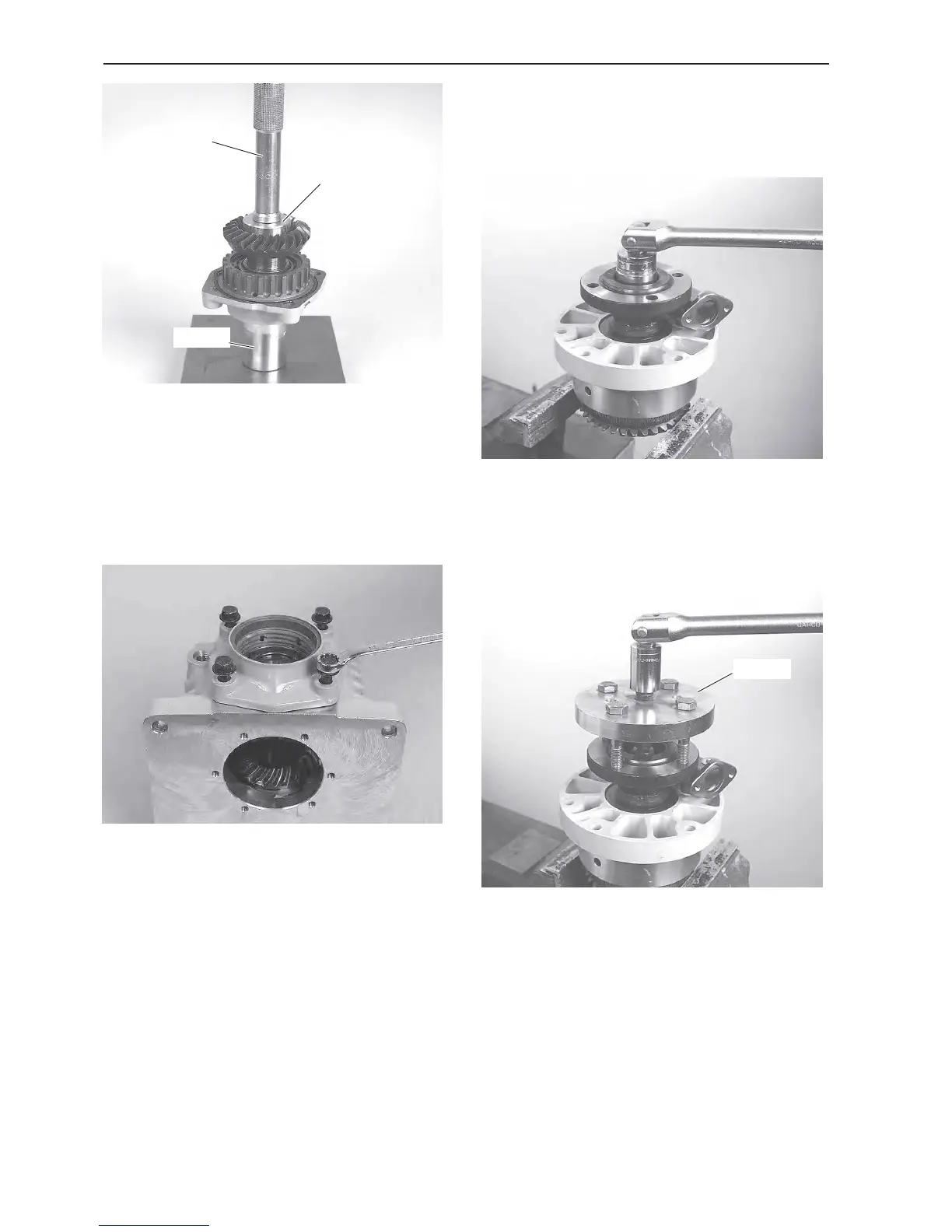

52. Remove the nut.
Socket size: 27 mm
53. Disassemble the propeller shaft flange. Use tool
no, 884078, wrench dimension 19 mm, or a claw pull-
er.
Pull the seal ring off the propeller shaft flange.
50. Press the gear wheel into the upper bearing hous-
ing. Use tool no. 884728, shaft 9991801 and 884739
as a support for the inner race.
51. Install the upper bearing housing on the reverse
gear.
884739
9991801
884728
884078
