Repair of MS2V reverse gear, angle gear
Pinion,
disassembly

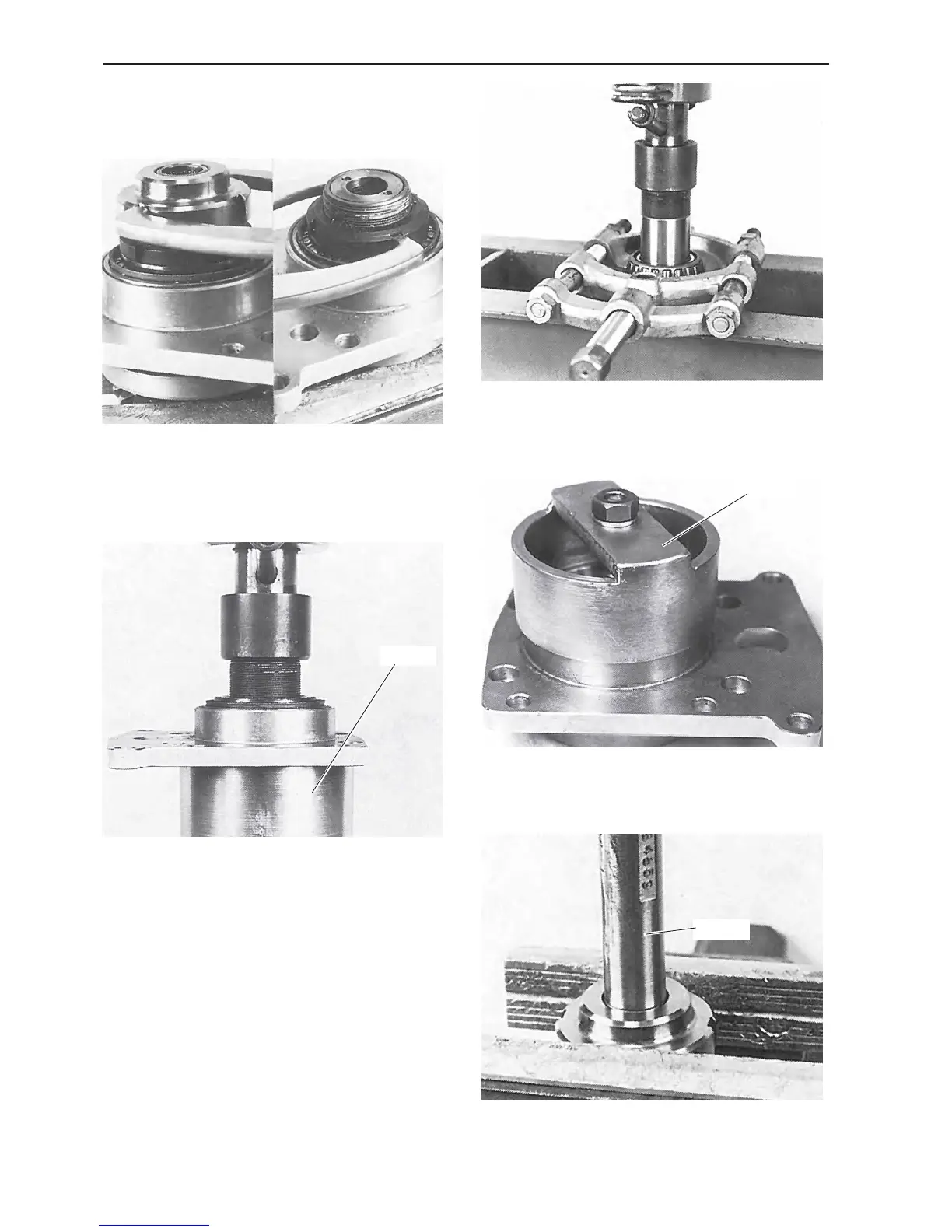

12. Fix the pinion in a vise and undo the two nuts with
a hook wrench.
13. Put the pinion in sleeve 884723 and press out the
pinion, which also removes upper roller bearing.
14. Remove the roller bearing from the pinion, using a
knife extractor and press.
15. Remove the two bearing races in the pinion hous-
ing with tool no. 884720.
16. Remove the needle roller bearing in the pinion nut
with mandrel 884859.
884720
884723
884859
