55
Repair of MS2V reverse gear, angle gear

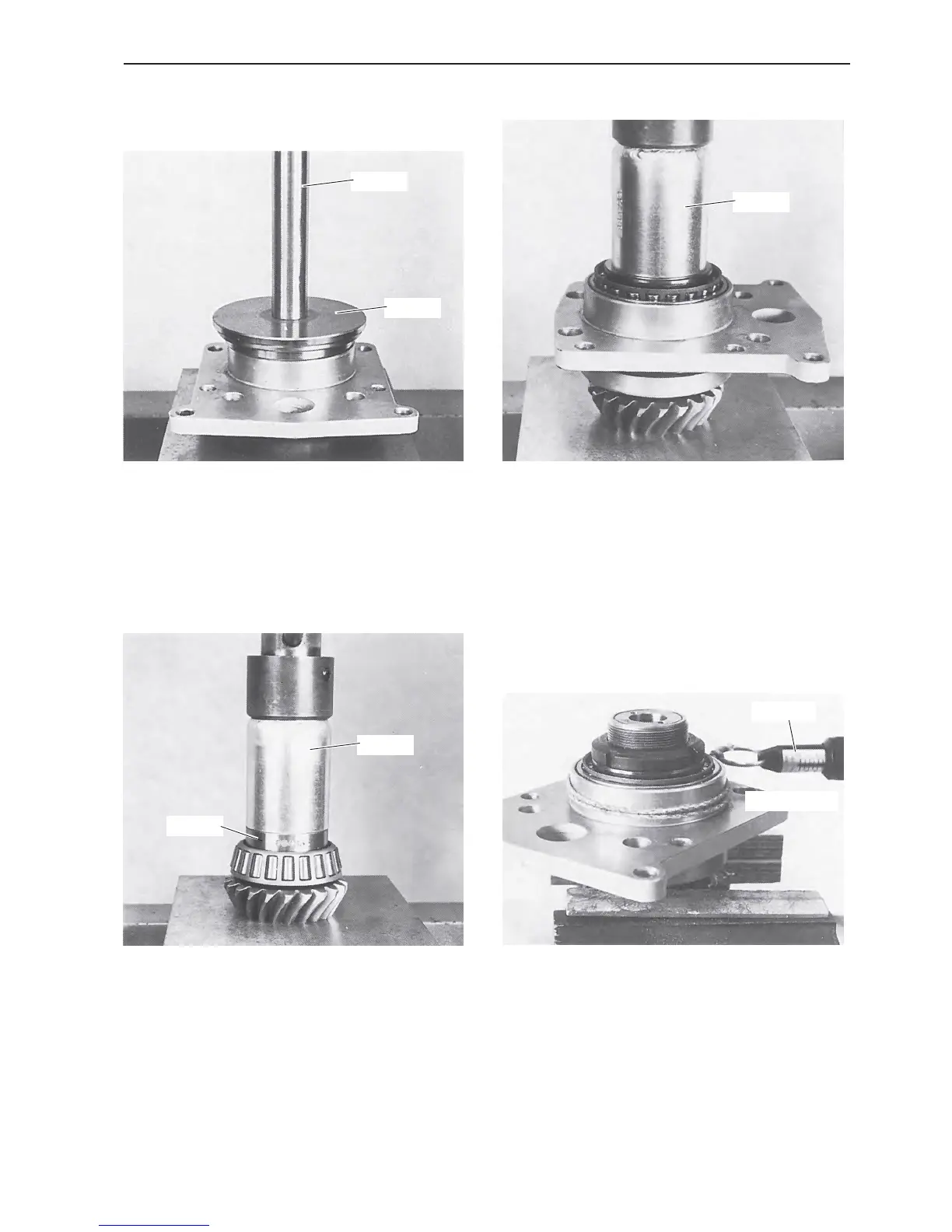

18. Install the inner roller bearing on the pinion, use
the two sleeves 884732 and 884836 .
19. Place the pinion in the housing (turn the housing
so that the recessed holes for the socket cap screws
are on top). Press the other roller bearing on, using
tool no. 884732.
NOTE! Do not press the bearing until it bottoms.
Some clearance must be left. When the nut is tight-
ened, the bearing housing is pressed together and the
clearance disappears.
20. Apply thread locking fluid, Volvo Penta part no.
1161053-2 on the threads of the nut and install it with
the chamfered side upwards.
Start off with low torque and check the preload with a
spring balance 9985494 and a piece of string wrapped
round the bearing housing.
Pre-load: 10,0-17,5 N (2.25-3.93 lbf).
Pinion,
assembly
17. Install the bearing races in the pinion housing with
tool 884834 and shaft 884859.
884859
884834
884732
884836
884732
9985494
2.25-3.93 lbf
