39

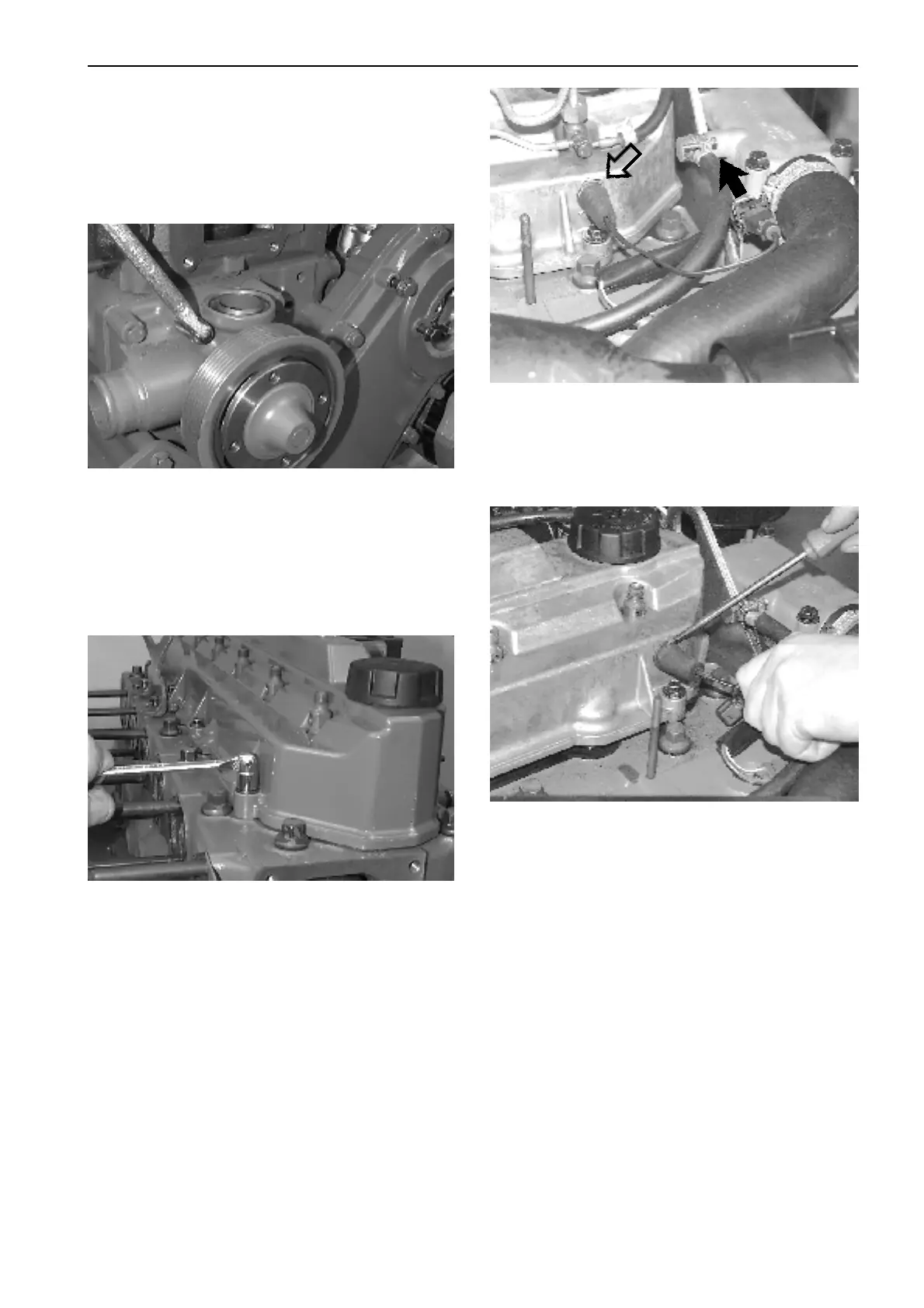

Dismantling cylinder block
Removal
1
Remove circulation pump. Socket 12 mm.
2
KA(M)D44P-A
Remove the valve cover. Remove the seal against
the valve cover (the O-rings, washer and spring) on
each injector.
Inspect the valve cover gasket. If it is undamaged
the gasket does not need to be changed.
KA(M)D44P-B/44P-C/300
Remove the clip on the rubber grommet for the cable
to the injector on cylinder 1. Separate the connector.
Remove the screws for the valve cover. Carefully
press the rubber grommet in using a screwdriver at
the same time lifting the valve cover slightly. Insert
the cable through the hole. Remove the valve cover.
Remove the seal against the valve cover (the O-
rings, washer and spring) on each injector.
NOTE! The springs on cylinder 1 cannot be removed
before the injector is removed from the cylinder head.
Inspect the valve cover gasket. If it is undamaged
the gasket does not need to be changed.
Repair Instructions
