62

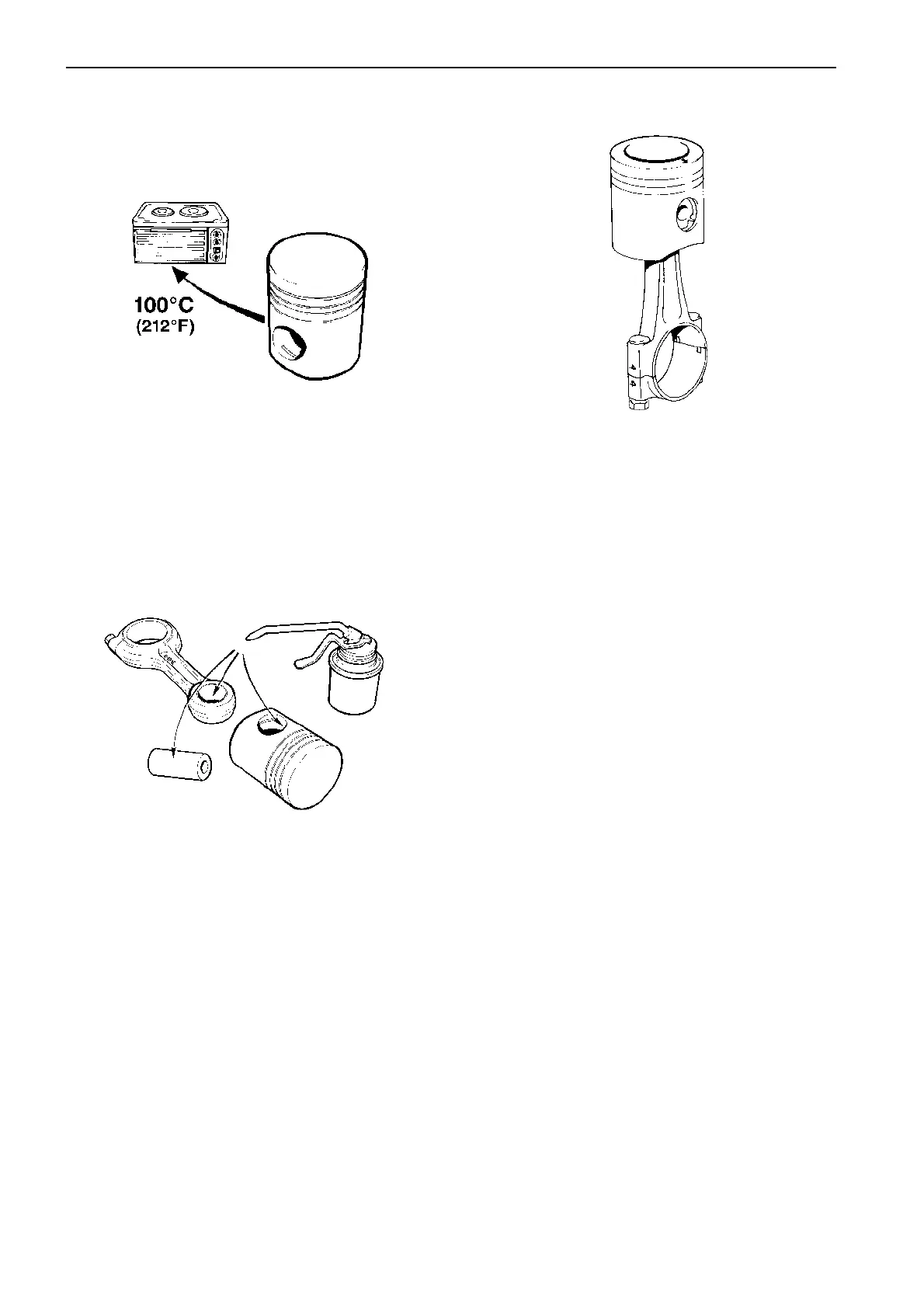

Piston, installing
1
Install one snap ring in the piston. Heat the piston to
approximately 100°C.
2
Lubricate the piston, piston bolt and connecting rod
bushing with engine oil.
Repair Instructions
3
Position the piston and connecting rod so that the
front marking on the pistons (arrowed) and the num-
bering on the connecting rods is in the position illus-
trated.
4
Carefully push in the piston bolt with a suitable drift
and install the other snap ring.
NOTE! The piston bolt should be pushed in easily not
hammered in.
