Repair Instructions
Flywheel housing,
reconditioning
Special tool: 884 596
Dismantling
1

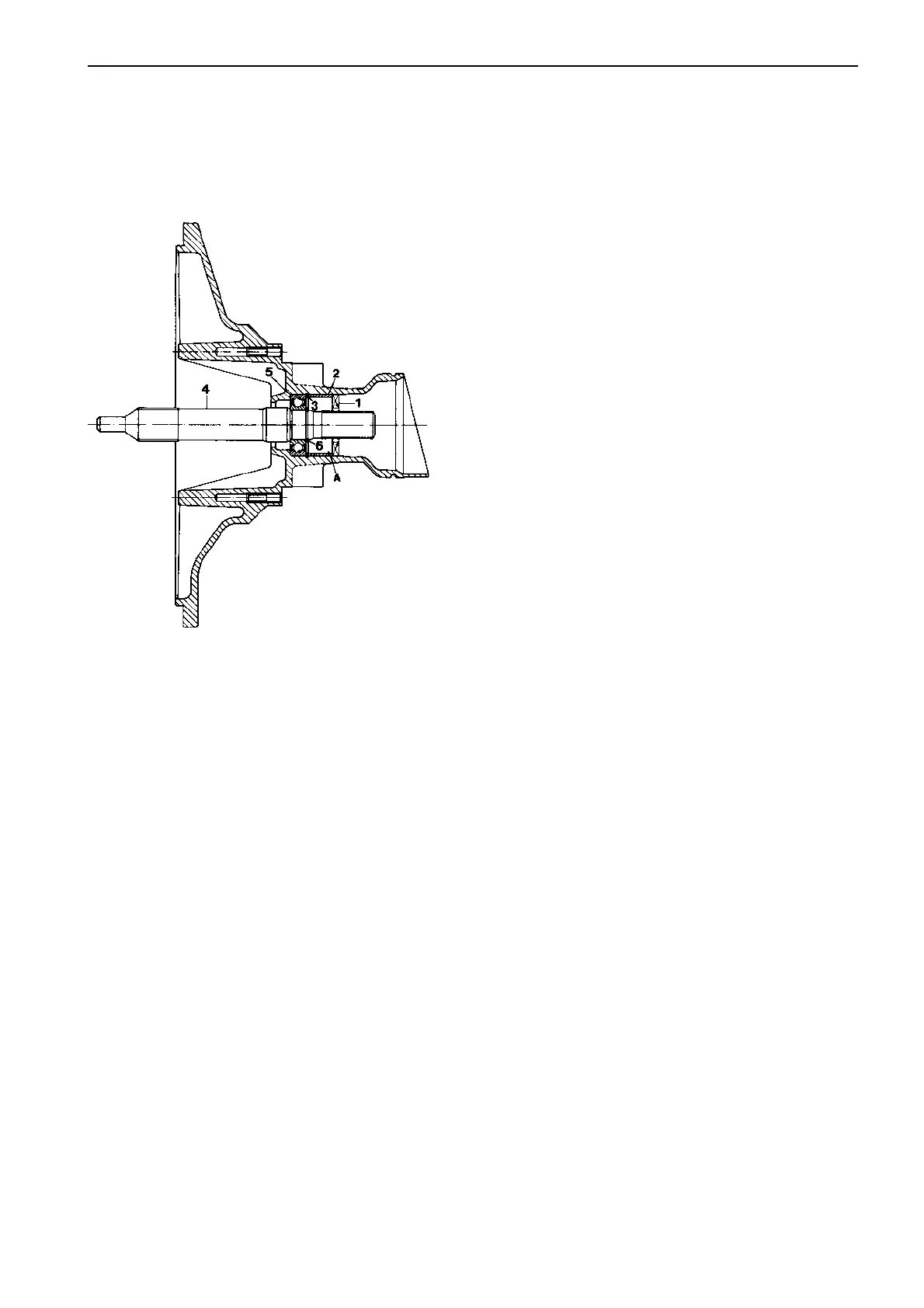

Remove sealing ring (1) and bushing (2) and snap ring
(3).
2
Tap out the shaft (4) with bearing (5) using a plastic
mallet.
3
Remove the small snap ring (6) from the shaft. Press
off roller bearing with drift 884 596.
Reassembling
4
Press on the new bearing using drift 884 596. Install
snap ring.
5
Press the shaft into the housing with drift 884 596.
Ensure that the snap ring (6) locates correctly in the
tool notch. Fix the shaft with snap ring (3).
6
Press in the bushing (2) with drift 884 596. Fill cavity
“A” with grease P/N 1141 644 and press in the seal
(2) with drift 884 596.
