Introduction
1.10 Signs and symbols (up to serial no. AH01658)

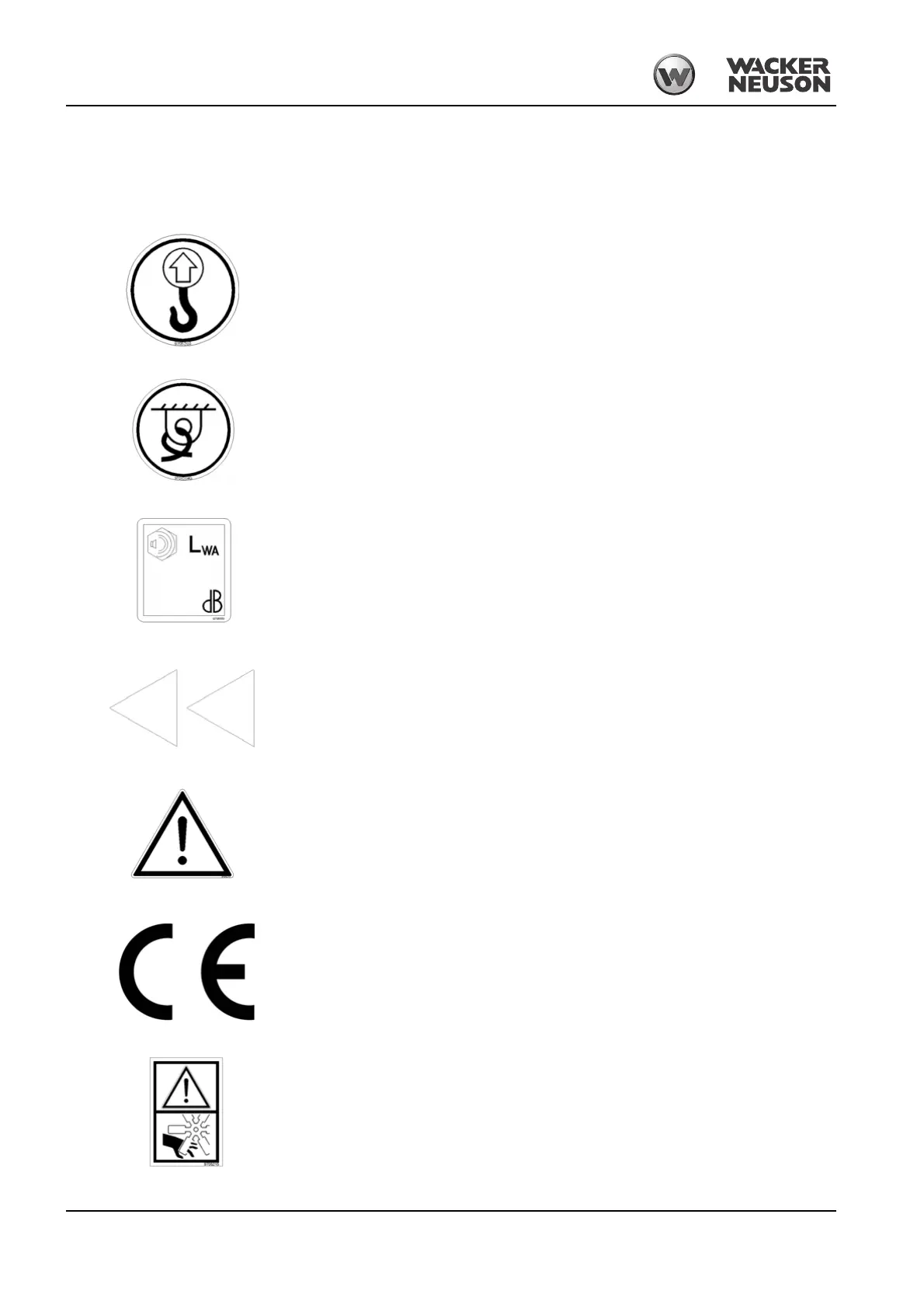

The following states signs and symbols that do not contain explanatory text and that are
not explained in the following chapters.
...on the outside of the machine
Description
Lifting points for raising the machine.
– see chapter 3.45 Loading and transporting the machine on page 3-72
Location
On either side of the stabilizer blade, and on either side of the boom
Description
Points for tying down the machine.
The mounting points are used for tying down the machine during loading and transport –
see chapter 3.46 Tying down the machine on page 3-73
Location
On either side of the stabilizer blade, and on either side of the undercarriage
Description
Noise levels produced by the machine.
L
WA
= sound power level
Other information – see chapter 6.9 Noise levels on page 6-6
Location
Next to the cab door.
Description
This label shows the forward driving direction.
Location
On either side of the undercarriage.
Description
General indication of danger
This label warns persons standing or working near the machine of an existing risk within
the area of increased risk around the machine.
Location
On either side of the boom.
Description
The CE mark means that the machine meets the requirements of the Machine Directive
and that the conformity procedure has been performed. The machine meets all the health
and safety requirements of the Machine Directive.
Location
On the type label.
Description
Cutting hazard. Cooling fan can cut when rotating.
• Stop the engine before opening the engine cover.
• Stay clear of the engine compartment if the fan is still running.
Location
At the rear on the engine cover of the machine, in the engine compartment.
Fig. 9: Label for points used for tying down the machine
Fig. 10: Noise level label
XX
Fig. 11: Direction indicator
Fig. 14: Prohibitory label
