Introduction
Description
This label shows the control mode selected on the ISO/SAE valve.
– see chapter 3.50 Changeover valve for control pattern ’’B’’ (option) on page 3-79
Location
Inside the cab.
Description
Read the Operator’s Manual before working with the machine.
Location
Inside the cab on the right-hand trim.
Description
Pinch point hazard.
1 Always use the handles to open and close the front window.
2 Always lock the front window with both locks.
3 Ensure that no-one hits the window with their head as you open and close it.
Location
On the front window.
Description
Press the boom and the stabilizer blade into the ground as you leave the machine, remove
the starting key and place chocks on the left and right under the tracks – see Parking
checklist on page 3-19.
Location
Cab roof lining.
Description
This label describes the pedal and control lever functions.
– see Control levers/control pattern ’’A’’: Overview on page 3-75
Location
Cab roof lining.
Description
Describes the throttle lever function.
– see Throttle on page 3-20
Location
Below the throttle lever.
Description
Describes the stabilizer blade lever function.
Location
Inside the cab.

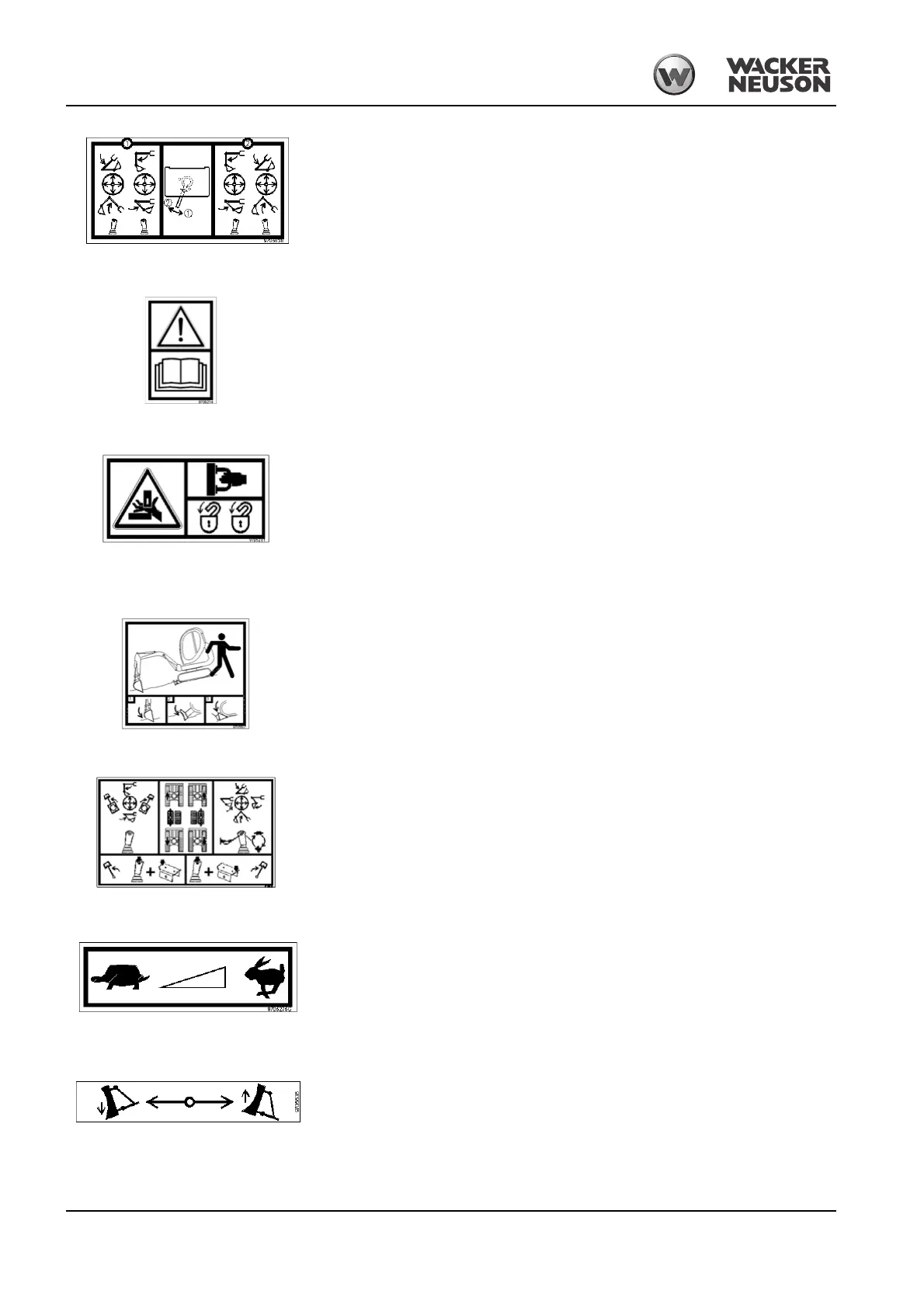

Fig. 21: Changeover valve for SAE/ISO controls
Fig. 22: Read the Operator’s Manual
Fig. 23: Danger of being caught up
Fig. 24: Parking the machine correctly
Fig. 25: Controls
Fig. 26: Describes the throttle lever function
Fig. 27: Stabiliser blade lever function
