General Information BPU 2440/2950 Repair
wc_tx000264gb.fm 12
3.4 Reference Numbers ( )
Repair procedures contain reference numbers enclosed in
parentheses ( ). These numbers refer to the item numbers shown on
the assembly drawings and other detailed drawings. They are included
to aid the mechanic in identifying parts and assembling components.
3.5 Weight Block
See Graphic: wc_gr000843
The weight block symbol gives an approximate weight measurement
to aid the mechanic when lifting / hoisting larger components.

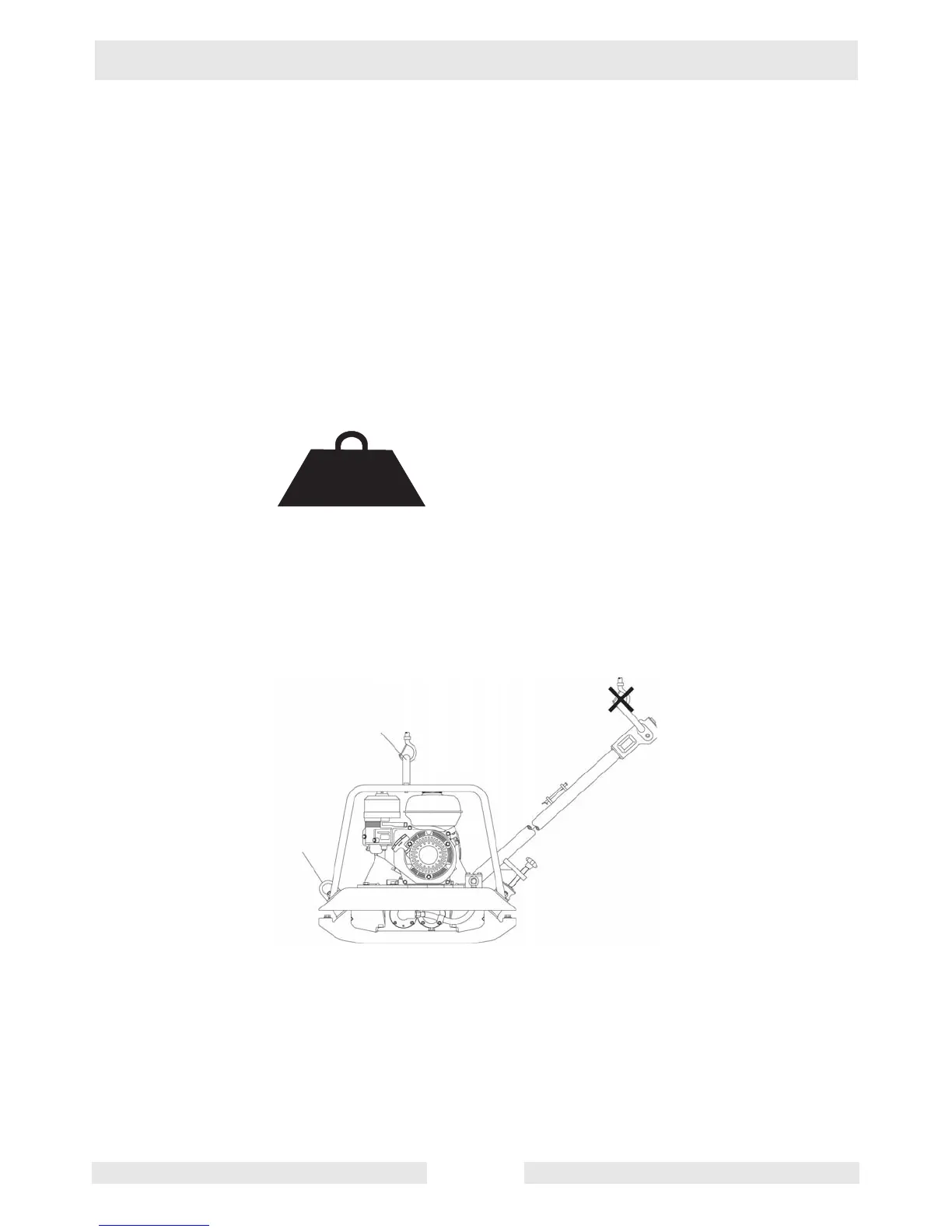

3.6 Lifting and Transporting the Machine
See Graphic: wc_gr000986
Lift the machine only by the lifting eye (a). Do not lift the machine by
the control handle. When lifting, use an appropriate crane or hoist with
minimum load-bearing capacity of 200 kg (440 lbs.).
When transporting the machine, secure it using the tie-down brackets
(b).
250 kg
(550 lbs.)
wc_
