Wacker Neuson BPU 2950 series User Manual

Repair Procedures BPU 2440/2950 Repair
wc_tx000329gb.fm 46
5.14 Engine Replacement—Honda

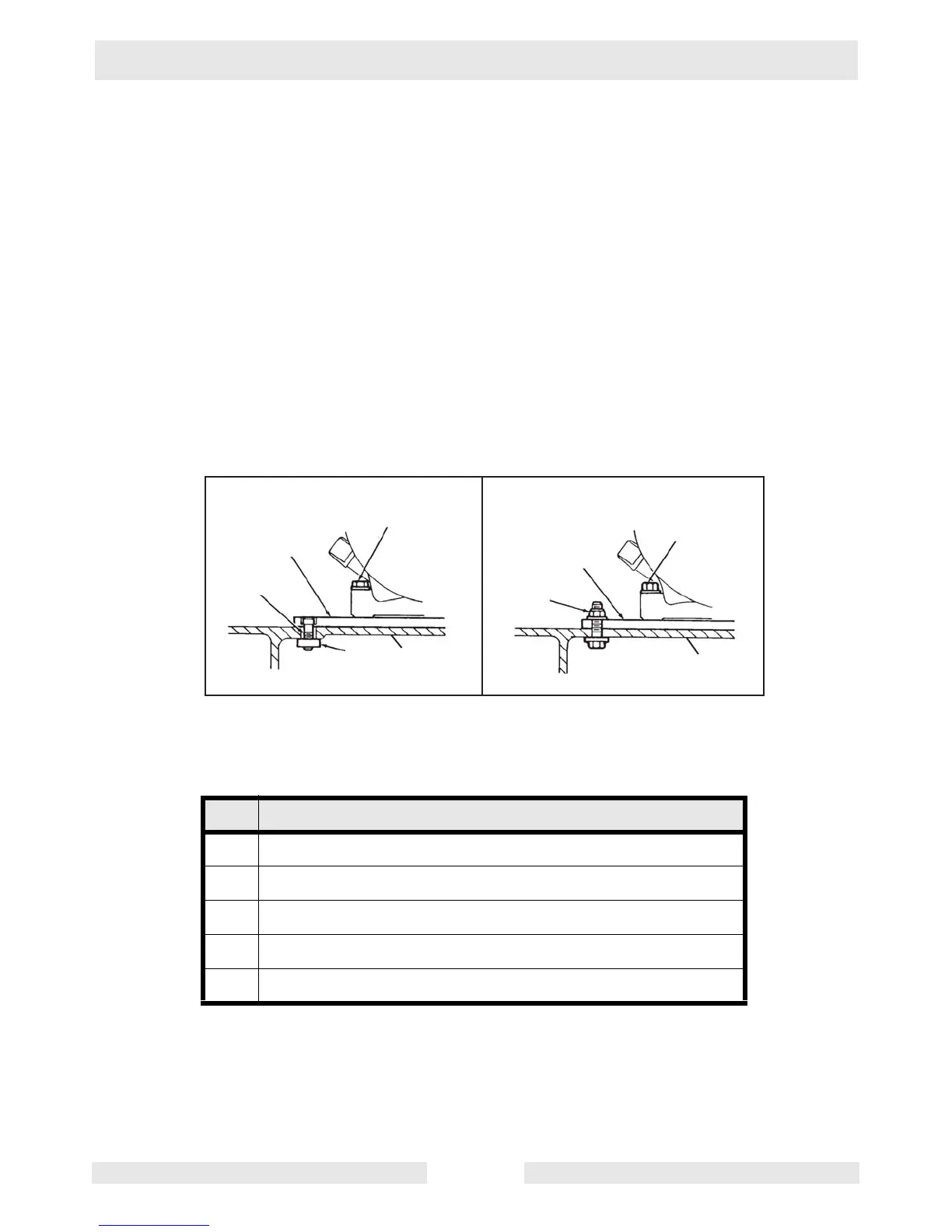

See graphic: wc_gr001471
5.14.1 Using an appropriate hoist or crane to lift engine, place the engine on
the upper mass and secure the engine with the four mounting bolts (a).
Torque the bolts to 18 ft.lbs. (25 Nm) on BPU 2440A models; 36 ft.lbs.
(49 Nm) on BPU 2950A models.
5.14.2 On older models, secure the beltguard to the engine using the four
mounting bolts.
On newer models, secure the beltguard to the baseplate using the four
M10x25 mounting bolts.
5.14.3 Coat engine drive shaft with anti-seize and re-install drive belt, pulley,
and clutch onto drive shaft.
5.14.4 Re-install tubular frame to upper mass.
Ref. Note
1. Baseplate
2. Upper Mass
3. Use Loctite 242 or equivalent on screw when installing.
4. Mounting bar
5. Lock nut
BPU 2440A
a
a
1
3
4
2
1
5
2
wc_gr001471
BPU 2950A
a
