Wacker Neuson BS 60-2 Repair Manual

Engine and Upper Machine Components Repair
42 wc_tx001546gb.fm
4.8 Replacing the Guide Handle (4-stroke models, 2010 and later)
Requirements
• Machine shut down and cool
• Torque wrench
• Loctite® 243
Removal
Perform the procedure below to remove the guide handle.
4.8.1 Remove the silencing cover. See topic Replacing the Silencing Cover.
4.8.2 Remove the throttle control. See topic
Replacing the Throttle Control.
4.8.3 Remove the stop switch. See topic Replacing the Stop Switch.
4.8.4 Drain the fuel tank (optional).

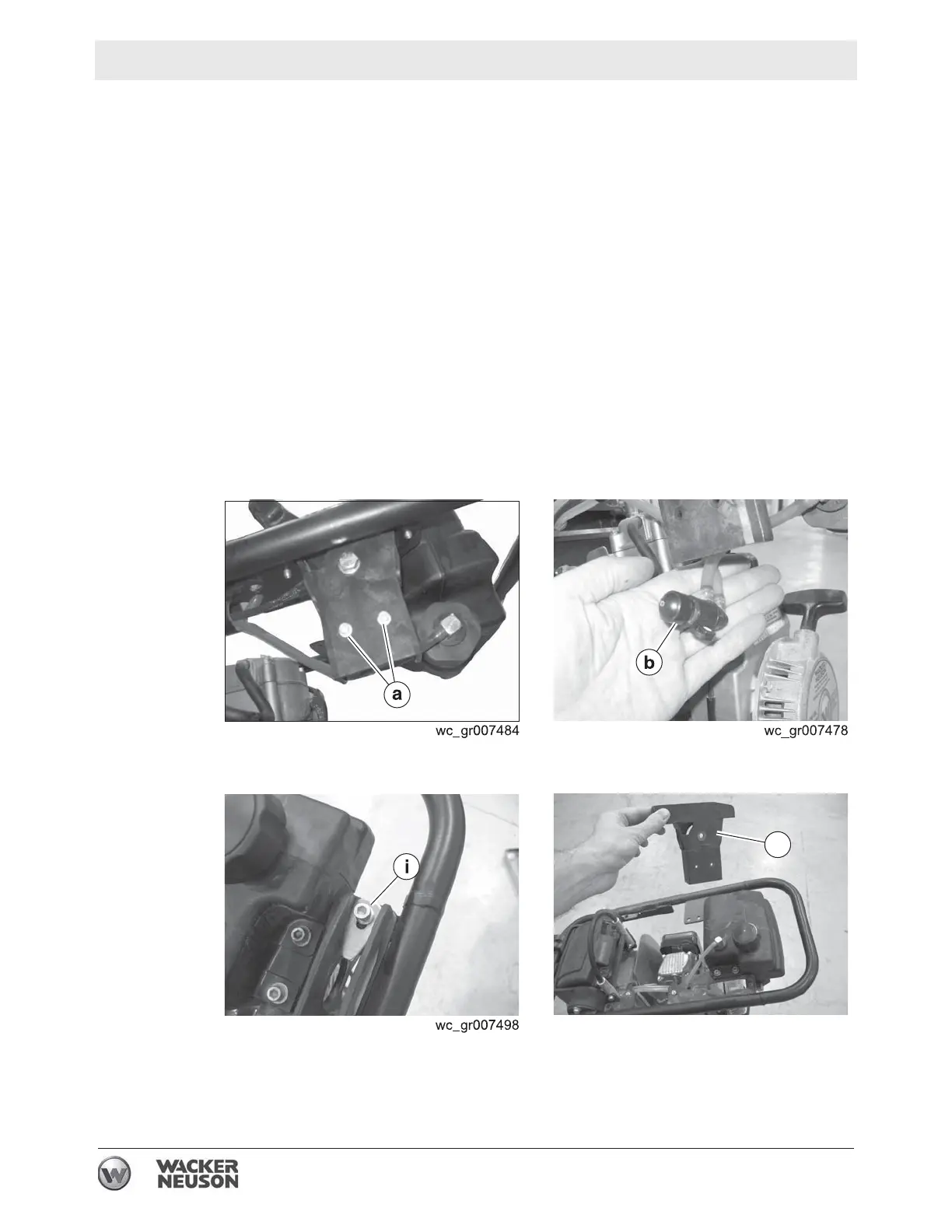

4.8.5 Remove the screws
(a) that hold the fuel valve. Allow the fuel valve (b)
to hang freely.
4.8.6 Remove the screw that holds the throttle stop
(i) and remove the
throttle stop.
4.8.7 Remove the throttle control bracket
(j).
4.8.8 Remove the screws
(e) that hold the fuel tank to the guide handle.
wc_gr007499
a
1
j
