Wacker Neuson BS 60-2 Repair Manual

Engine and Upper Machine Components Repair
46 wc_tx001546gb.fm
4.9 Replacing the Guide Handle (pre-2010 models)

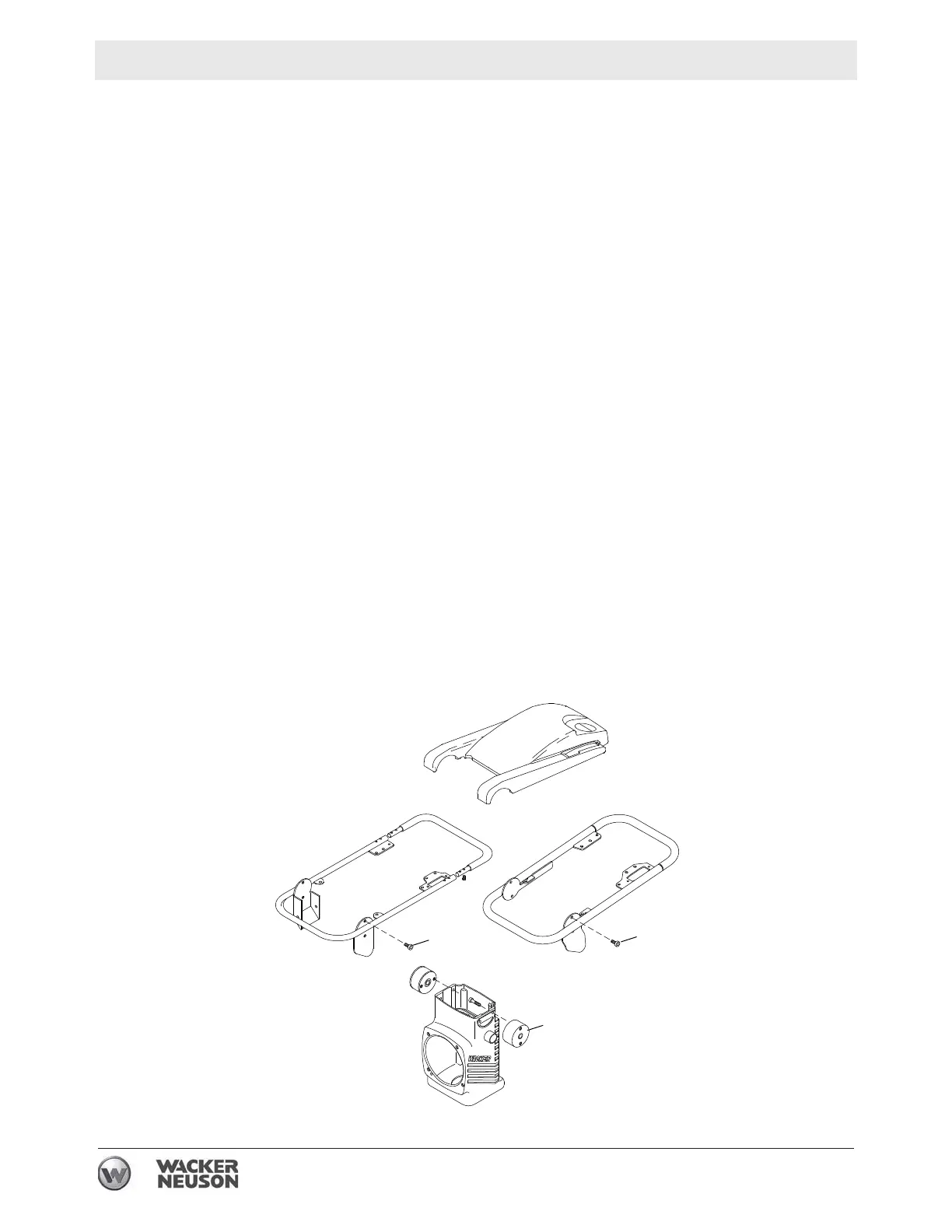

See Graphic: wc_gr003704
Recommended Tools
Ratchet Wrench
Socket: 10 mm
Screwdriver
Pliers
Loctite 243 (Blue)
4.9.1 Close the fuel valve.
4.9.2 Disconnect the fuel line.
4.9.3 Loosen the throttle cable holder.
4.9.4 Disconnect the throttle cable from the throttle cam lever.
4.9.5 Remove the silencing cover.
4.9.6 Remove the four hex head cap screws (d) that hold the guide handle
to the shock mounts (e). When reinstalling the guide handle, apply
Loctite 243 and torque the screws to 23 Nm (17 ft.lbs.).
4.9.7 Move the guide handle down and away from the shock mounts.
4.9.8 Lift the guide handle from the rammer.
Note: To inspect or change the shock mounts, it is not necessary to
disconnect the fuel line or the throttle cable.
a
wc_gr003704
a
b
