G 14 Maintenance
wc_tx001169gb.fm 55

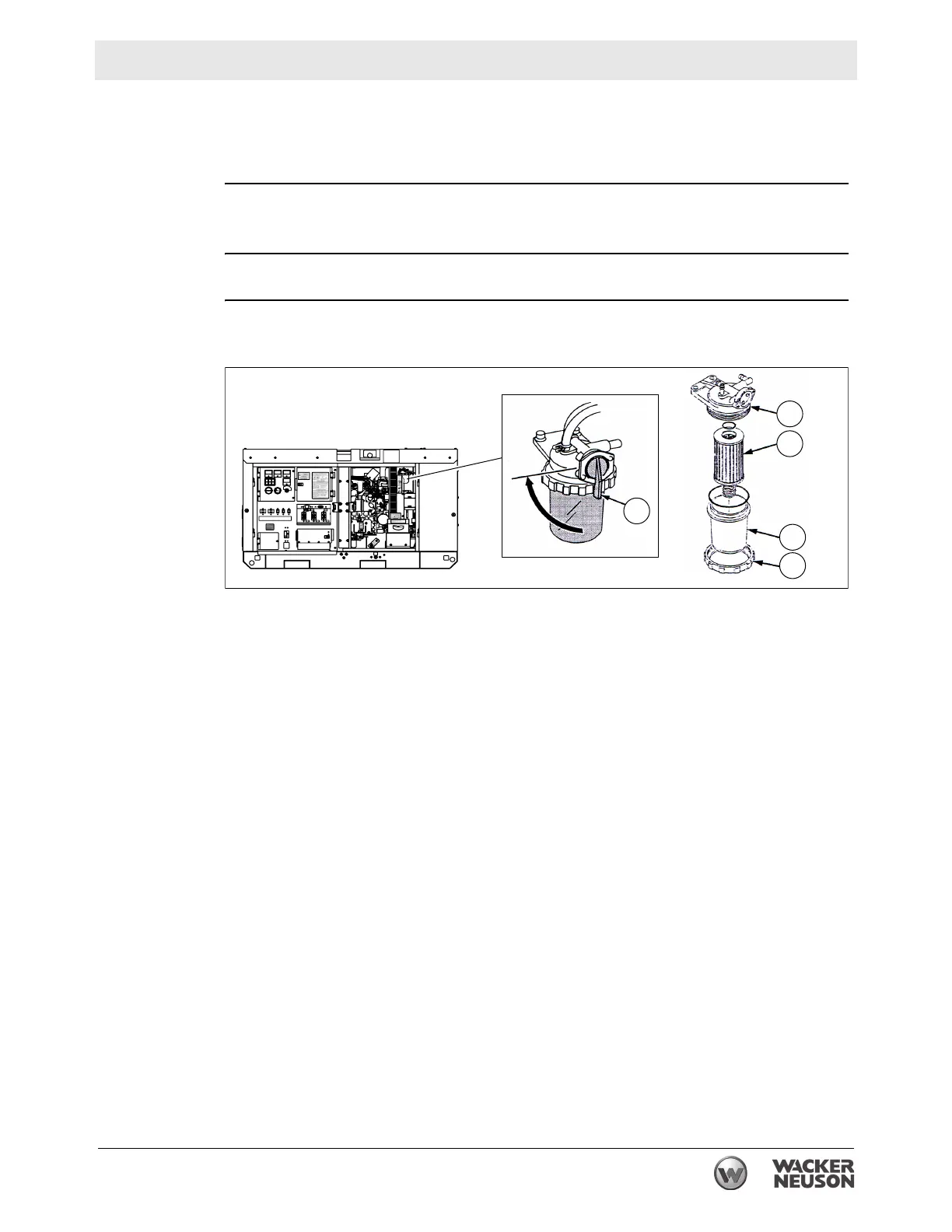

6.8 Replacing the Fuel Filter Element
Location
The fuel filter is located behind the access door on the left (panel) side of the
machine.
Prerequisites
Engine is stopped
Replacement fuel filter element is on hand
When
Replace the fuel filter element every 500 hours of operation.
Procedure
Follow the procedure below to replace the fuel filter element.
1. Close the fuel filter lever (a).
2. Turn the screw ring (b) clockwise to loosen it. Remove the screw ring and filter
bowl (c) from the top cap (d).
3. Remove the fuel filter element (e) from the fillter bowl and dispose of it in an
environmentally conscious manner.
4. Rinse the inside of the top cap and filter bowl with diesel fuel, and wipe dry.
5. Install the replacement fuel filter element inside the filter bowl.
6. Re-assemble the screw ring, filter bowl and the top cap, and turn the screw ring
counter-clockwise to tighten it.
NOTICE: Do not allow dust, water, or dirt to enter into the fuel system while replac-
ing the fuel filter element. These contaminants can cause the fuel injection pump or
injection nozzle to malfunction.
wc_gr006285
a
b
c
e
d
