1A-24
1A OPERATION G50/G70/G85
208
120
240
120
480
277
208
120
240
120
480
277
114896
NEVER CHANGE SWITCH POSITION WITH ENGINE RUNNING.
..
..
~~~
..
NUNCA CAMBIE LA POSICION DEL INTERRUPTOR AL ESTAR
MARCHANDO EL MOTOR. YA QUE ESTO PODRIA CONDUCIR A
UNA DESCARGA ELECTRICA Y DANOS EN EL EQUIPO.
NIEMALS SCHALTER UMSTELLEN WENN MOTOR LAUFT.
VERURSACHT ELEKTRISCHEN SCHLAG UND BESCHADIGUNG
DES GERATES.
NE JAMAIS CHANGER LA POSITION DE L'INTERRUPTEUR
PENDANT QUE LE MOTEUR EST EN MARCHE. IL POURRAIT
EN RESULTER RISQUE D'ELECTROCUTION ET DOMMAGES
A LA MACHINE.
RESULTS IN ELECTRIC SHOCK AND DAMAGE TO MACHINE.
5. Press in the Emergency Stop Button (b). The LCD
panel should read “EMERGENCY STOP”, and the
red LEDs (g) should light up. Release the stop button
after verifying the display and the LED, and return the
Engine Start Switch to off “O”.
6. Start engine by moving the Engine Start Switch to
the “RUN/START” position.
The LCD display will read “STARTING ENGINE” as
the engine begins its crank cycle. The normal cycle
is for the engine to crank for 15 seconds, then rest for
10 seconds. This cycle will repeat three (3) times. If
the engine does not start within this time, the Engine
Control Module will shut down the engine and “FAULT
OVERCRANK” will be displayed on the LCD panel.
To repeat crank cycle, return start switch to off “O” to
reset Engine Control Module. Allow starter motor to
cool between start-up attempts.
1.27 Manual Start-up
Before starting the generator set for the first time, thor-
oughly review the pre-start-up checklist in the previous
section. Proceed with generator start-up only after check-
ing each item in that section.
Thoroughly read and make sure you understand the
engine Operator’s Manual supplied with the generator.
Follow the steps below and the illustration on the oppo-
site page in the order listed.

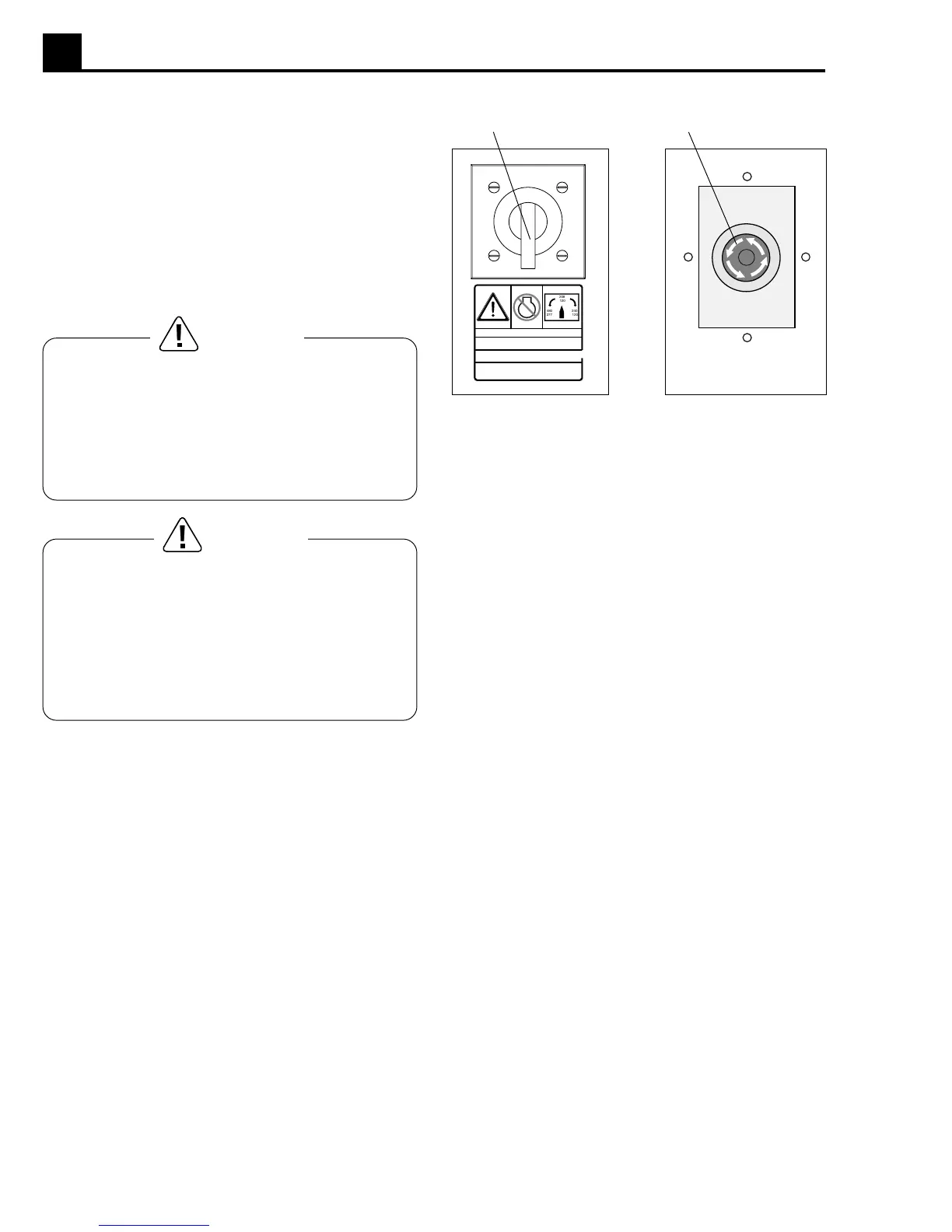

1. Check position of Voltage Selector Switch (a) and
make sure it is set for the desired voltage output.
Lock the switch be in place.
2. Make sure the Engine Start Switch (e) is in the off “O”
position.
3. Turn main line circuit breaker (c) and convenience
receptacle circuit breakers to off “O”. This will discon-
nect all loads from the generator.
4. Move Engine Start Switch (e) to “REMOTE START”
to check operation of engine control module. The
LCD panel should momentarily display “SYSTEM
OK” followed by “UNIT IN AUTO” and engine
information. Check fuel level and battery values.
Note:
The amber Warning Light
(d)
will come on if
the fuel level is below 25%, or engine temperature is
below 70° F. This will not prevent the engine from
starting.
E
M
E
R
G
E
N
C
Y
S
T
O
P
ab
1026SD77 1026SD84
Before placing the Engine Start Switch (e) in the
“REMOTE START” position, verify that the con-
tacts on any remote switch linked to the generator
set are OPEN. If the contacts on a remote switch are
closed, the generator will crank and start when the
Engine Start Switch is moved to the “REMOTE
START” position.
WARNING
WARNING
When using the generator as a standby or substitute
power supply, make sure the voltage and phase
rotation of the line connections match those of the
utility lines or of any other power source normally
used. Failure to match phase rotation and volt-
age may cause equipment connected to the gen-
erator to operate incorrectly! This could create
unsafe operating conditions.
To Next Page
