Wacker Neuson G70 User Manual

2A-8
2A MAINTENANCE G50/G70/G85

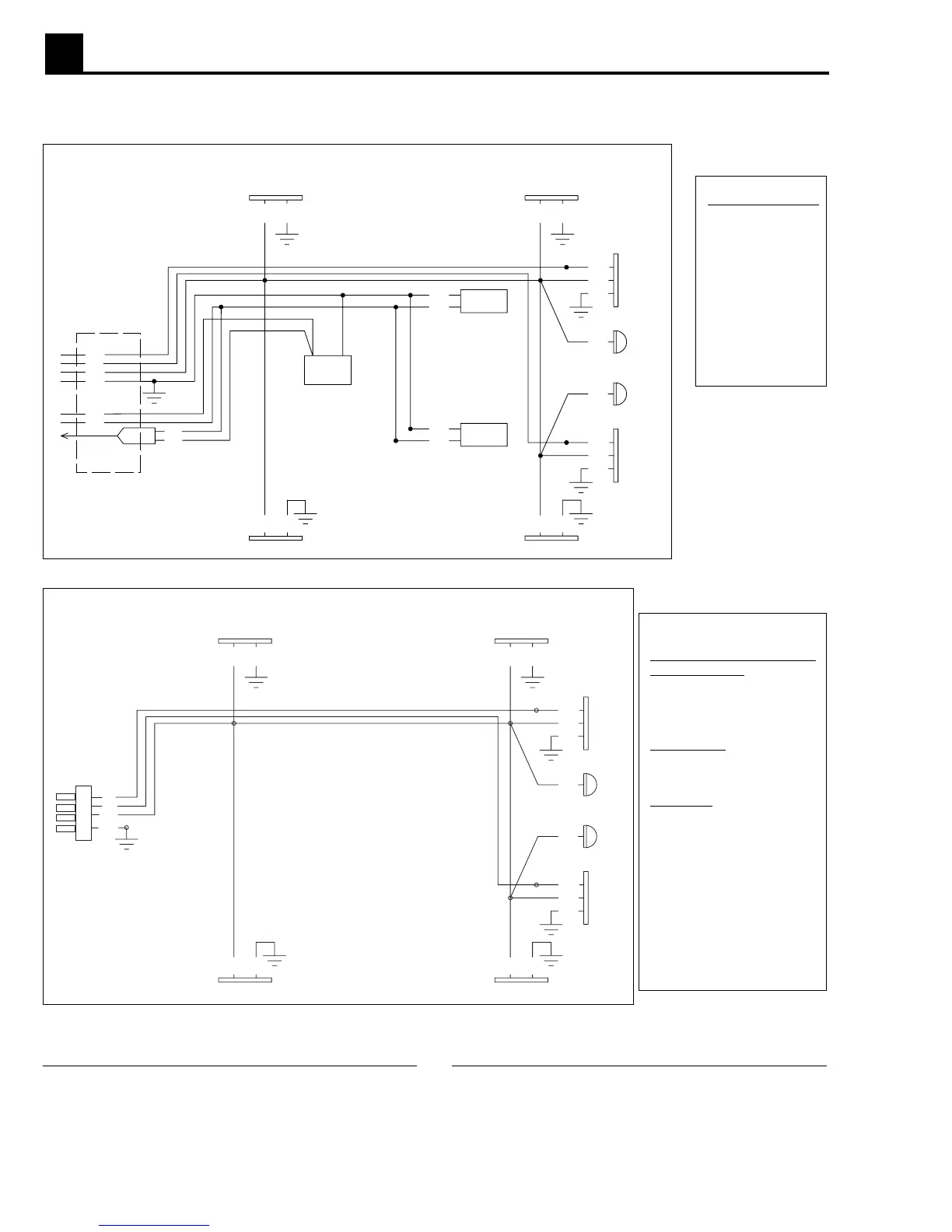

2.12 Trailer Wiring
Standard and Hydraulic Brakes
Electric Brakes
Ref. Description
1. Front right side amber light
2. Front left side amber light
3. Trailer plug
4. Battery
5. Brake solenoid
6. Right rear tail light
7. Licence plate holder lights
8. Left rear tail light
9. Rear right side amber light
10. Rear left side red light
Ref. Description
Colors in harness
and lights:
Rear tail light:
R - Brake light
Br - Tail light
B - Ground
Side lights:
R - Power
B - Ground
Harness:
G - Right brake light
and directional
Y - Left brake light and
directional
Br - Tail, side and
license plate
W - Ground
L - Electric brakes
B - Battery charge
+-
R
R
B
B
Br
B
B
B
R
Br
B
R
W
W
W
W
1
2
7
8
RBRB
B
L
6
9
10
5
4
Y
G
Br
W
B
L
7
5
3
R
R
B
B
Br
B
B
B
R
Br
B
R
RBRB
Y
G
Br
W
1
9
7
8
6
2
10
7
3
WIRE COLORS
B - BLACK
Br - BROWN
L - BLUE
R - RED
Y - YELLOW
G - GREEN
W - WHITE
1029SD01
1029SD02
