Operating manual Manual Powder System SPRINT XE
5 Description
18 Order number 2354920 | Edition 01/2023

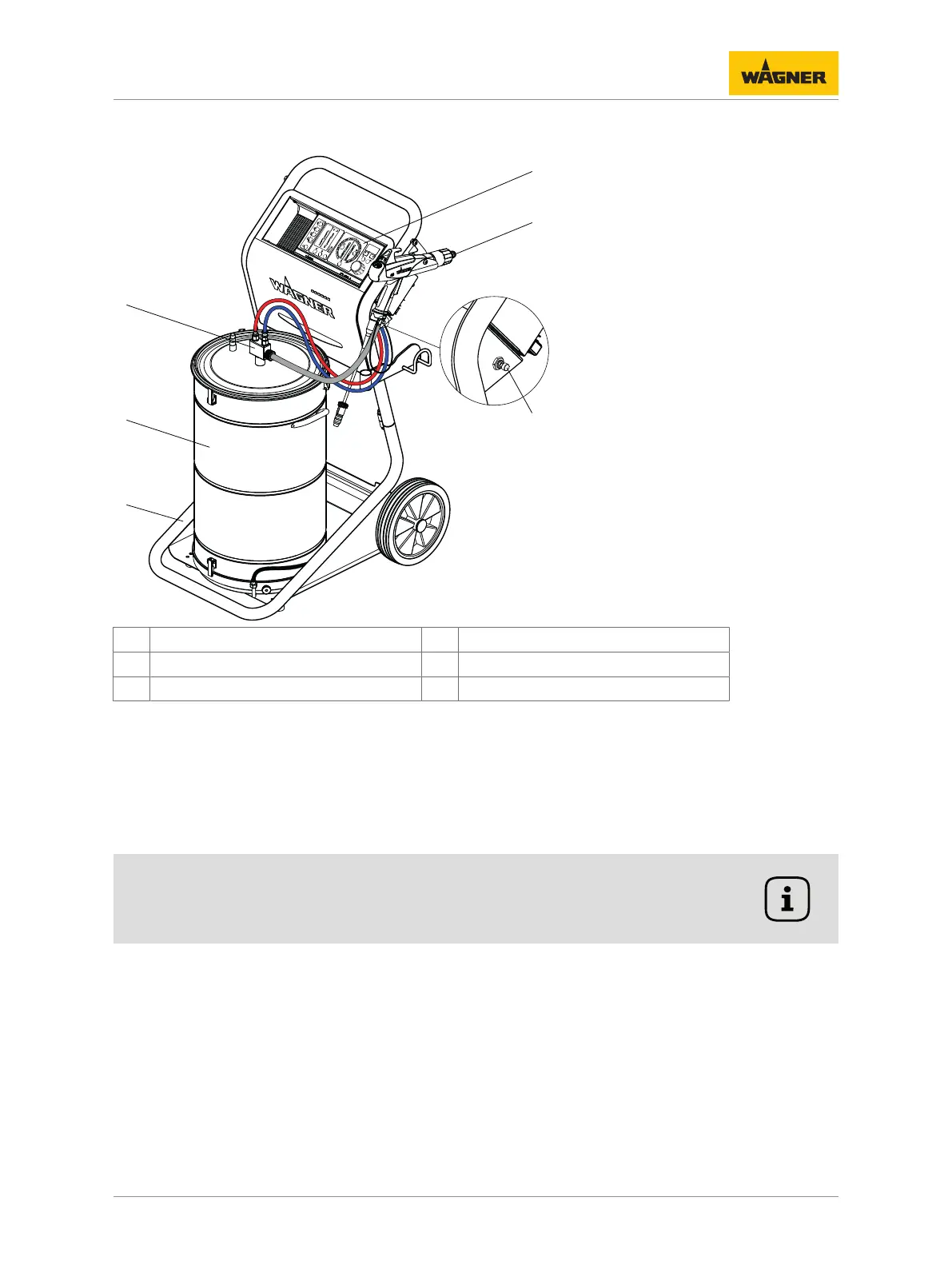

5.1.2 Sprint 60 L XE tank (without vibrator table)
1 Equipment trolley 4 60 L tank
2 EPG-Sprint XE control unit 5 Powder injector, PI-F1
3 PEM-X1 manual gun 6 Fluid air throttle
Mode of operation:
Through the powder injector (5), the powder is transported from the tank (4) to the spray
gun (3). By feeding fluid air into the fluid base of the powder tank (4), a homogeneous
powder/air mixture is generated and maintained during the entire process of the powder
removal from the tank. The powder quantity and the electrostatic charge of the paint
powder are regulated by the control unit (2). The fluid air setting is done using the throttle
(6).
Info
We recommend using a vibrator table when working with powders that are difficult to
feed (see chapter Conversion sets [859]).
5.1.3 Operating modes
5.1.3.1 Operation with Tribo gun
When operating the manual system with a Tribo gun, the set values (total air volume, feed
air volume, Tribo air volume) in recipes 1-4 must be adjusted. The setting of the values is
described in the operating manual of the EPG-Sprint XE control unit.
The set values for operating with the Tribo gun should be saved to individually selected
recipe locations.
When operating with a Tribo gun, parameter C11 on the EPG-Sprint XE control unit must be
changed to Tribo. Please refer to the control unit operating manual for the procedure.
