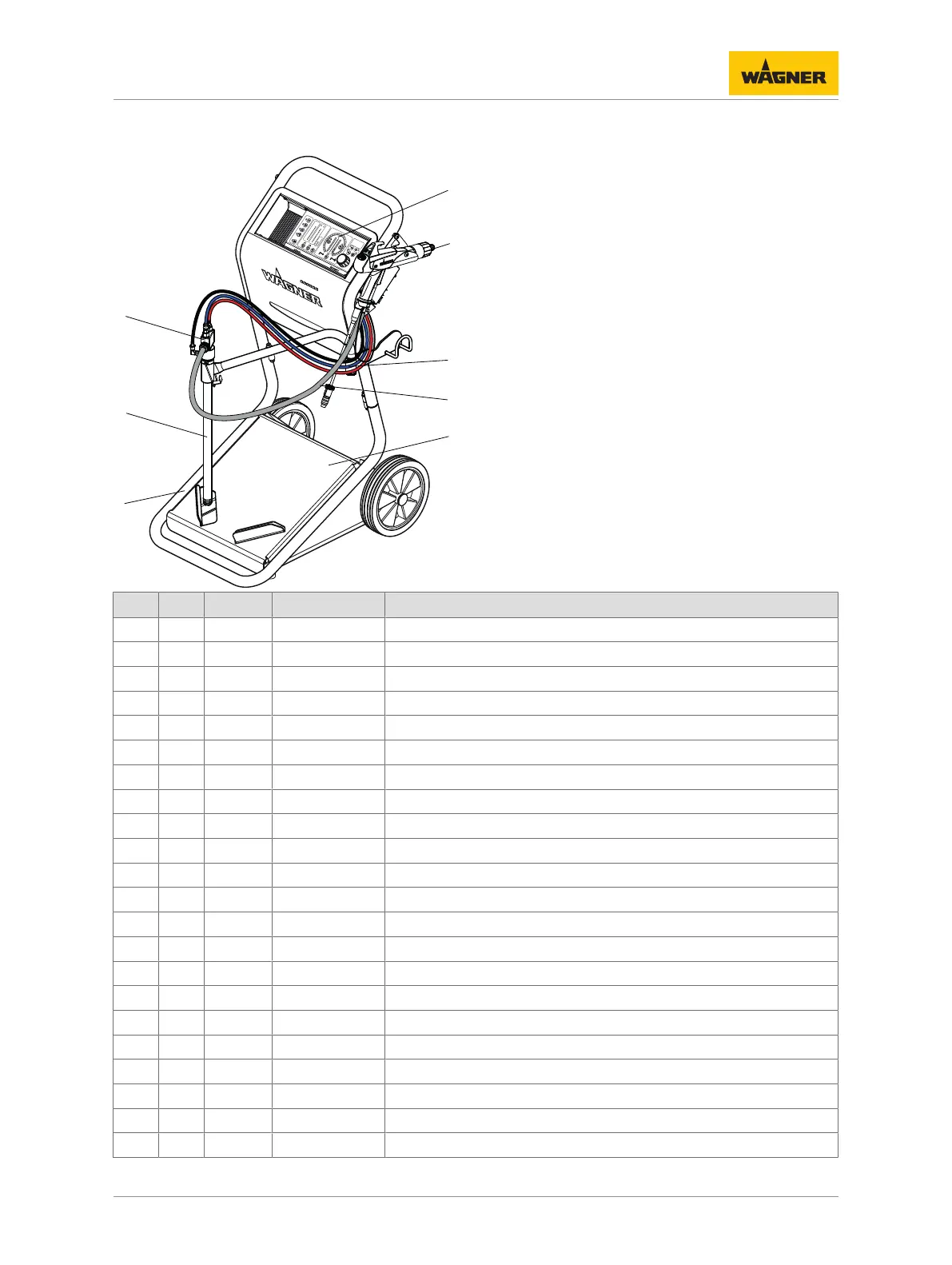

13.3 SPARE PARTS LIST OF SPRINT AIRFLUID XE MANUAL POWDER SYSTEM
P_05054
5
7
6
8
4
2
3
1
Pos K Stk Order no. Designation
2355400 Sprint Airfluid XE manual system (standard version)
2355402 Sprint Airfluid XE manual system (USA version)
2355800 Sprint Airfluid XE manual system (Japanese version)
1 1 2355405 Airfluid XE trolley (standard version)
1 1 2356434 Airfluid XE trolley (US/Japanese version)
2 1 2353221 EPG-Sprint XE control unit
9951116 Slow-acting fuse, 2A (included in EPG-Sprint XE)
3 1 241622 Powder injector, PI-F1
4 1 265281 Suction tube, ST 550/10
5 1 2322587 PEM-X1 manual gun
6 2306401 Sprint connection parts
6/1 1 2303714 Sealing coupling with anti-kink spring
6/2 1.3 m 9982079 Hose, black Ø 6 mm
6/3 1.3 m 700370 Hose, blue Ø 8 mm
6/4 1 935973 Sealing coupling with anti-kink spring
6/5 1.3 m 2302060 Hose, red Ø 8 mm
6/6 1 935974 Coupling plug with anti-kink spring
6/7 5 2327855 Velcro cable ties
7 1 2355337 Vibrator motor, 230V/50Hz (standard version)
7 1 2355338 Vibrator motor, 115V/60Hz (US/Japanese version)
8 265266 Powder hose set, Ø 11x5000 mm; 0.43x196.85 inches
9 1 130215 Grounding cable, 10 m; 32.81 ft
