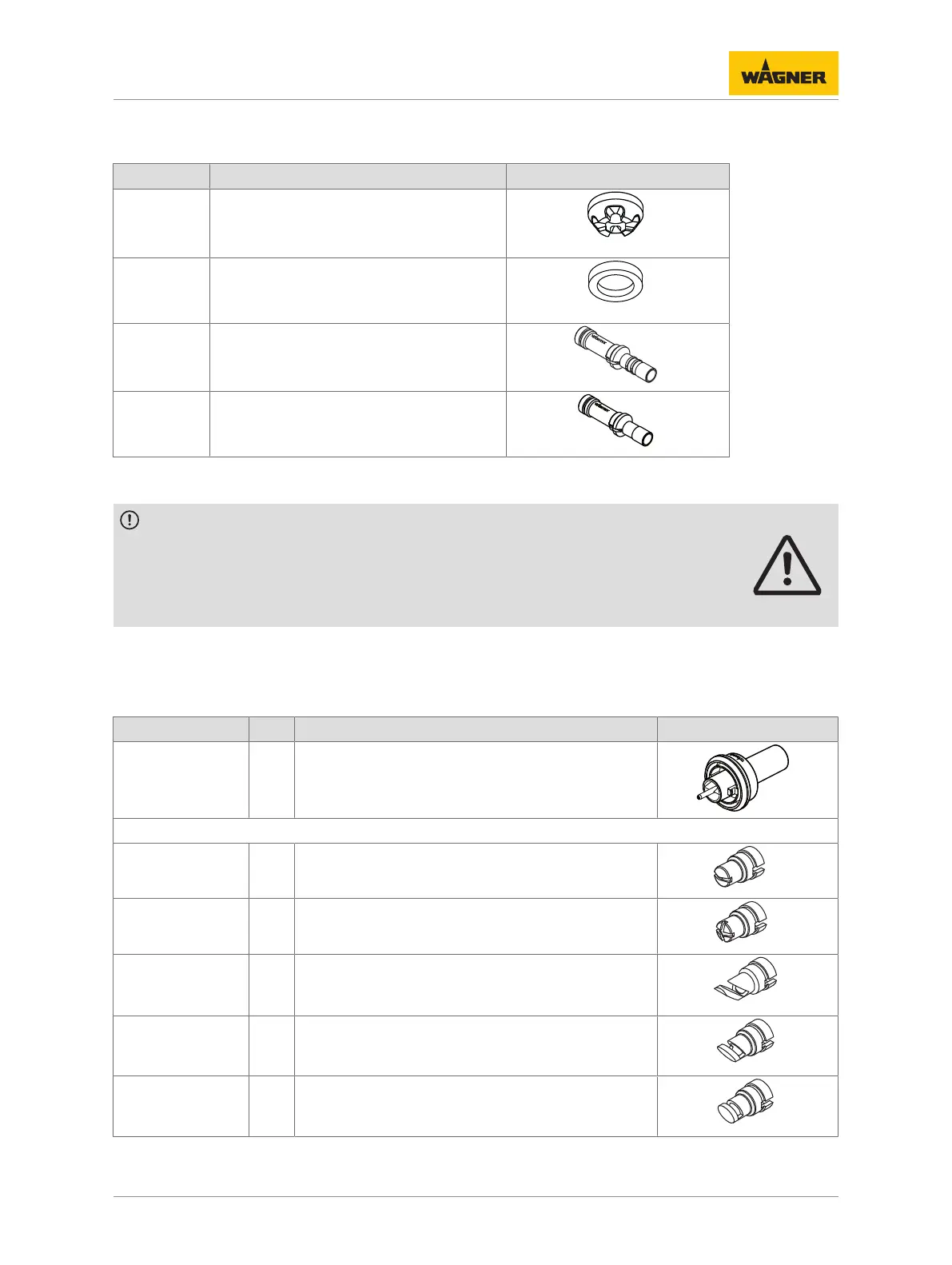

14 Wearing parts
Order number 2354920 | Edition 01/2023 71
14 WEARING PARTS
Order no. Designation
265401 Fluid crown of suction unit
P_00723
265402 Fluid ring of suction unit
P_00698
241225 Clearance collector nozzle of PI-F1 injector
P_00699
241229 Collector nozzle, ED pump
P_01826
14.1 NOZZLE SYSTEMS
NOTICE
Wrong combination of parts!
Powder can be deposited in gaps and lead to incorrect coatings due to paint carryover.
4 Only use the recommended combinations!
Only the following combinations can be used! Please note the respective color coding in
parentheses!
14.1.1 Flat Jet Nozzles System X1
Order no. K Designation
2429073
♦
X1 electrode holder, cpl. ET (white)
P_01691
Can be combined with:
2420243 ♦ X1 Flat jet nozzle, F1
P_04985
2428515 ♦ X1 cross nozzle, 90°
P_04987
2428283 ♦ X1 angular nozzle, 30°
P_04988
2428284 ♦ X1 angular nozzle, 45°
P_04989
2428285 ♦ X1 angular nozzle, 60°
P_04990
♦ = wearing parts
