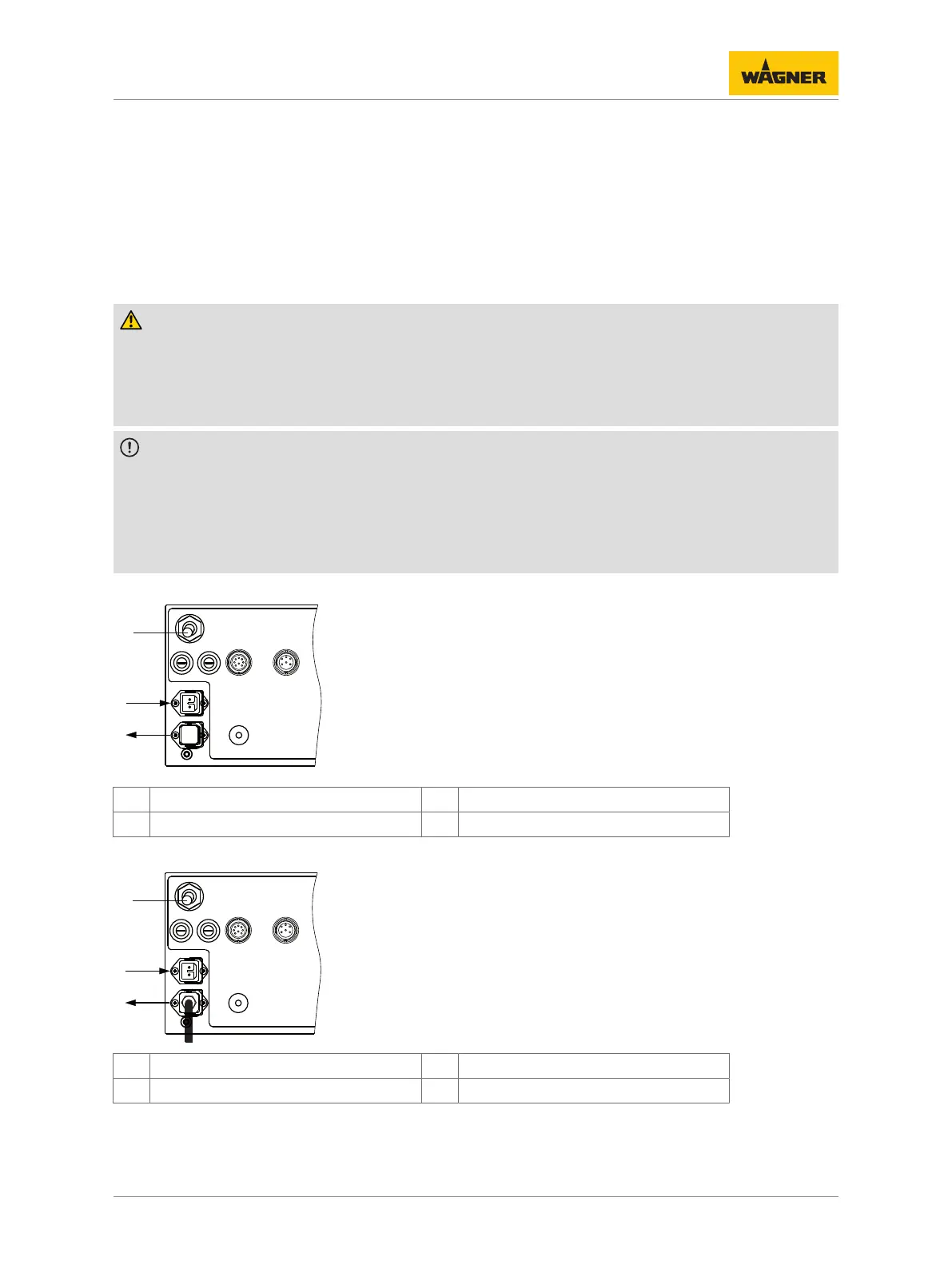

6 Assembly and Commissioning
Order number 2354920 | Edition 01/2023 27
6.5 CONNECTING THE MANUAL SYSTEM
The assembly of the manual powder system is the same for the Corona spray gun and for the
Tribo spray gun.
The manual system is equipped with a filter water separator (4) as a standard feature.
Nevertheless, a high compressed air quality is still required for safe operation of the system.
The plant operator is responsible for ensuring the required compressed air quality.
6.5.1 Connection requirements
DANGER
Danger from electric current!
Danger to life and equipment damage.
4 Switch off the main switch before connecting the system.
NOTICE
Missing cover
IP Code of device not guaranteed.
4 The mains output socket must remain closed in manual systems without vibrator
motor with the cover closed.
Without vibrator motor:
0
I
P_02717
1
2
3
1 Main switch 3 Mains output terminal, attach cover
2 Mains input terminal
With vibrator motor:
P_02638
1
0
I
2
3
1 Main switch 3 Output to vibrator motor
2 Mains input terminal
