Wavecom TnP Prime User Manual

34
TnP Prime User Manual Wavecom
Loading the media
Loading media into the TT-040-50 Printer is quick and easy. To begin, open the printer top cover by pulling the tabs
located on each side towards the front of the printer, and then lift the top cover to the maximum open angle.

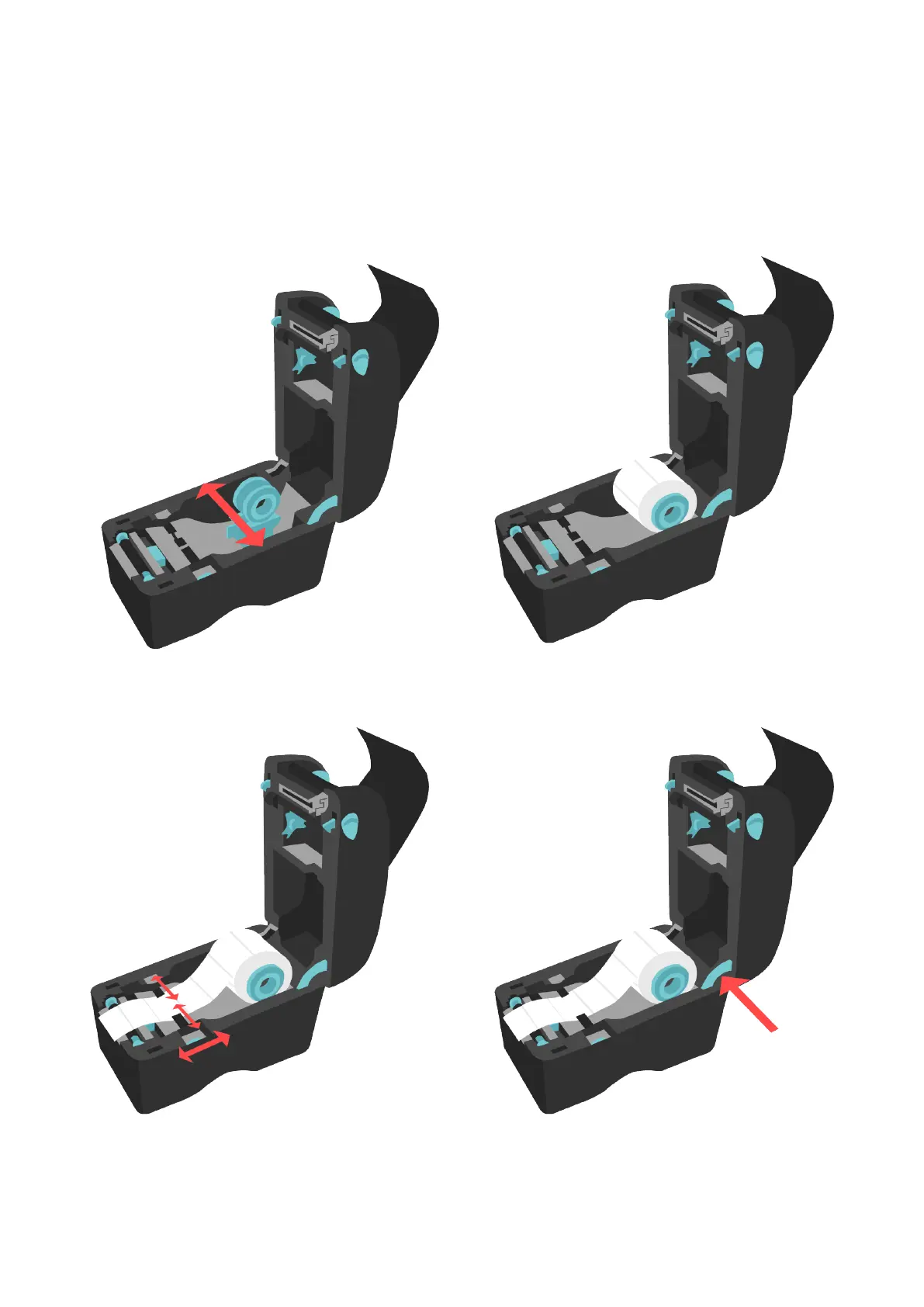

1. Separate the Label Holders by gently
pulling them in opposite directions
2. Insert the media between the label holders as
shown
3. Using the Media Guide Adjuster Knob,
adjust the Media Guide until it is flush but
not tight against the media.
4. To shut the printer, push the support hinge in,
then gently shut the printer, ensuring it latches
shut. Press the Feed button on the printer before
printing, to ensure the tag is printed correctly.
