Intelligent Fast-Charging System
GSE O&M for DVS300 / 330 / 330 IP55 / 400 and MVS330/400
31504-03-0101 Webasto Charging Systems, Inc.16
4.2 – Only for MVS Setups: Conguring the Main Station and Support Stations.
The MVS Intelligent Fast-Charging System is very exible. It requires each new installation to be congured for
the total number of power stations in the system.
1. Install the system.
2. Set the maximum port current conguration for each of the power stations. Each power station contains
a control board that is mounted on the inside surface of the door (Figure 4).
3. Remove the three Phillips screws on the right-hand side of the power station door to open the door.

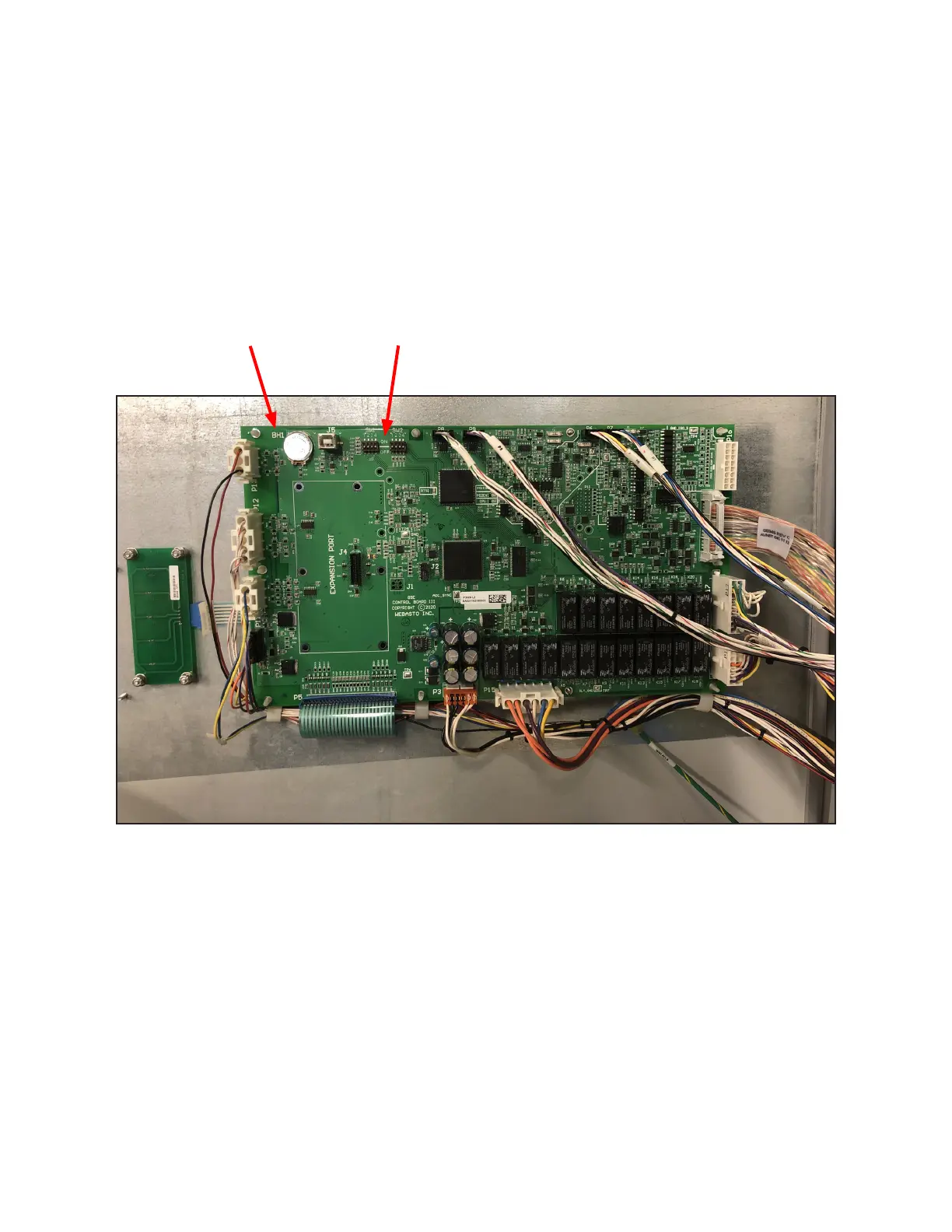

Figure 4 – Power Station Control Board Location
Control Board DIP Switch Bank
To Next Page
