EGH Gas-firEd boilErs — sEriEs 4 — boilEr manual

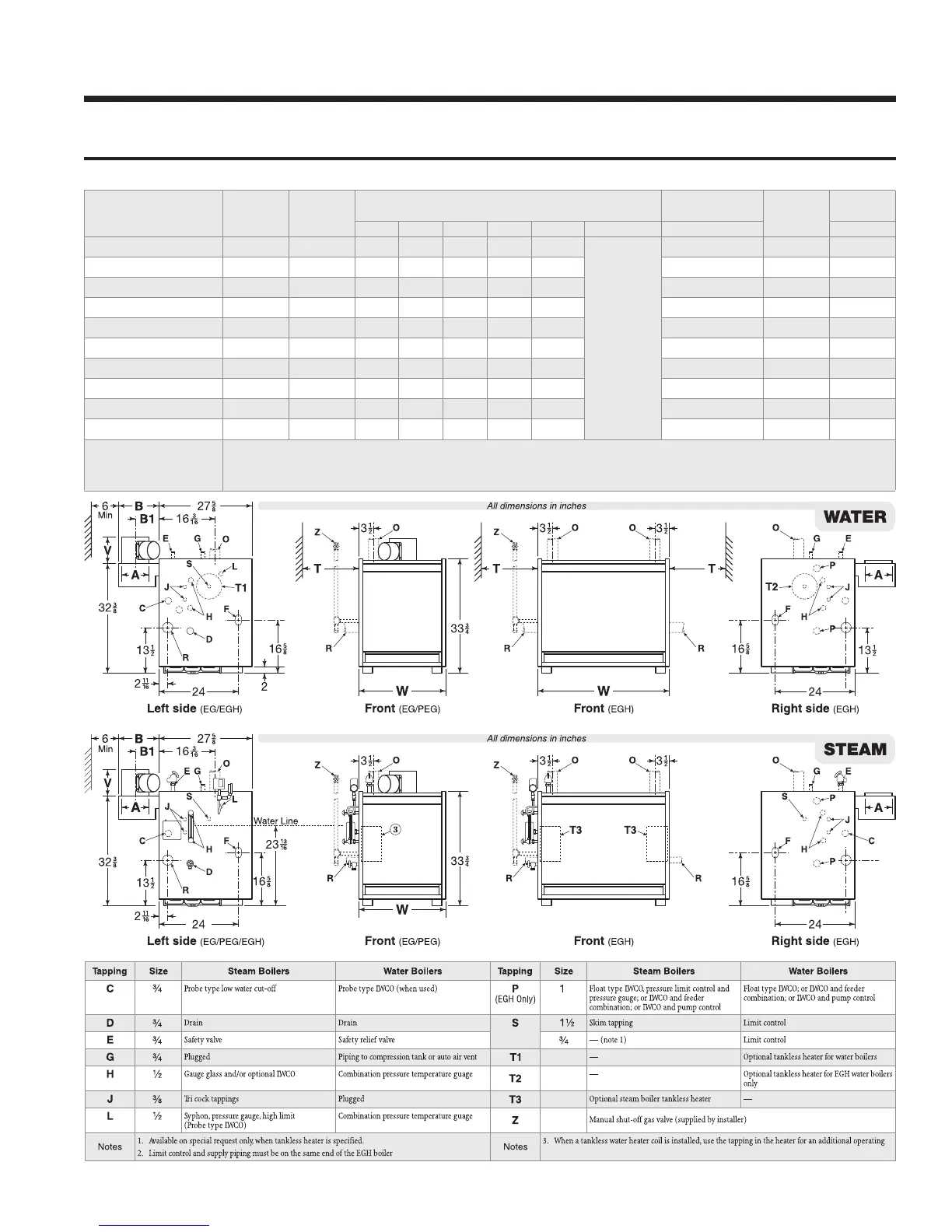

Dimensional data
Boiler
number
Supply
EG/EGH
Return
EG/EGH
Dimensions
(See note 3 for PEG-30 to PEG-55 crate dimensions)
Gas connection
“F”
Draft hood
outlet size
Approx.
ship. wt.
W A B B1 V (note 2) T
(note 1)
(lbs.)
EG & PEG-30 & -35 1 - 3” 1 - 2 ¹⁄₂” 17” 5” 11 ¾” 6 ¾” 6” Water boiler
tankless coil
removal
clearance:
E-624: 14”
E-626: 18”
E-632: 22”
¹⁄₂” 5” 430
EG & PEG-40 & -45 1 - 3” 1 - 2 ¹⁄₂” 21¹⁄₄” 6” 11 ¾” 6 ¾” 6¹⁄₂” ¹⁄₂” 6” 505
EG & PEG-50 & -55 1 - 3” 1 - 2 ¹⁄₂” 25¹⁄₂” 7” 11 ¾” 6 ¾” 9 ¹⁄₂” 7” 585
EG & PEG-65 1 - 3” 1 - 2 ¹⁄₂” 29 ³⁄₄” 8” 11 ¾” 6 ¾” 9¹⁄₂” ³⁄₄” 8” 660
EG-75 1 - 3” 1 - 2 ¹⁄₂” 34” 8” 15 ¾” 8 ¾” – ³⁄₄” 8” 735
EGH-85 2 - 3” 2 - 2 ¹⁄₂” 38 ¹⁄₄” 9” 15 ¾” 8 ¾” – ³⁄₄” 9” 825
EGH-95 2 - 3” 2 - 2 ¹⁄₂” 42 ¹⁄₂” 10” 15 ¾” 8 ¾” – ³⁄₄” 10” 915
EGH-105 2 - 3” 2 - 2 ¹⁄₂” 46 ³⁄₄” 10” 15 ¾” 8 ¾” – 1” 10” 1005
EGH-115 2 - 3” 2 - 2 ¹⁄₂” 51” 12” 15 ¾” 8 ¾” – 1” 12” 1095
EGH-125 2 - 3” 2 - 2 ¹⁄₂” 55 ¹⁄₄” 12” 15 ¾” 8 ¾” – 1” 12” 1185
Notes: 1. Sizes shown are gas connection sizes, natural or propane gas. Gas piping from meter to boiler to be sized according to local utility requirements. Gas
line can enter through either the right or left end of the boiler.
2. Damper dimension for EG-30 through EG-65 ONLY. For EG-75 and all EGH the damper is additional equipment.
3. PEG crates are 32” wide by 39” high. Crate lengths are: 32” for PEG-30, -35, -40; 37” for PEG -45, -50, -and -55; 39” for PEG-65.
Table 15 Dimensional data
