Installation and operating instruction
Gas burner WG20…/1-C LN
7 Commissioning
83240802 1/2020-01 La
42-96
7.2 Adjusting the burner
DANGER
Risk of electric shock
Touching the ignition device can lead to electric shock.
Do not touch ignition device during the ignition process.
During commissioning check:
flame signal [ch.7.1.1],
mixing pressure [ch.7.1.6].
1. Check sequence of operation
Open gas isolating valve.
Pressure in gas valve train increases.
Close isolating valve.
Switch on voltage supply.
Illuminated push button lights up red.
Press illuminated push button for 1 second.
Burner starts in accordance with the programme sequence [ch.3.3.4].
Check sequence of operation:
Valves open.
Gas pressure switch reacts.
Burner start is interrupted.
Low gas programme starts, the illuminated button flashes red.
2. Adjust setting pressure

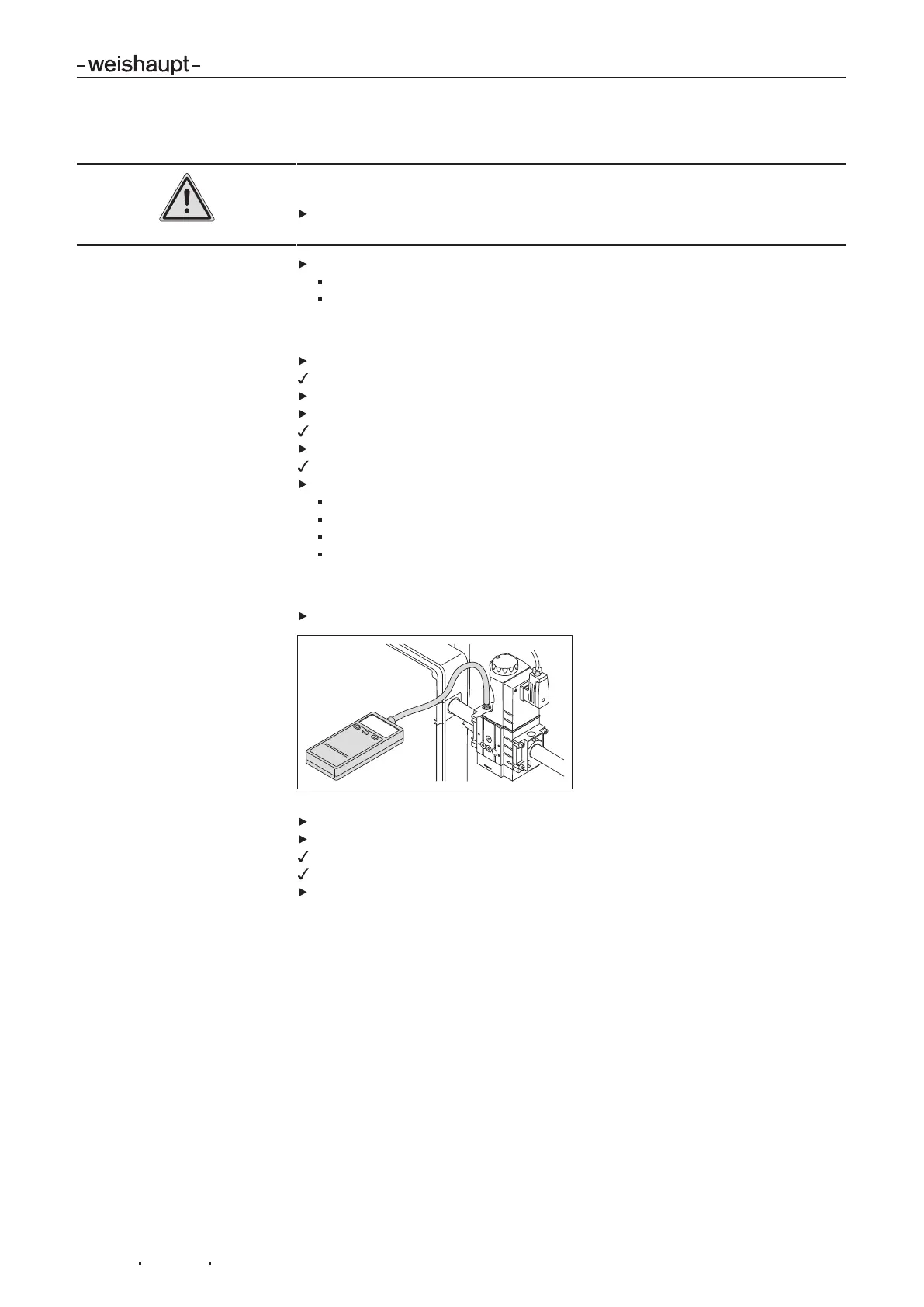

Open test point for setting pressure and connect pressure measuring device.
Open gas isolating valve.
Press illuminated push button of combustion manager
Low gas program is reset.
Burner starts in accordance with the programme sequence.
Preset setting pressure determined at multifunction assembly [ch.7.1.5].
